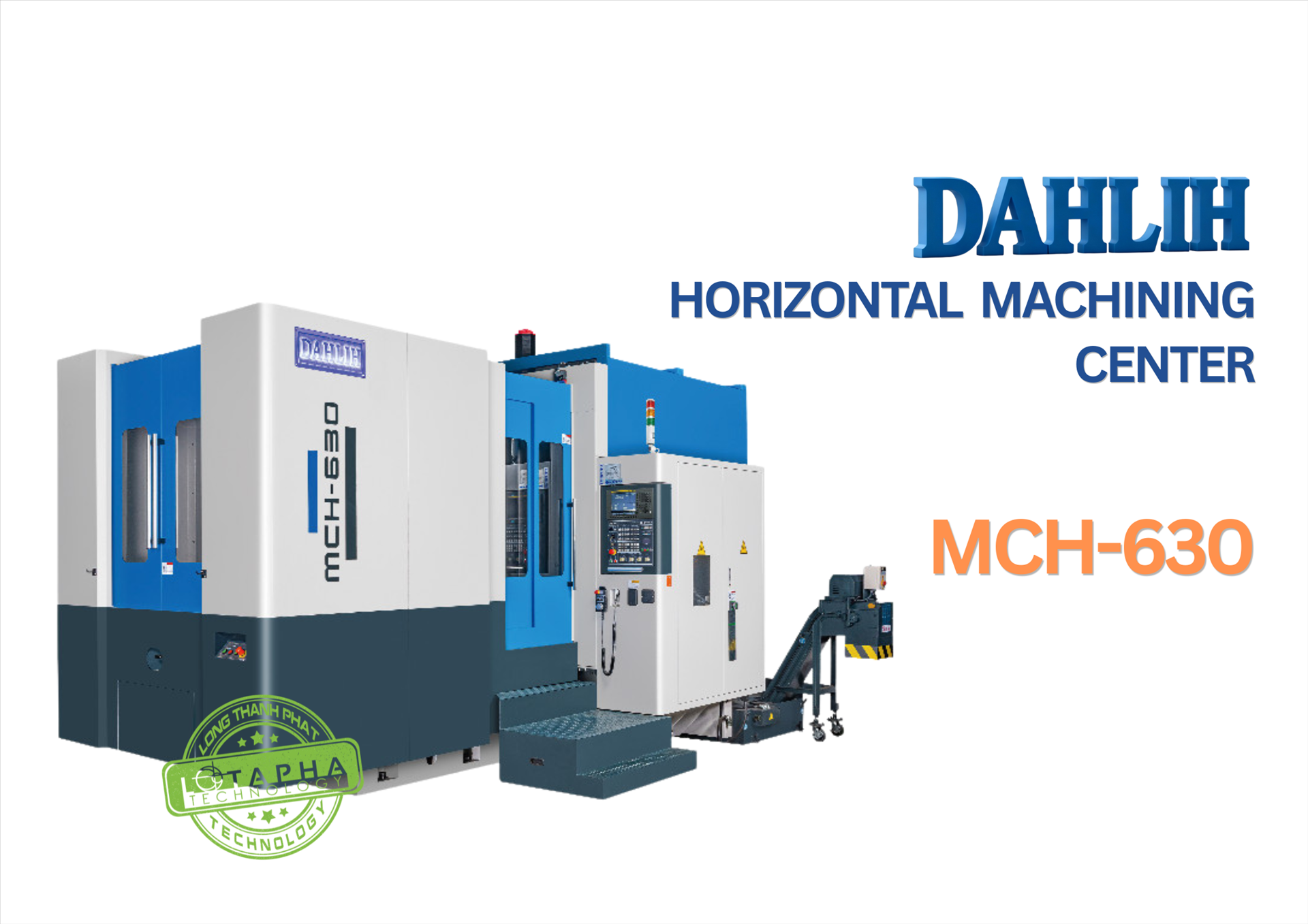

Máy trung tâm gia công CNC trục ngang | MCH - 630 | DAHLIH

THÔNG SỐ KỸ THUẬT

MODEL	MCH-630
TABLE

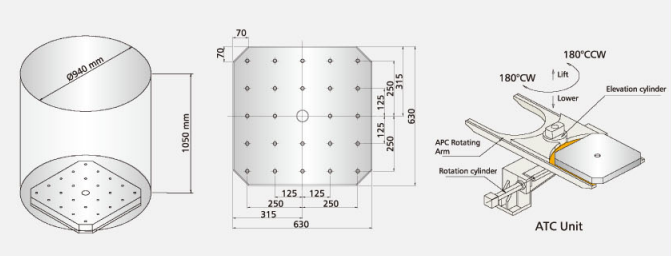

Pallet dimensions	630x630 mm
Min. indexing angle	1° (0.001°)
Max. table load	1000 kg
TRAVEL
Longitudinal travel (X)	1000 mm
Vertical travel (Y)	800 mm
Cross travel (Z)	800 mm
Distance of spindle end to table center	160-960 mm
Distance from spindle center to table surface	100-900 mm
SPINDLE
Spindle nose	BT50
Spindle speeds	60-6000 rpm
Spindle speed range	Two gears variable
FEED
Cutting feed	1--8000 mm/min
Rapid traverse	24 m/min
Min. input increment	0.001 mm
ATC (Automatic Tool Changer)
Tool storage capacity	60
Max. tool (dia. x length)	ø110 x 400 mm
Max. tool weight	20 kg
Tool selection	Random
MOTORS
Spindle motor (rated output for 30 minutes)	18.5 kw (25HP)
Drive motors
X/ Y/ Z axis	4/ 7/ 4 kw (5.3/ 9.3/ 5.3 HP)

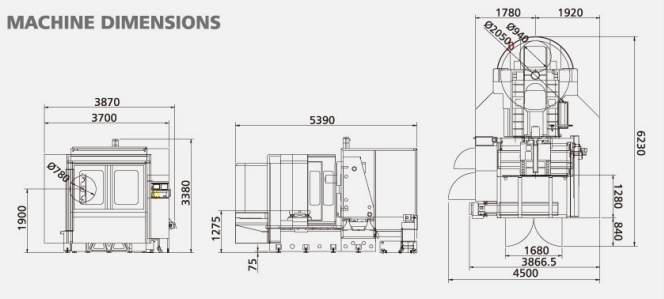

MACHINE SPACE AND WEIGHT
Floor space	4500 x 6230 mm
Machine weight	18000 kg

LINH KIỆN TIÊU CHUẨN
1. Spindle Cooling Device
2. Heat Exchanger
3. Automatic Pallet Changer with Manial Rotation
4. Removable Type Manual Pulse Generator
5. X.Y.Z. Linear Scale
6. Flood Coolant Device
7. Coolant Tank
8. Spiral Type Chip Conveyors
9. Spindle Load Meter
10. Automatic Power Cut-off Device
11. Call Light
12. Work Light
13. Tool Kit
14. Flat Type Chip Conveyor

LINH KIỆN TÙY CHỌN
1. ATC Tool Storage: 90
2. Coolant System: Shower Coolant, Coolant Gun
3. Chip Wagon
4. Automatic Centering Device
5. Tool Breakage Detection Device
6. Tool Length measuring Device
7. Tool Presetter
8. Additional Call Light
9. Buzzer Device
