Máy trung tâm gia công CNC trục đứng | MCV-1450/1450B | DAHLIH

THÔNG SỐ KỸ THUẬT


MODEL	UNIT	MCV-1450

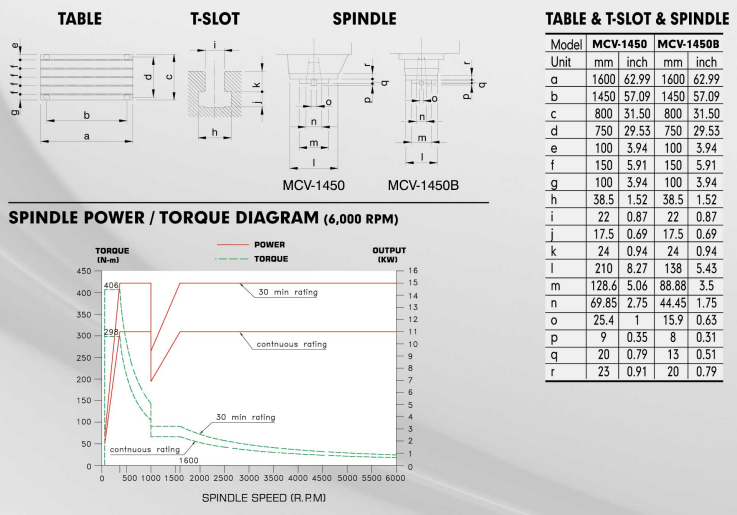

TABLE
Working Surface	mm (inch)	1600 x 800 (62.99 X 31.5)
T-Slots (Size x Number)	mm (inch)	22 x 5 (0.87 x 5)
Max. Table Load	kgw (lbs)	2000 (4400)
TRAVEL
Longitudinal Travel (X)	mm (inch)	1450 (57.09)
Cross Travel (Y)	mm (inch)	750 (29.53)
Headstock Travel (Z)	mm (inch)	750 (29.53)
Distance Between Spindle End and Table Top	mm (inch)	200-950 (7.87-37.4)
Distance Between Spindle Center and column Surface	mm (inch)	850 (33.46)
SPINDLE
Spindle Nose		N.T.50
Spindle Speeds	R.P.M	6000
Spindle Speed Range		Two Gears Variable
FEED
Cutting Feed	mm/min (inch/min)	10000 (393.7)
Rapid Traverse	m/min (inch/min )	20/20/12 (787/787/472)
Minimum Input Increment	mm (inch)	0.001 (0.0001)
ATC (Automatic Tool Chnager)
Tool Holder		BT50
Tool Storage Capacity	Tools	30
Max. Tool Dia. x Length	Ø x mm (inch)	105 x 300 (4.1 x 11.8)
Max. Tool Weight	kgw (lbs)	15 (33)
Max. Tool Dia. of adjacent pots are empty	Ø x mm	200
Tool Selection		Random
MOTORS
Spindle Drive    Continuous Rating	Kw (HP)	11 (15)
Motor                 Rated Output for 30 Minutes	Kw (HP)	15 (20)
Drive Motors      X, Y, Z Axis	Kw (HP)	4.0 (5.4), 7.0 (9.4), 3 (4)

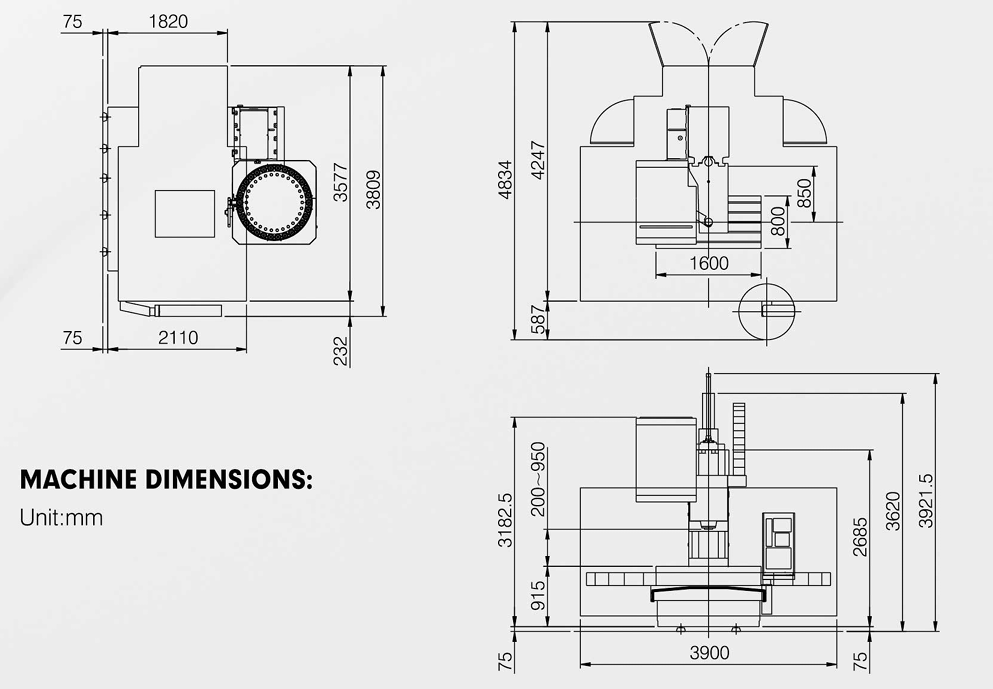

MACHINE WEIGHT SPACE AND PACKING
Floor Space	mm (inch)	5330 x 4150 (209.84 x 163.39)
Net weight	Kgw (lbs)	14500 (33880)

LINH KIỆN TIÊU CHUẨN
1. Heat Exchenger
2. Removable Manual Pulse Generator
3. Coolant Around Spindle
4. Spiral Type Chip Conveyor
5. Semi-enclosed Splash Guard
6. RS-232 Interface
7. Automatic Power Off
8. Call Light
9. Automatic Lubrication Equipment
10. Work light
11. Tool Kit
12. Space Fuses
13. Spindle Cooler
14. Rigid Tapping

LINH KIỆN TÙY CHỌN
1. Enclosed Splash Guard
2. Flat Type Chip Conveyor and Chip Wagon
3. Rotary Table With 4^th Axis Control
4. 4^th Axis Connector
5. Coolant Through Tool
6. Coolant Through Spindle With Filter
7. Coolant Wash
8. Automatic Tool Length Measuring Device
9. Automatic Centering Device (Renishaw MP-10)
10. Cam Mechanism ATC (40 Tools)
