Máy trung tâm gia công CNC trục đứng | MCV-860 | DAHLIH

THÔNG SỐ KỸ THUẬT

MODEL	MCV-860
TABLE
Table work surface area (X, Y axis)	950 x 550 mm
T-Slots (Size x Number x Centers)	18 x 3 x 150 mm
Max. workpiece weight	800 kg
TRAVEL
XxX axis/ YxY axis/ ZxZ axis	860/550/550 mm
Table top surface to spindle nose	150 ~ 700 mm
Distance between spindle center and colum surface	600 mm
Hollow ballscrew with cooling system	-
Slideway type (X, Y & Z axis)	Linear Guideway
FEED
Rapid traverse rate X/Y/Z axis	40/40/30 m/min
Cutting feed rate	10000 mm/min
Minimum Input Increment	0.001 mm
SPINDLE
Spindle holder	Belt-type
Spindle motor (30 min.rating/continuous rating)	11kW (14.7HP) / 7.5kW (10HP)
Type of tool shank	N.T.40
Spindle speed	8000 rpm
Spindle bearing bore diameter	Ø70 mm
Spindle max.torque	47.7N-m
Cooling/ Lubrication	Oil/ Grease
A.T.C
Tool magazine capacity	24T
Tool holder	BT40
Pull stud	Jaw Type 45° Pull Head
Max. tool length	7 kg
Max. tool length	300 mm
Max. tool Dia.	Ø76 (150) mm
Tool selection	Random
MOTORS
X/ Y/ Z axis drive motors	3/3/4 kW (4/4/5.3 HP)
OTHER
Power	36KVA
Pneumatic pressure	6 kg/cm2
Cutting pump	3/4HP
Coolant tank capacity	300L
Net weight	5400kgf

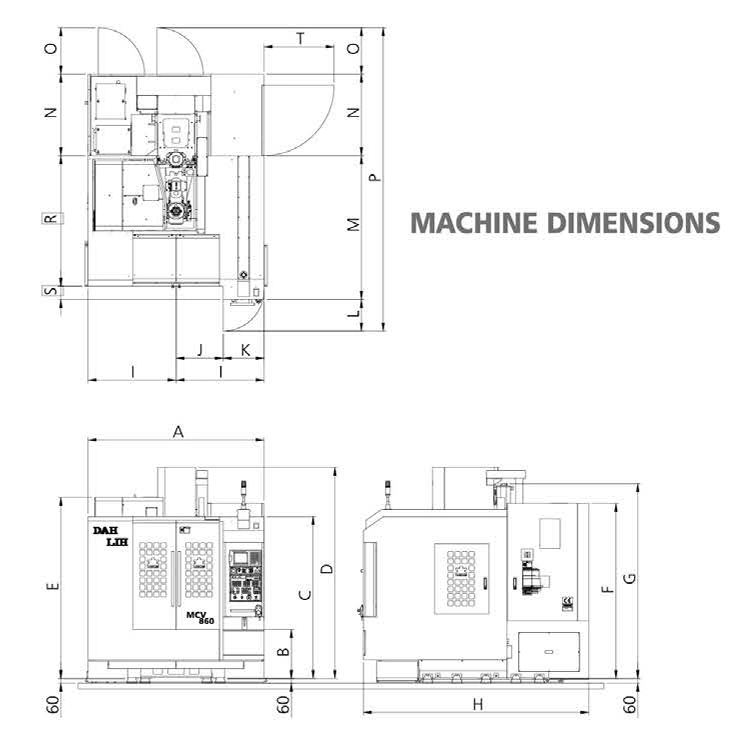

Floor space	2260 x 2900 mm

LINH KIỆN TIỂU CHUẨN
1. Heat Exchanger
2. Removable Manual Pulse Generator
3. Enclosed Splash Guard
4. RS-232 Interface
5. Automatic Power Off
6. Call Light
7. Automatic Lubrication Equipment
8. Work Light
9. Tool Kit
10. Spare Fuses
11. Swing Type Operator panel
12. Spindle Oil Cooler
13. Tools Cam Type ATC
14. Rigid Tapping
15. Chip Augers On Base

LINH KIỆN TÙY CHỌN
1. Scew Type Chip Conveyor With Chip Bins
2. Flat Type Chip Conceyor and Chip Bin
3. 4^th Axis Control And Rotary Table
4. Bed Coolant Wash
5. Automatic Tool Length Measuring Device
6. Automatic Centering Device (Renishaw MP-10)
7. Linear Scale
8. 30, 32, 40 Tools Cam Type ATC
9. 12000 rpm/15000 rpm direct drive spindle
10. 15000 rpm built-in spindle
