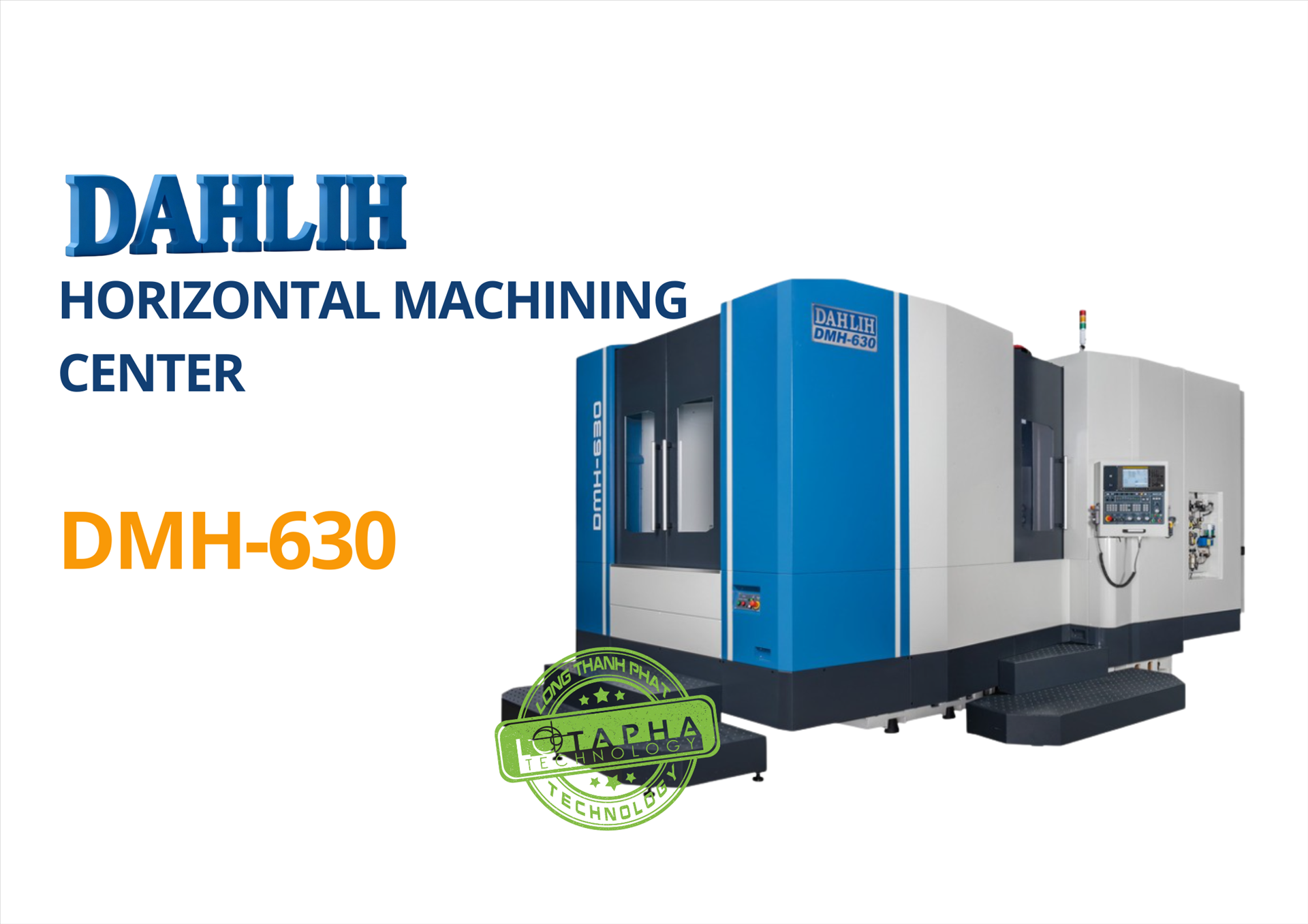

Máy trung tâm gia công CNC trục ngang | DMH-630 | DAHLIH

THÔNG SỐ KỸ THUẬT

MODEL	DMH-630
TABLE
Pallet area	630 X 630 mm
Max. table load	1200 kg
Min. indexing angle	1°
Pallet change type	Swing type
TRAVEL
Longitudinal travel (X)	1000 mm
Vertical travel (Y)	900 mm
Cross travel (Z)	900 mm
Distance from spindle nose to table surface	200~1100 mm
Distance from spindle center to table surface	80~980 mm
FEED
Cutting feed rates	1~18000 mm/min
Rapid traverse rate	40 m/min
Min. input increment	0.001 mm
SPINDLE
Spindle nise taper	N.T.50
Spindle speeds	100~ 10000 rpm
Spindle motor	α22 / 10,000i
ATC (AUTO TOOL CHANGER)
Tool shank	60 tools
Tool storage capacity	BT50
Max. tool sizes (dia. x length)	Ø120 x 500 mm
Max. tool weight	20 kg
Max. tool dia. (without adjacent tool)	Ø250 mm
Tool selection method	Bi- Directional
MOTOR
Spindle motor (Rated output for 30 min.)	22 kw (30hp) / 26 kw(35hp)
Servo Motor X/Y/Z-axis	7/7/7 Kw
MACHINE SPACE AND WEIGHT
Floor area occupied	3700 x 6300 mm
Machine weight	23500 kg
