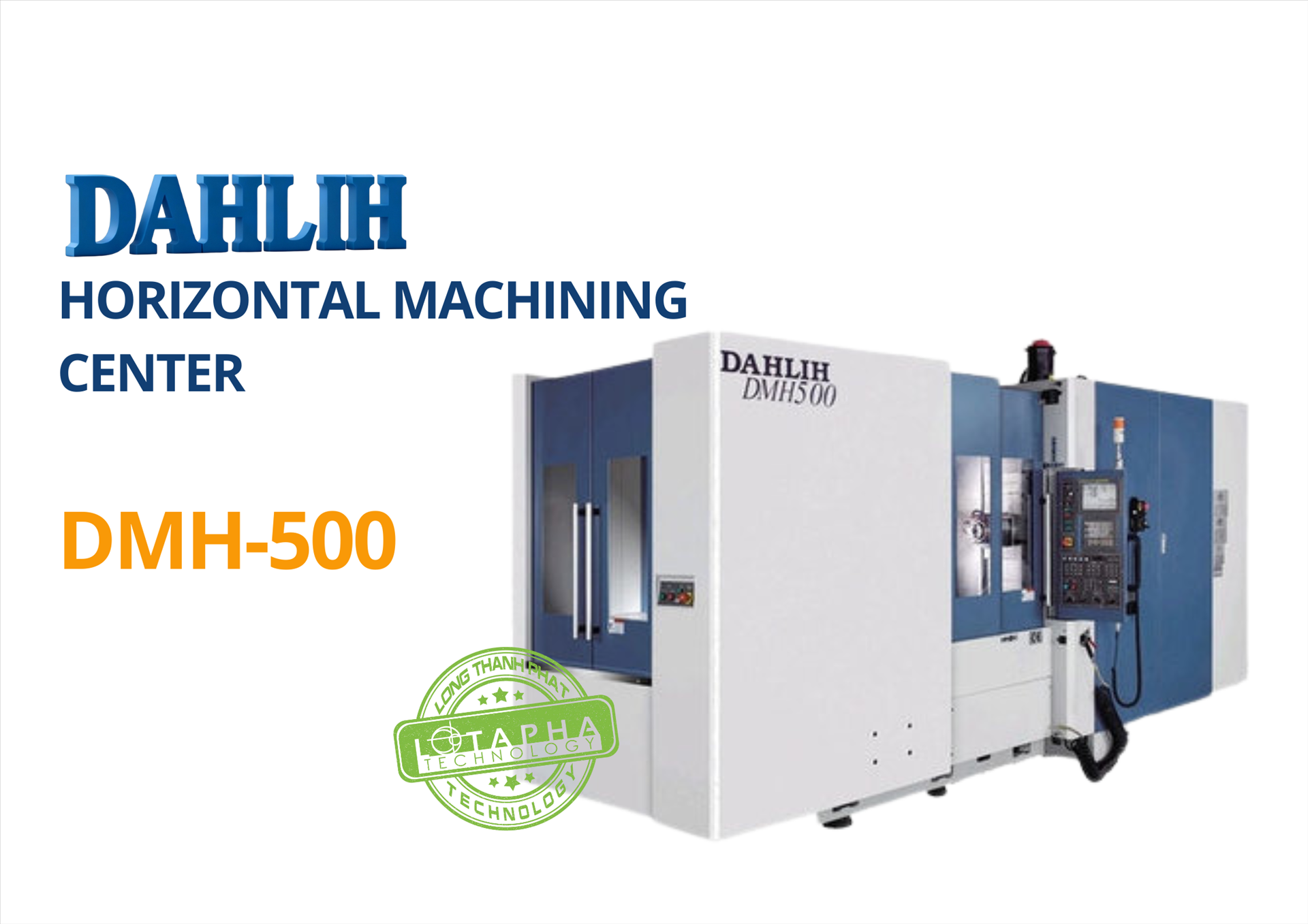

Máy trung tâm gia công CNC trục ngang | DMH-500 | DAHLIH

THÔNG SỐ KỸ THUẬT


MODEL	DMH-500
TABLE
Pallet Dimensions	500x500 mm
Min. Indexing Angle	1°
Max. Table Load	600 kgS
TRAVEL
Longitudinal Travel (X)	750 mm
Vertical Travel (Y)	680 mm
Cross Travel (Z)	650 mm
Distance of Spindle End to Table Center	150 - 800 mm
Distance of Spindle Center to Table Surface	50 - 730 mm
SPINDLE
Spindle Nose	N.T.40 / N.T.50
Spindle Speeds	120-12000 (#40/100-10000) (#50)
FEED
Cutting Feed	1-10000 mm/min
Rapid Traverse	40m/min
Min. Input Increment	0.001 mm
ATC (Automatic Tool Changer)
Tool Shank	B.T.40 / B.T.50
Tool Storage Capacity	40 Tool
Max.Tool (diam.x Length)	Ø100 x 400 mm
Max. Tool Weight	8 kgS
Tool Selection	Random
MOTORS
Spindle Motor (Rated Output for 30 Minutes)	#40 11kw (15HP)/ #50 18.5 kw (25HP)
Drive Motors                           X/Y/Z-axis	4.0/4.0/ 4.0kw (5.4HP)

STANDARD
1. Spindle cooling device
2. Heat exxchanger
3. Automatic pallet changer with manual rotation
4. Removeble manual pulse generator
5. X, Y, Z linear guide ways
6. Flood coolant device
7. Coolant tank
8. Spiral type chip auger
9. Automatic power cut-off device
10. Call light
11. Work lght
12. Tool kit
13. Flat type chip conveyor

OPTION
1. ATC tool storage: 60/90
2. Coolant through spindle
3. BT40/ 15,000rpm direct drive spindle
4. Continuous rotation B-Axis 0.001°
5. Laser auto tool measuring device (Non-contact)
6. Automatic centering device
