FOR CNC TURNING CENTER & TURN MILL CENTER

Chi tiết

VDI TECHNOLOGY
  • The VDI system is a quick change clamping systems for each tool holder within the tool dics.
  • Tool changes can therefore be performed within seconds, rather than minutes as with the traditional block system.


FEATURES
  • VDI tool holders are made as per DIN 69880
  • Tool holders are made by toughened steel C-45 as well as case hardned steel 20MnCr5.
  • Our standard supply will be in toughened steel C-45 for form A, B, C, D, E1, E2 & Z varieties.
  • Case hardened steel 20MnCr5 for form E4 & F varieties.
  • Our standard tool holder are fully blackened.
  • Shank white, teeth white, tool holder seating surface white will be given on request.

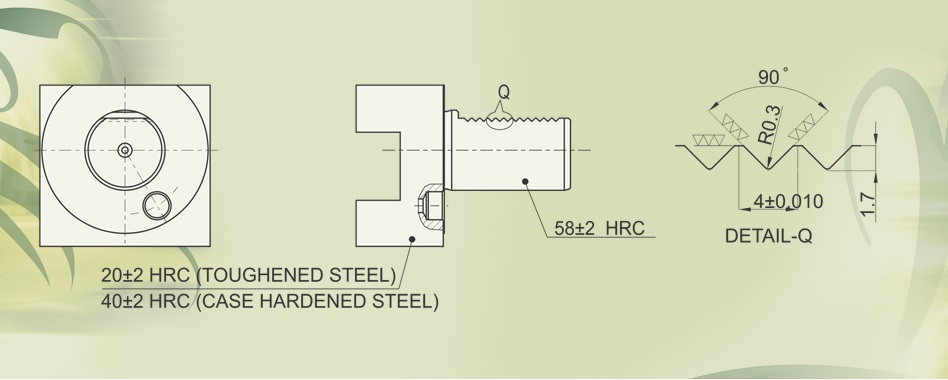

  • The tool holder shank portion are heat treated to 58+-2 HRC, and the teeths are ground.

SELECT OF VDI TOOL HOLDER

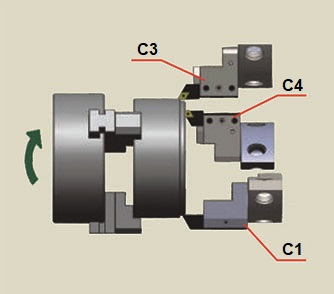

  Spindle Rotation clockwise application of OD Turn and Face   Spindle Rotation clockwise application of Face and ID Bore


  Spindle Rotation Anticlockwise application of OD Turn and Face   Spindle Rotation Anticlockwise application of Face and ID Bore



SPECIFICATION

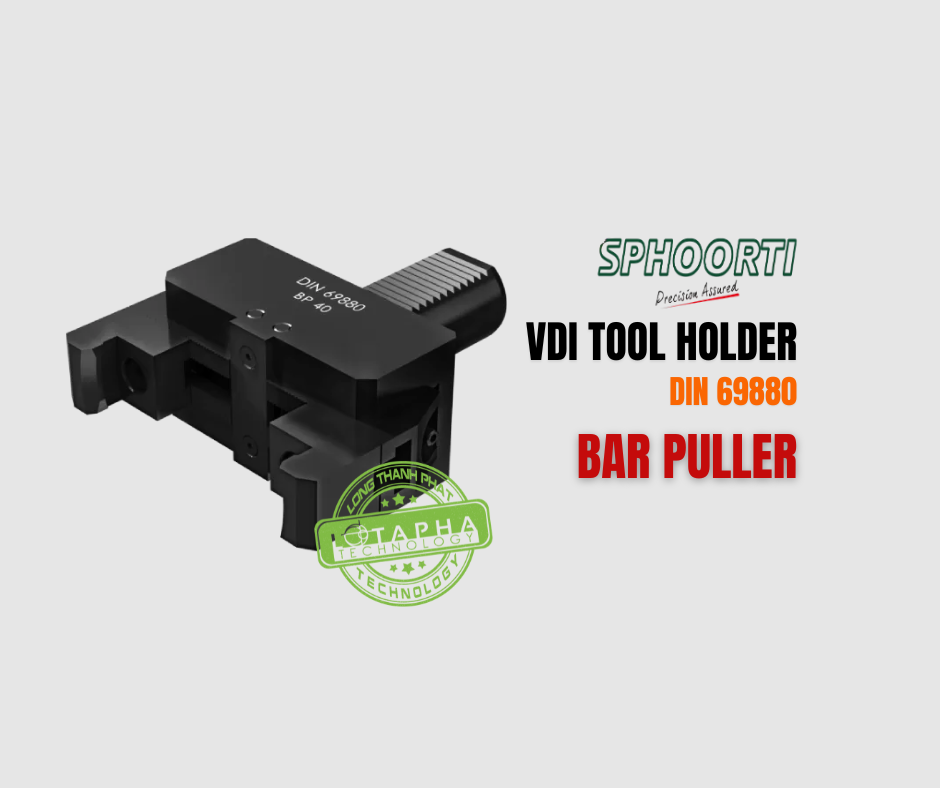

Bar Pullers – VDI Tool Holder
CODE D1 RANGE B1 B2 h1 l1 l2 l3
d2 – d3 d2 – d3
SHORT JAWS LONG JAWS
BP 20 20 8-60 54-110 50 28 72 84 16 51
BP 20C 20 8-60 54-110 50 28 72 84 16 51
BP 25 25 8-60 54-110 50 28 72 84 16 51
BP 25C 25 8-60 54-110 50 28 72 84 16 51
BP 30 30 8-60 54-110 50 28 72 92 16 59
BP 32C 32 8-60 54-110 50 28 72 92 16 59
BP 40 40 8-66 54-110 60 28 110 94 16 61
BP 40C 40 8-66 54-110 60 28 110 94 16 61
BP 50 50 8-75 60-125 65 28 130 114 16 81
BP 50C 50 8-75 60-125 65 28 130 114 16 81
