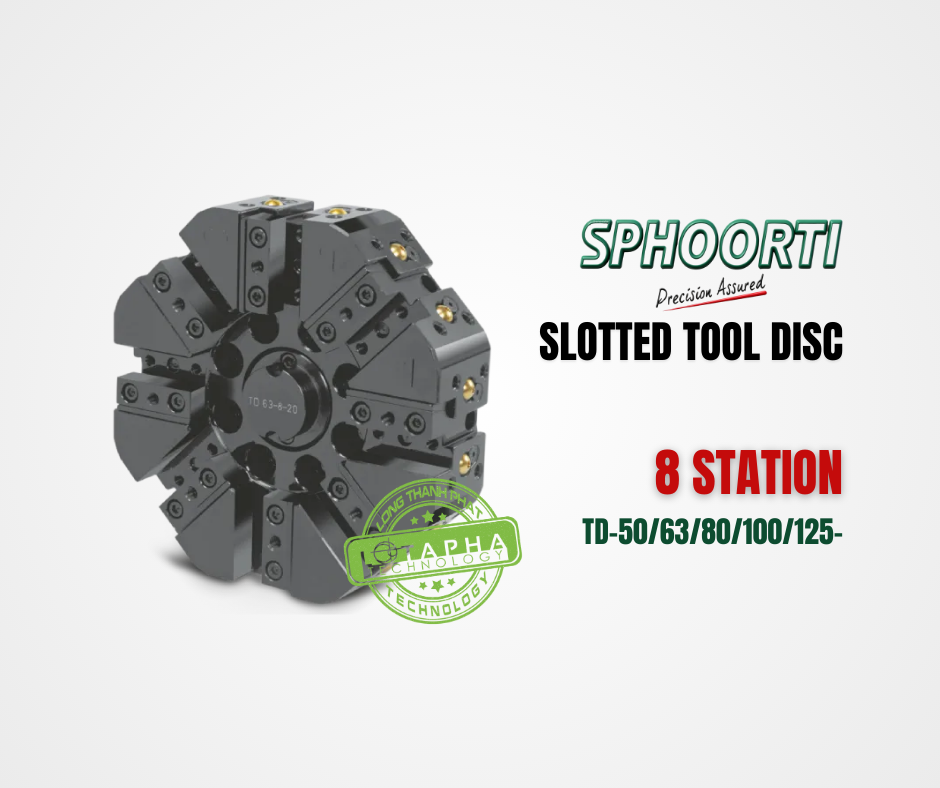

SPHOORTI | SLOTTED TOOL DISC | 8 STATION

Mô tả

Chi tiết

CODE	A_{(TOOL SIZE)}	B	C	ΦD	~ΦE	ΦF	ΦG	ΦH_Max	Y	TURRET TYPE
TD-50-8-12-150	12	150	44	213	192	25	70	20	-	PRAGATI BTP-50, Duplomatic-BSV-N-100, Baruffaldi-TOE-100, Sauter-05-480-510
TD-50-8-16-180	16	180	52	252	238	25	70	25	-	PRAGATI BTP-50, Duplomatic-BSV-N-100, Baruffaldi-TOE-100, Sauter-05-480-510
TD-50-8-20-180	20	180	54	285	248	25	70	32	-	PRAGATI BTP-50, Duplomatic-BSV-N-100, Baruffaldi-TOE-100, Sauter-05-480-510
TD-50-8-20-200	20	200	54	305	280	25	70	32	-	PRAGATI BTP-50, Duplomatic-BSV-N-100, Baruffaldi-TOE-100, Sauter-05-480-510
TD-63-8-16-200	16	200	52	272	256	30	90	25	-	PRAGATI BTP-63, Duplomatic-BSV-N-120, Baruffaldi-TOE-120, Sauter-05-480-512
TD-63-8-20-220	20	220	61	325	294	30	90	32	-	PRAGATI BTP-63, Duplomatic-BSV-N-120, Baruffaldi-TOE-120, Sauter-05-480-512
TD-63-8-20-224-12	20	224	61	332	281	30	90	32	12	PRAGATI BTP-63, Duplomatic-BSV-N-120, Baruffaldi-TOE-120, Sauter-05-480-512
TD-63-8-20-250	20	250	61	355	320	30	90	32	-	PRAGATI BTP-63, Duplomatic-BSV-N-120, Baruffaldi-TOE-120, Sauter-05-480-512
TD-63-8-25-234	25	234	61	353	304	30	90	40		PRAGATI BTP-63, Duplomatic-BSV-N-120, Baruffaldi-TOE-120, Sauter-05-480-512
TD-80-8-20-250	20	250	61	355	324	40	120	32	-	PRAGATI BTP-80, Duplomatic-BSV-N-160, Baruffaldi-TOE-160, Sauter-05-480-516
TD-80-8-25-240	25	240	81	359	326	40	120	40	-	PRAGATI BTP-80, Duplomatic-BSV-N-160, Baruffaldi-TOE-160, Sauter-05-480-516
TD-80-8-25-250	25	280	81	399	366	40	120	40	-	PRAGATI BTP-80, Duplomatic-BSV-N-160, Baruffaldi-TOE-160, Sauter-05-480-516
TD-100-8-25-304	25	304	81	423	384	50	145	40	-	PRAGATI BTP-100, Duplomatic-BSV-N-200
TD-100-8-25-350	25	350	81	489	420	50	145	40	-	Baruffaldi-TOE-200, Sauter-05-480-520
TD-100-8-25-350	32	350	96	503	440	50	145	50	-	Baruffaldi-TOE-200, Sauter-05-480-520
TD-125-8-25-350	25	350	81	470	430	63	182	40	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-125-8-25-380	25	380	81	499	460	63	182	40	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-125-8-32-350	32	350	96	503	430	63	182	50	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-125-8-32-380	32	380	96	532	470	63	182	50	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-125-8-32-436	32	436	96	588	525	63	182	50	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-125-8-40-400	40	400	96	541	500	63	182	50	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-160-8-32-480	32	480	126	632	560	80	220	50	-	PRAGATI BTP-160, Duplomatic-BSV-N-320, Baruffaldi-TOE-320, Sauter-05-480-532
TD-160-8-40-480	40	480	126	643	616	80	220	60	-	PRAGATI BTP-160, Duplomatic-BSV-N-320, Baruffaldi-TOE-320, Sauter-05-480-532
