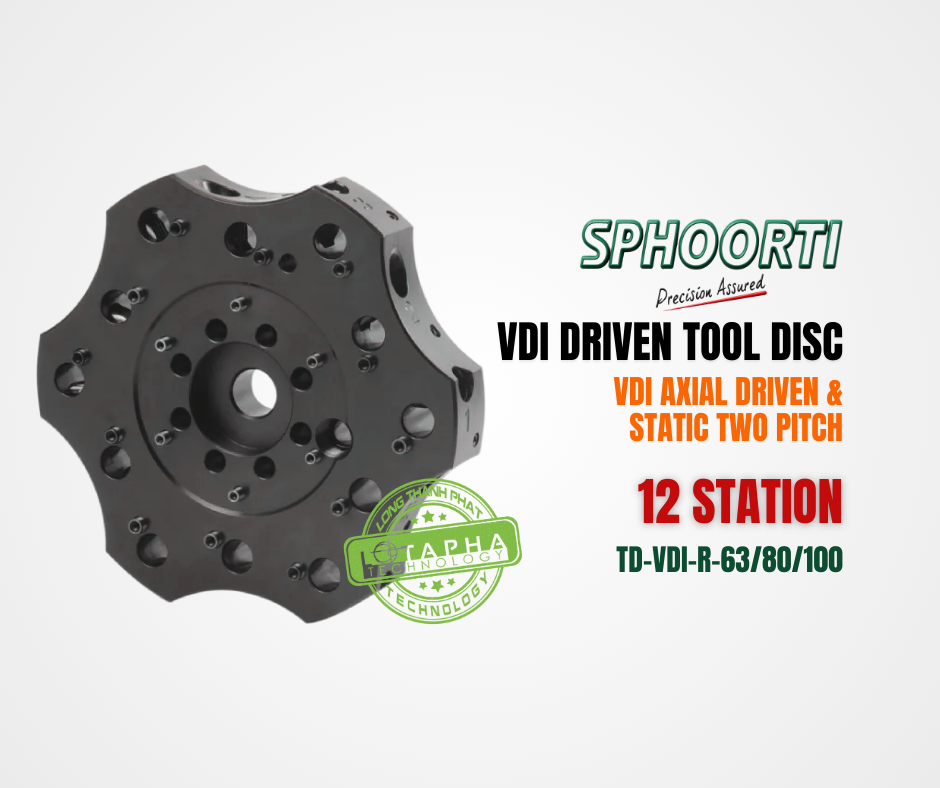

SPHOORTI | VDI DRIVEN TOOL DISC | VDI AXIAL & STATIC TWO PITCH

SPHOORTI | VDI DRIVEN TOOL DISC | VDI AXIAL & STATIC TWO PITCH

Mô tả

Chi tiết


DIN 5480
CODE ΦA(VDI) ΦB ΦB2 C ΦD ~ΦE ΦF ΦG Y TURET TYPE
TD-VDI-R-63-12-20-200-240-2-D80 20 200 240 52 290 390 30 90 - PRAGATI DTT 63-12-200-240-0
TD-VDI-R-80-12-30-240-308-2-D80 30 240 308 67 368 537 40 120 - PRAGATI DTT 80-12-200-308-0

DIN5482
CODE ΦA(VDI) ΦB ΦB2 C ΦD ~ΦE ΦF ΦG Y TURET TYPE
TD-VDI-R-80-12-30-240-308-2-D82 30 240 308 59 368 537 40 120 - PRAGATI DTT 80-12-240-308-0
TD-VDI-R-80-12-30-240-308-25-2-D82 30 240 308 59 368 534 40 120 25 PRAGATI DTT 80-12-240-308-25
TD-VDI-R-100-12-40-340-400-2-D82 40 340 400 67 470 680 50 145 - PRAGATI DTT 100-12-340-400-0
TD-VDI-R-100-12-40-340-400-32-2-D82 40 340 400 67 470 677 50 145 32 PRAGATI DTT 100-12-340-400-32
TD-VDI-R-100-12-40-370-400-2-D82 40 370 400 67 470 668 50 145 - PRAGATI DTT 100-12-370-400-0
TD-VDI-R-100-12-40-370-400-32-2-D82 40 370 400 67 470 665 50 145 32 PRAGATI DTT 100-12-370-400-32
