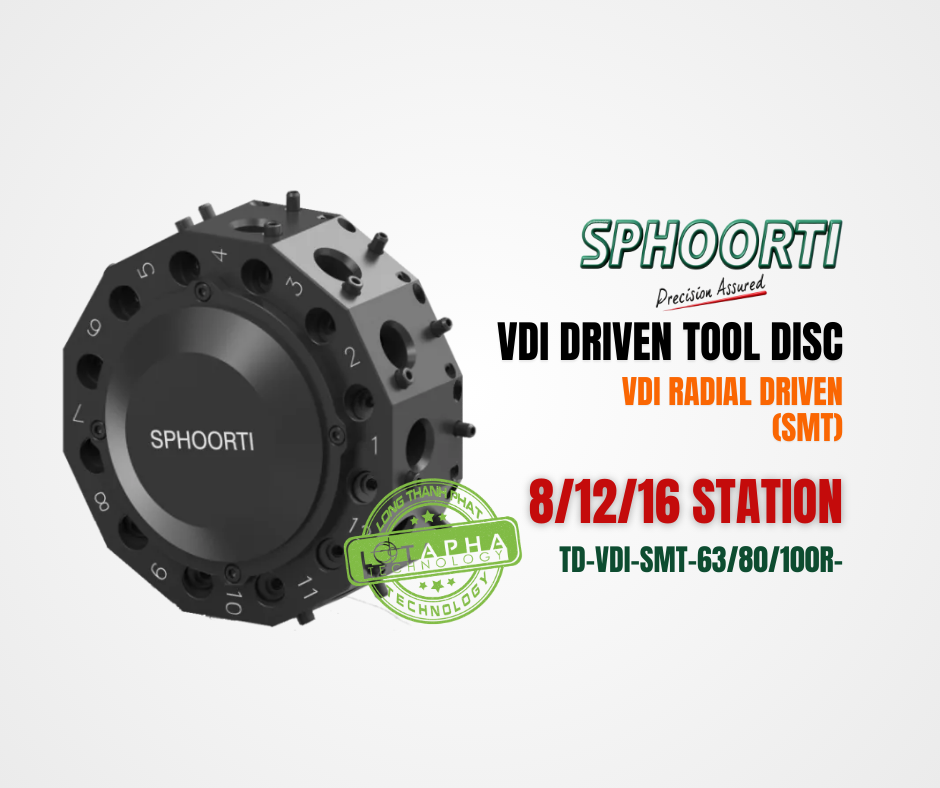

SPHOORTI | VDI DRIVEN TOOL DISC | VDI RADIAL DRIVEN (SMT) | 8/12/126 STATION

SPHOORTI | VDI DRIVEN TOOL DISC | VDI RADIAL DRIVEN (SMT) | 8/12/126 STATION

Mô tả

Chi tiết



8 STATION
CODE A(A/F) ΦB(VDI) C D ~ΦE ΦF ΦG H ΦJ TURET TYPE
TD-VDI-SMT63R-8-25-220-D80 220 25 46 76 396 110 127 40 8 PRAGATI SMT-63R-8
TD-VDI-SMT8OR-8-30-270-D80 270 30 55 90 595 130 150 48 8 PRAGATI SMT-80R-8
TD-VDI-SMT 100R-8-40-320-D80 320 40 74 140 726 168 187 56 10 PRAGATI SMT-100R-8

12 STATION
CODE A(A/F) ΦB(VDI) C D ~ΦE ΦF ΦG H ΦJ TURET TYPE
TD-VDI-SMT63R-12-25-220-D80 220 25 46 76 396 110 127 40 8 PRAGATI SMT-63R-12
TD-VDI-SMT8OR-12-30-270-D80 270 30 55 90 595 130 150 48 8 PRAGATI SMT-80R-12
TD-VDI-SMT100R-12-40-320-D8 0 320 40 74 140 726 168 187 56 10 PRAGATI SMT-100R-12

16 STATION
CODE A(A/F) ΦB(VDI) C D ~ΦE ΦF ΦG H ΦJ TURET TYPE
TD-VDI-SMT8OR-16-30-340-D80 340 30 55 90 665 130 150 48 8 PRAGATI SMT-80R-16
