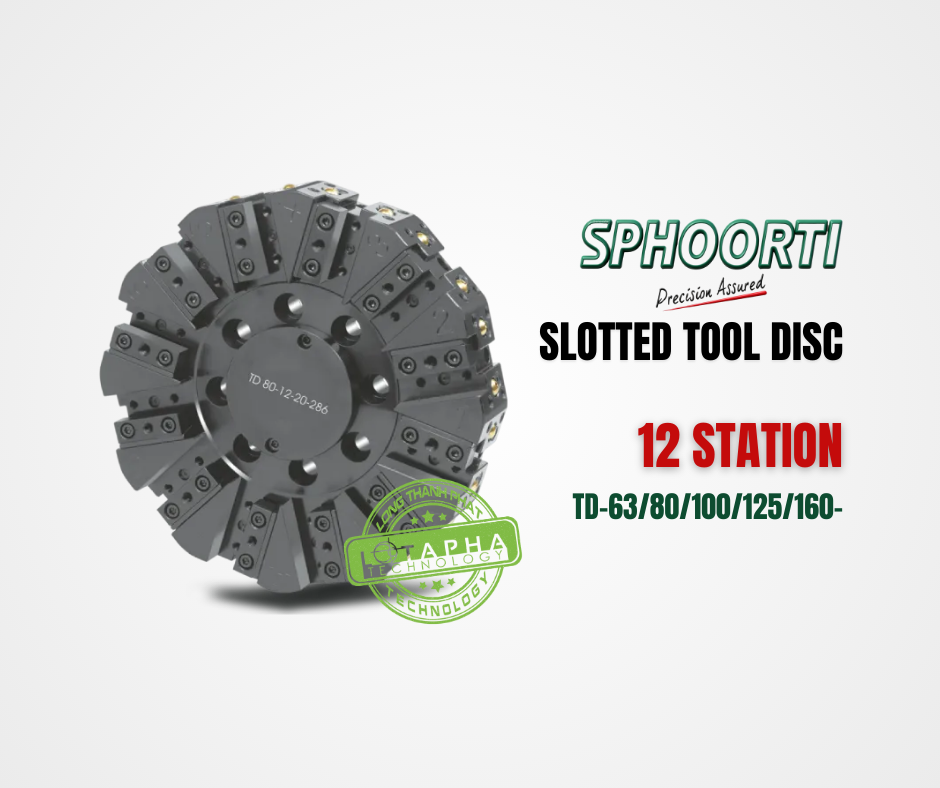

SPHOORTI | SLOTTED TOOL DISC | 12 STATION

CODE	A_{(Tool size)}	B	C	ΦD	~ΦE	ΦF	ΦG	ΦH_(max)	ΦY	TURRET TYPE
TD-63-12-16-236	16	236	51	307	270	30	90	25	-	PRAGATI BTP-63, Duplomatic-BSV-N-120, Baruffaldi-TOE-120, Sauter-05-480-512
TD-80-12-20-286	20	286	61	391	348	40	120	32	-	PRAGATI BTP-80, Duplomatic-BSV-N-160, Baruffaldi-TOE-160, Sauter-05-480-516
TD-80-12-20-295-12	20	295	61	402	346	40	120	32	12	PRAGATI BTP-80, Duplomatic-BSV-N-160, Baruffaldi-TOE-160, Sauter-05-480-516
TD-80-12-20-320	20	320	61	425	382	40	120	32	-	PRAGATI-BTP-80, Duplomatic-BSV-N-160, Baruffaldi-TOE-160, Sauter-05-480-516
TD-100-12-25-350	25	350	81	469	420	50	145	40	-	PRAGATI BTP-100, Duplomatic-BSV-N-200, Baruffaldi-TOE-200, Sauter-05-480-520
TD-100-12-25-350-20	25	350	81	473	421	50	145	40	20	PRAGATI BTP-100, Duplomatic-BSV-N-200, Baruffaldi-TOE-200, Sauter-05-480-520
TD-100-12-25-410	25	410	81	529	490	50	145	40	-	PRAGATI BTP-100, Duplomatic-BSV-N-200, Baruffaldi-TOE-200, Sauter-05-480-520
TD-125-12-25-380	25	380	81	499	460	63	182	40	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter05-480-525
TD-125-12-25-436	25	436	81	555	520	63	182	40	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-125-12-32-436	32	436	96	588	525	63	182	50	-	PRAGATI BTP-125, Duplomatic-BSV-N-250, Baruffaldi-TOE-250, Sauter-05-480-525
TD-160-12-32-565	32	565	126	719	645	80	220	50	-	PRAGATI BTP-160, Duplomatic-BSV-N-320, Baruffaldi-TOE-320, Sauter-05-480-532
TD-160-12-40-565	40	565	126	727	645	80	220	60	-	PRAGATI BTP-160, Duplomatic-BSV-N-320, Baruffaldi-TOE-320, Sauter-05-480-532
