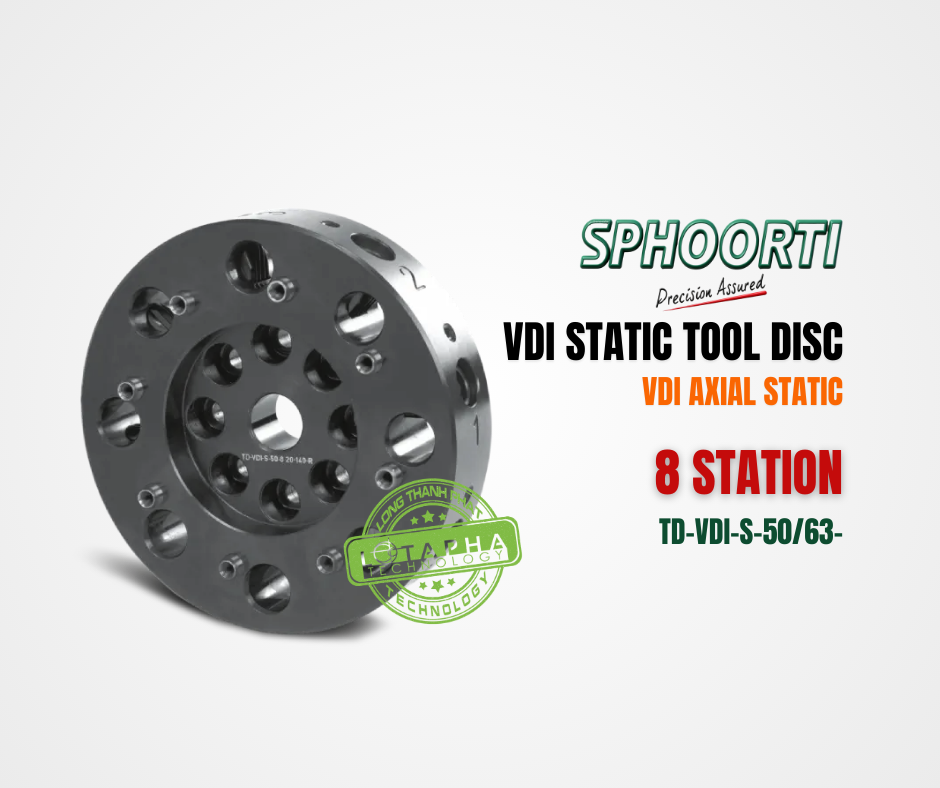

SPHOORTI | VDI TOOL DISC | VDI AXIAL 8 STATION

CODE	ΦA_(VDI)	ΦB	C	ΦD	~ΦE	ΦF	ΦG	Y	TURRET TYPE
TD-VDI-S-50-8-16-160	16	160	34	200	230	25	70	-	PRAGATI BTP-50, Duplomatic-BSV-N-100 Baruffaldi-TOE-100, Sauter-05-480-510
TD-VDI-S-50-8-20-140	20	140	42	185	235	25	70	-	PRAGATI BTP-50, Duplomatic-BSV-N-100 Baruffaldi-TOE-100, Sauter-05-480-510
TD-VDI-S-63-8-20-200	20	200	42	245	294	30	90	-	PRAGATI BTP-63, Duplomatic-BSV-N-120, Sauter-05-480-512
TD-VDI-S-63-8-20-200-17	20	200	42	245	292	30	90	17	PRAGATI BTP-63, Duplomatic-BSV-N-120, Sauter-05-480-513,
TD-VDI-S-63-8-20-209-12	20	209	42	264	303	30	90	12	PRAGATI BTP-63, Duplomatic-BSV-N-120, Sauter-05-480-514
TD-VDI-S-63-8-20-240	20	240	42	295	332	30	90	-	PRAGATI BTP-63, Duplomatic-BSV-N-120, Sauter-05-480-515
