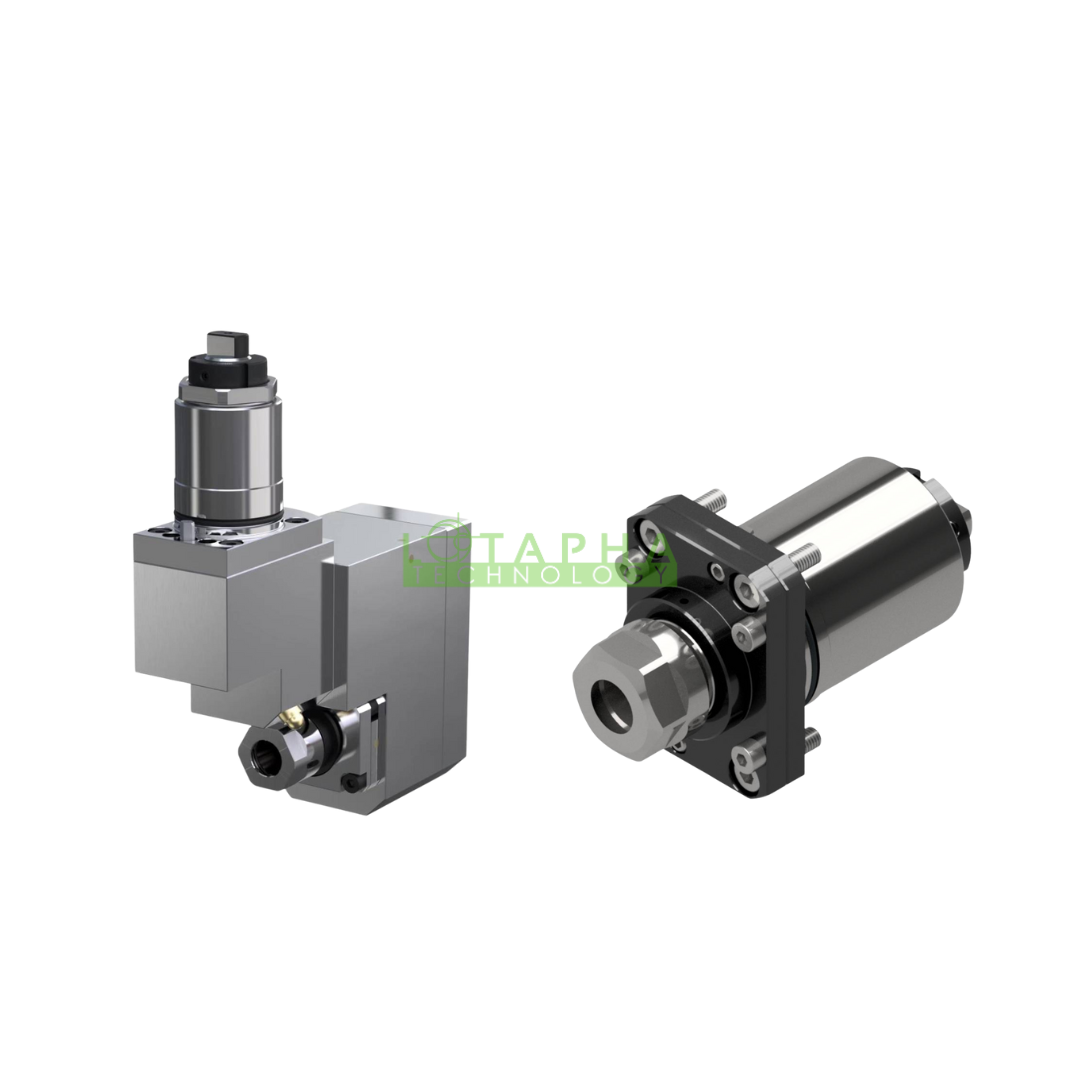

TSUGAMI

Tool holder
TSBA0001
Tool clamping: Ø20

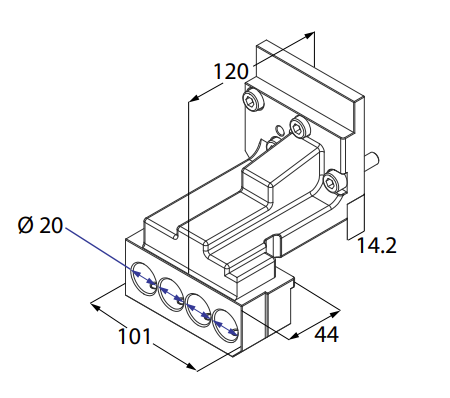

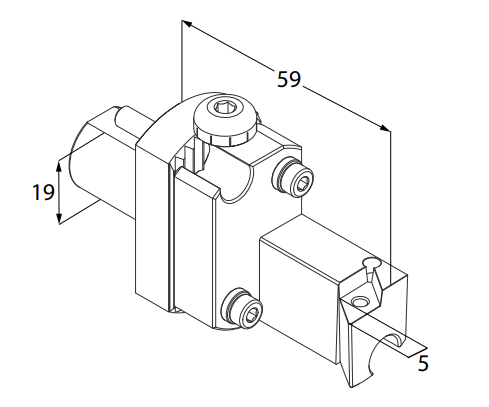

Tool holder - adjustment
TSBBA20000+COMBADL550

Tourbillonnage
TSBA545301
Whirling head: GL501-TSS260100
Speed ratio: 1:1

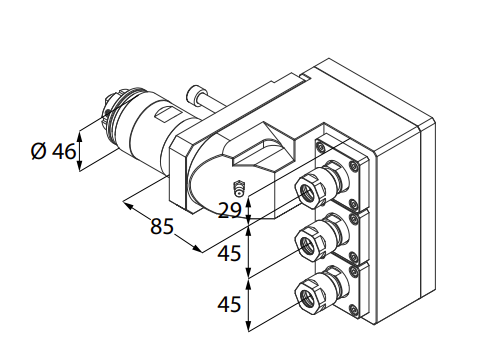

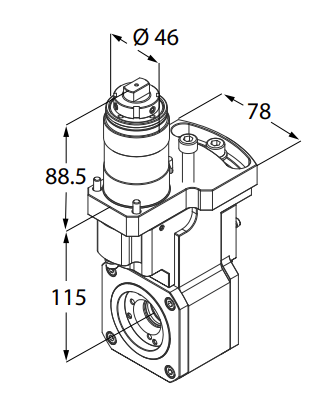

3 spindle axial drilling/milling unit
TSBA2A3301
Tool clamping: ER16AM
Speed ratio:1:1

Slitting saw unit
TSBB712301
Tool holder: Ø12.7xØ70
Speed ratio: 1:1

Boring bar holder
TSBB82Q303
Tool clamping: Ø25

Boring bar holder

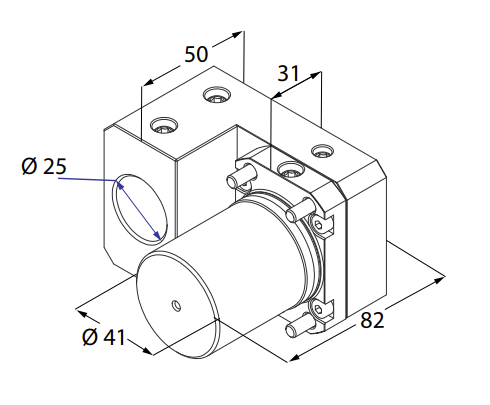

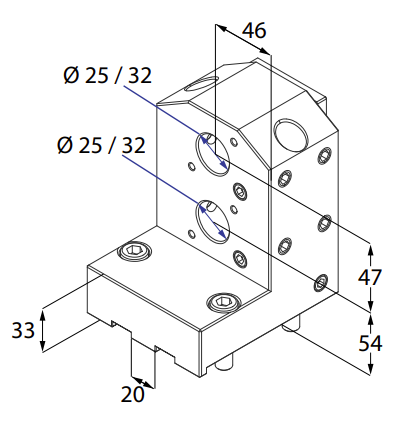

TSMC802003
Tool clamping: Ø25/Ø32

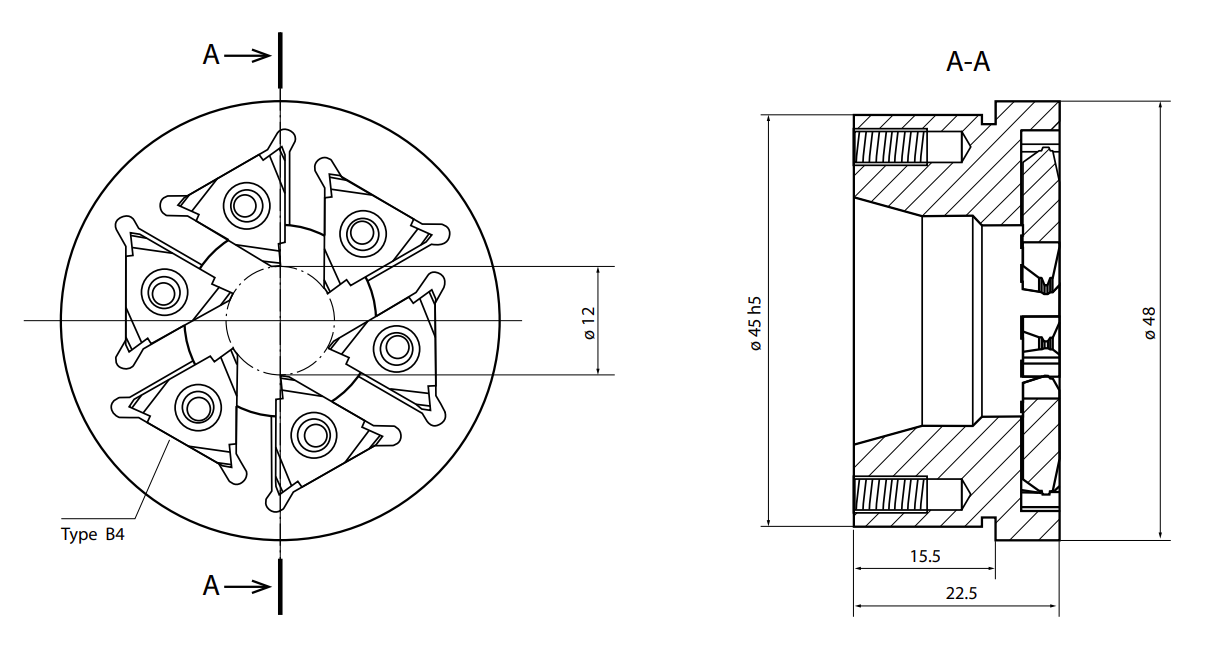

WHIRLING HEAD _GL501-TSS260100
for tourbillonnage TSBA545301 - TSSA545201


TECHNICAL INFORMATION

ORDER-NO.	OPERATION	REF.NO.	TOOLCLAMPING	OUTPUT	RPM MAX	MACHINE	OTHER
TSBB311201	Radial drilling/milling unit	3220-Y7074	ER11A	1:1	8000	BO205III
TSBA116301	Radial drilling/milling unit	3268-T051	ER16A	1:1	6000	BO385
TSBA545301	Tourbillonnage	3268-Y450	GL501- TSS260100	1:1	5000	BO266 / 326	Adjustment: ± 20°
TSBB712301	Boring bar holder	3282-Y211	Ø25	_	_	Internal coolant: 25 Bar (maz)
TSBB912301	Tool holder	_	12x12	_	_	BO385 / BO326	_
TSSA116201	Radial drilling/milling unit	3281-T050	ER16M	1:1	8000	S205 / S206	_
TSMC125001	Axial drilling/milling unit	3295-Z92511- 0101	ER25UM	1:1	-	M06SD / 06SY / 08SY	-
TSMC801001	Boring bar holder	3295-H202	Ø32	-	-	M06J	_
TSBB82Q206	Boring bar holder	-	Ød 06	-	-	BO205	_
TSSA116202	Axial drilling/milling unit	_	ER16M	1:1	8000	S205A	_
TSBA2B1202	Axial drilling/milling unit	3254-Y082	ER16AM	1:1	6000	BO209	_
TSBA2A3303	3 spindle axial drilling/milling unit - adjustable	-	ER16AM	1:1	6000	BO325III	Adjustment: 0-90°
TSBB316304	Radial drilling/milling unit	_	ER16M	1:0.476 2	2857	HS372	_
