DOOSAN

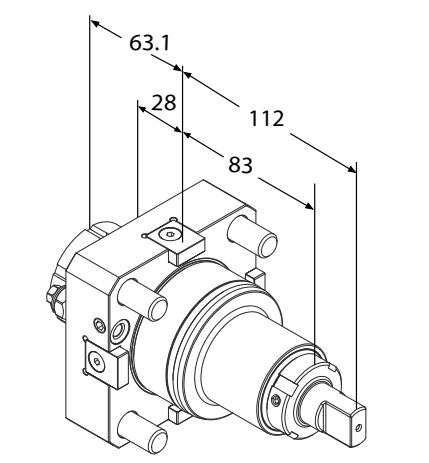

Axial drilling/milling unit
BM45MY1A0102
Tool clamping: ER25UM
Speed ratio: 1:1

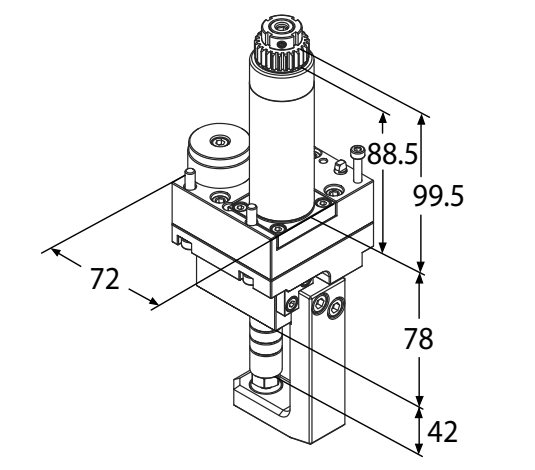

Slitting saw unit
DSTB706301
Speed ratio: 1:1

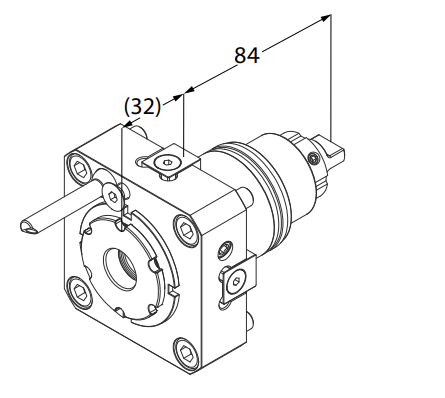

Radia drilling/milling unit
BM65DS1A0101
Tool clamping: ER32
Speed ratio: 1:1

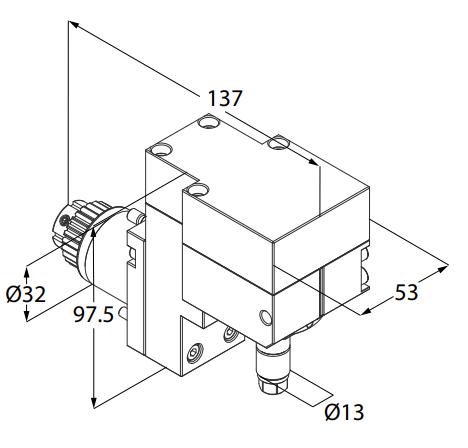

Slitting saw unit
DSTA7 (08~12)301
Tool clamping: ER32
Speed ratio: 1:0.428

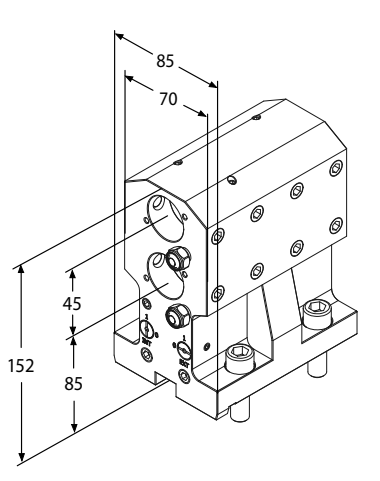

Boring bar holder
BM65DS2D2301
Tool clamping: Ø32

TECHNICAL INFORMATION

ORDER NO	OPERATION	TOOL CLAMPING	OUTPUT	RPM MAX	MACHINE	OTHER
BM55DS1A0101	Axial drilling/milling unit	ER25UM	1:1	6000	BMT55	_
BM45MY1B0101	Radial drilling/milling unit	ER25UM	1:1	6000	BMT45 / DT42	_
DSTB706301	Slitting saw unit	-	2:1	5000	PUMA ST20GS / ST35GS / ST38GS	Adjustment: ±0.5mm
BM55DS1B0101	Radial drilling/milling unit	ER25UM	1:1	6000	BMT55	Internal coolant (max) 30 Bar
BM65DS1B0101	Axial drilling/milling unit	ER32	1:1	6000	BMT65 / VTURN A26Y90	Internal coolant (max) 25 Bar
BM55DS1B0105	Axial drilling/milling unit	ER25	1:1	6000	BMTS55	_
DSTB316301	Axial drilling/milling unit	ER16M	2:1	5000	PUMA ST20GS/ST35GS/ ST38GS	Adjustment: ±0.5mm
BM65DS1A0101	Radial drilling/milling unit	ER32	1:1	6000	PUMA 300 M/MS / V400M / TT2000SY / TT2500SY / TT2500MS PUMA2600 / 3100 / MX2000ST / MX2500LT / ST /LST / VT450M / TM PUMA INVERTURN 3000M	_
DSTA7(08~12)301	Slitting saw unit	Ø 8-12.7	1:0.428	3210	STG32G/32GS/35GS/38GS	Saw OD(max): Ø 50mm
DSTA713301	Slitting saw unit	_	1:0.428	3210	ST32G/ 32GS/ 35GS/ 38GS	Saw OD(max): Ø 50mm Shaft shank diameter: Ø 13mm
BM55DS2D2501	Boring bar holder	Ø 25	_	_	BMT55	_
