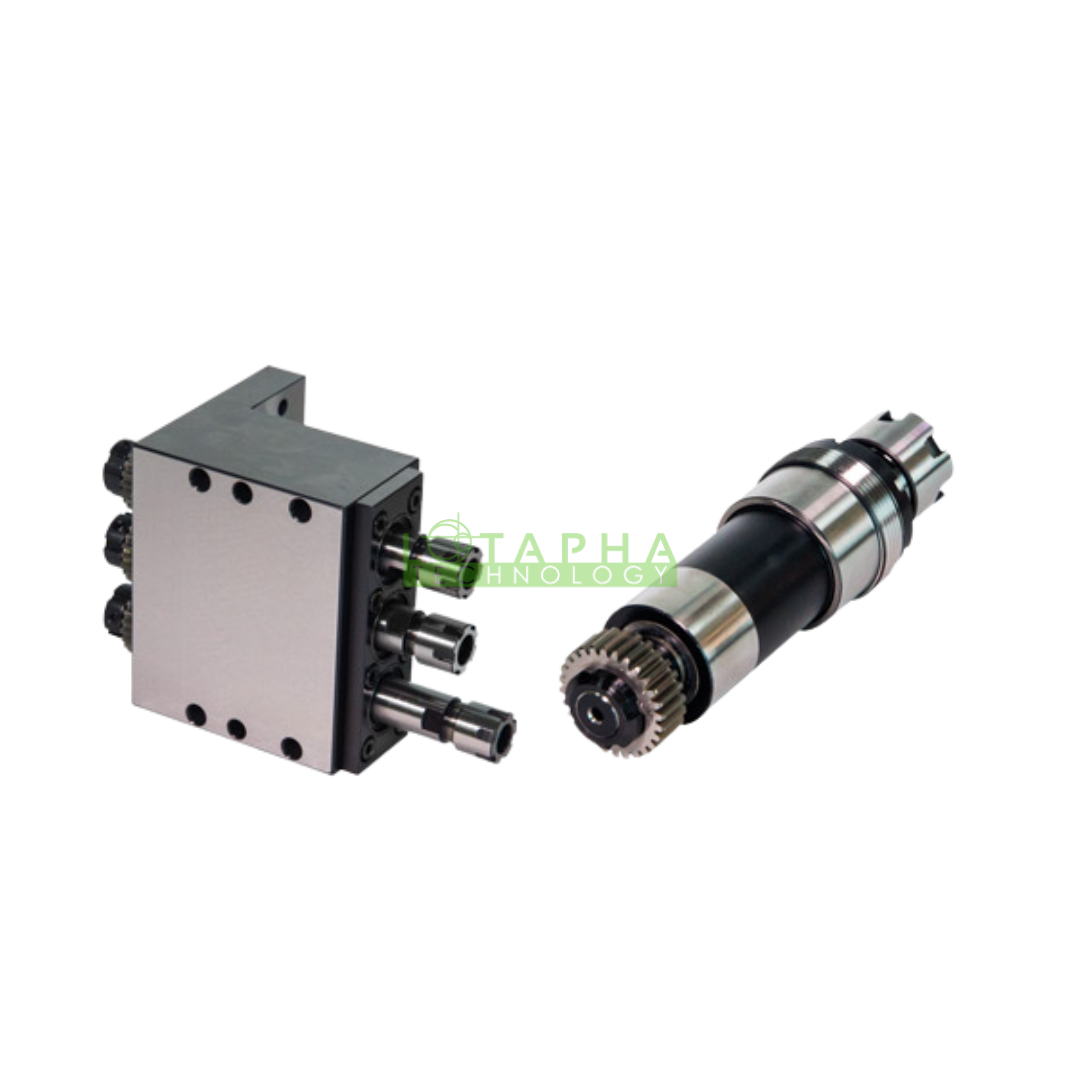

NOMURA

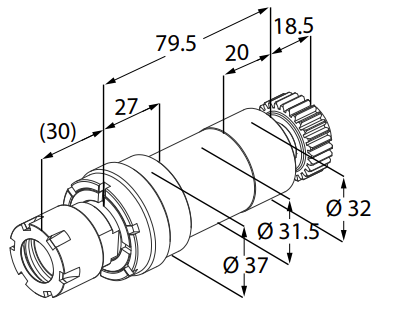

Radial drilling/milling unit
NUYA120201
Tool clamping: ER20M
Speed ratio: 1:1

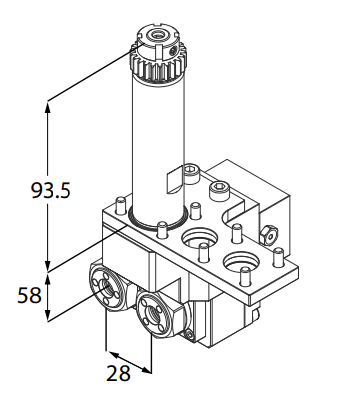

2 spindle axial drilling/milling unit
NUSA2A2102
Tool clamping: ER11
Speed ratio: 1:1

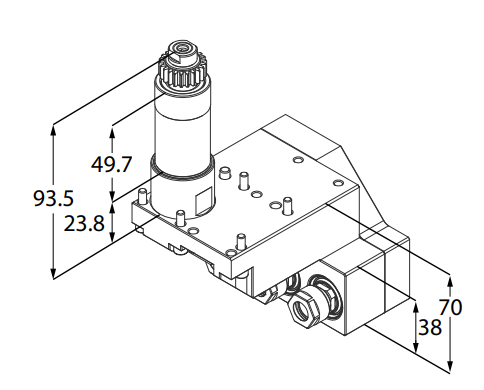

3 spindle axial drilling/milling unit
NUJA2A3201
Tool clamping: ER11A
Speed ratio: 1:1

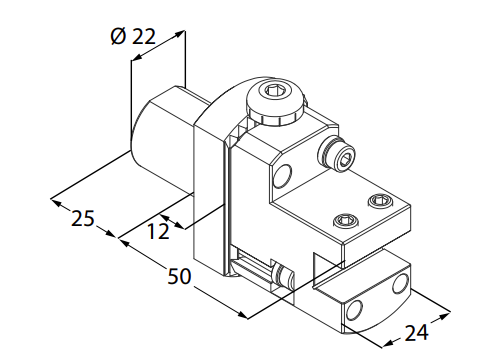

Adjustable tool holder
NUUBA22000+COMBAC1000
Tool holder: 10x10

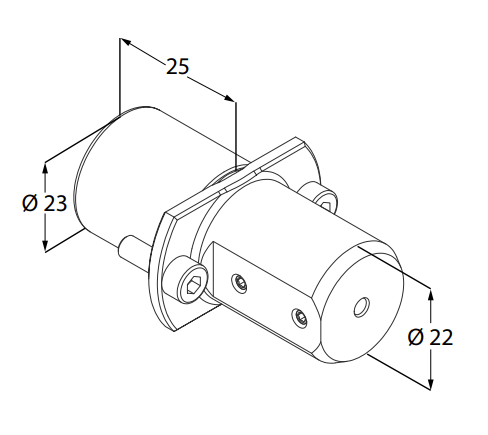

Boring bar holder
NUUB82Q2(03~06)
Tool clamping: Ø 3/4/5/6

TECHNICAL INFORMATION

ORDER NO	OPERATION	TOOL CLAMPING	OUTPUT	RPM MAX	MACHINE	OTHER
NUYA120201	Radial drilling/milling unit	ER20M	1:1	6000	NN25YB	_
NUYA2A2301	2 spindle axial drilling/ milling unit	ER16M	1:1	6000	NN32YB2	_
NUSA2A4101	4 spindle radial and axial drilling/milling unit	ER11M / ER11	1:1	6000	SB5 / SB6	_
NUUA116204	Radial drilling/milling unit	ER16M	1:1	6000	NN20U3C / NN16U3C / NN20CS / NN20U5 / NN20UB8	_
NUUA2A3202	3 spindle axial drilling/ milling unit	ER11M	1:1	6000	NN32YB2	_
NUJA2A3201	3 spindle axial drilling/ milling unit	ER11A	1:1	6000	NN20J	_
NUYB81Q304	Tool holder (deep drilling)	ER16M	_	_	NN32YB2	Ø22
NUUBA22000 +COMBADL550	Adjustable tool holder	_	_	_	NN20B8	Adjustment ±1.0mm Insert DC.11T
NUUB82A2(03~06)	Boring bar holder	Ø 3 / 4 / 5 / 6	_	_	_	_
NUUB81Q202	Boring bar holder	ER16M	_	_	NN20UB7	_
NUUA2A1101	Axial drillinag/milling unit	ER11M	1:1	_	NN10EX2	_
NUSA2A2101	Radial drilling/milling unit	ER11M	1;1	6000	VTC NN16SB6	_
