CITIZEN

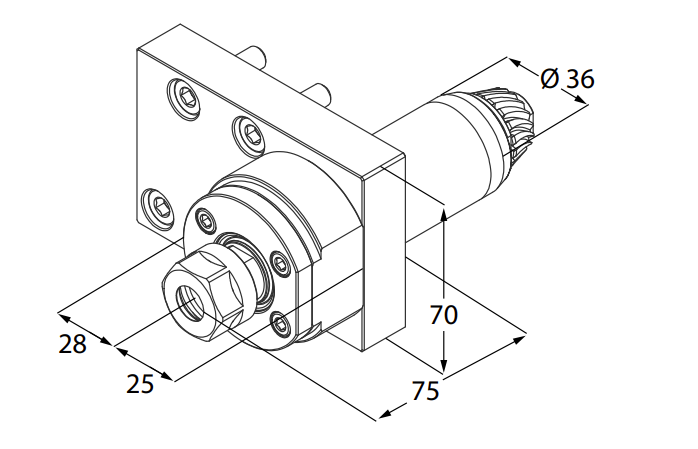

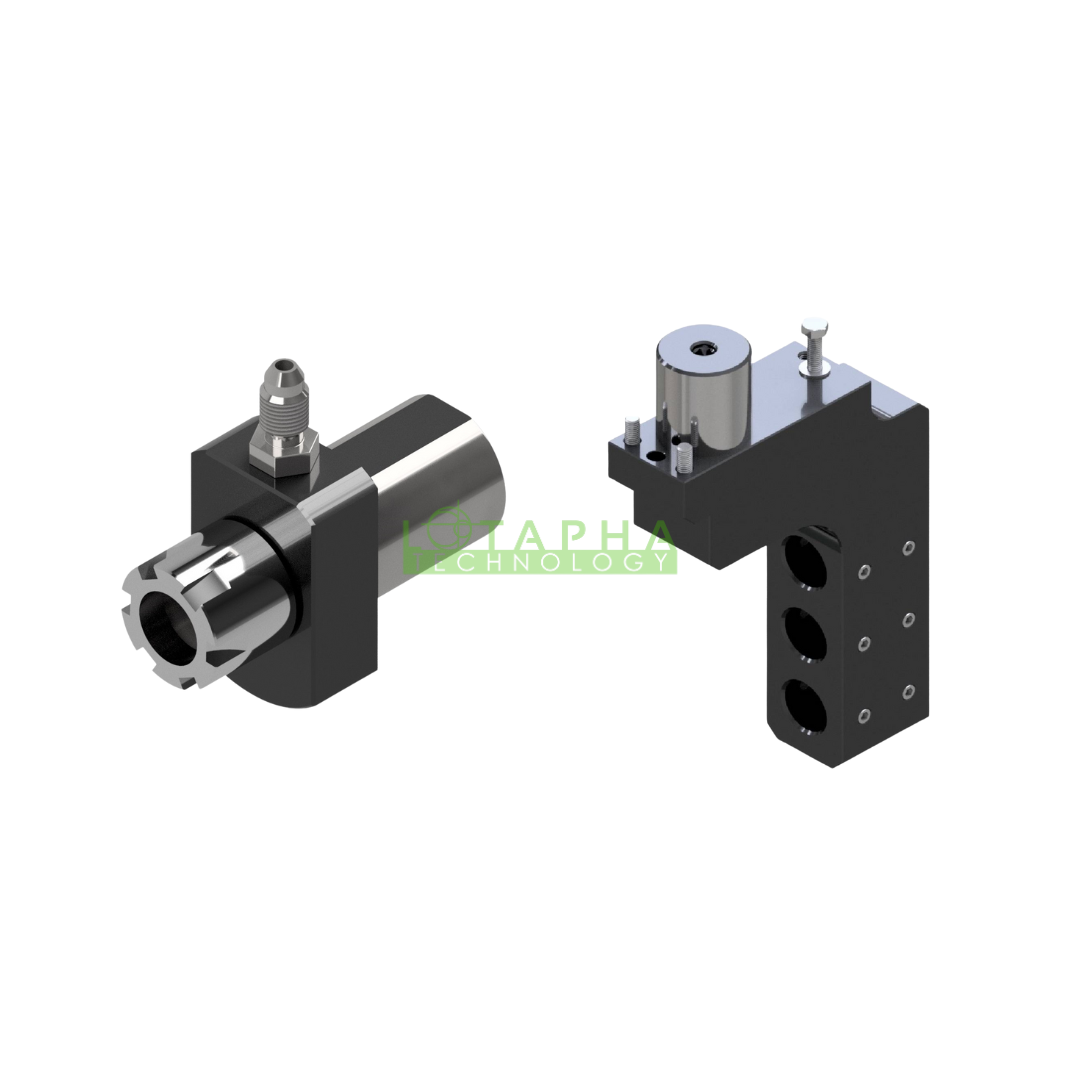

Radial drilling/milling unit
CTMC116302
Tool clamping: ER16A
Speed ratio: 1:1
Slotting unit
CTMC712101
Tool clamping: Ø12.7x70
Speed ratio: 1:1

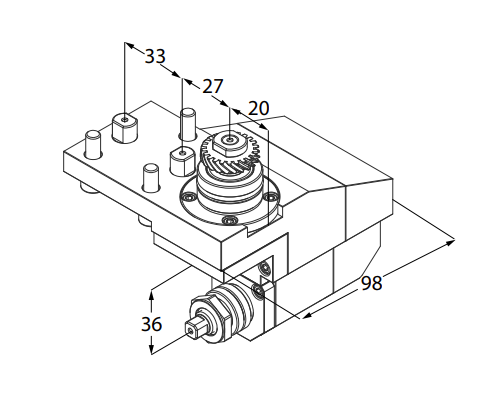

Double axial drilling/milling unit
CTLA2B1201
Tool clamping: ER11A, ER11M
Speed ratio: 1:1

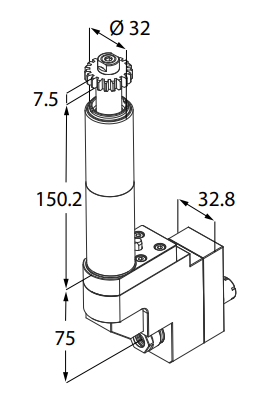

Radial drilling/milling unit
CTLA116202
Tool clamping: ER16A
Speed ratio: 1:1

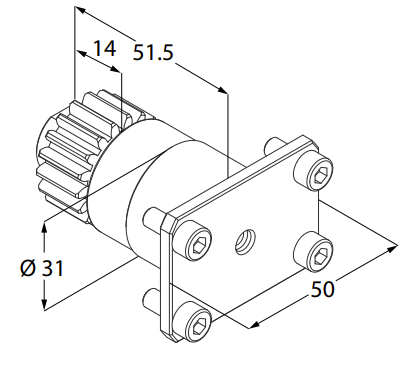

Idler shafr unit
CTLA100001

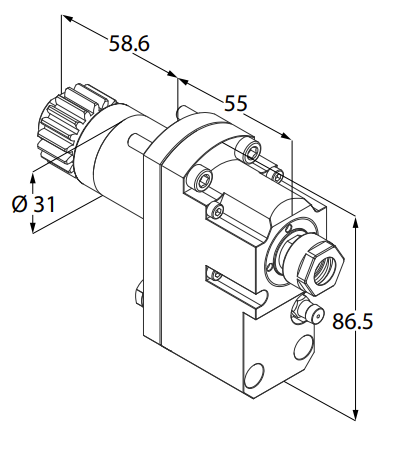

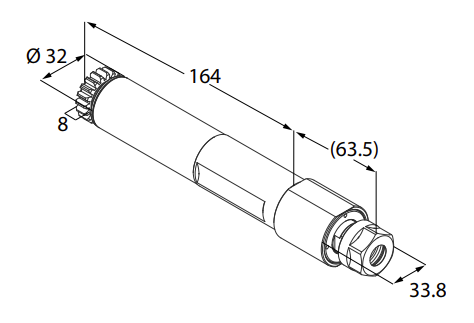

Speeder
CTLA111303
Tool clamping: ER11A
Speed ratio: 1:3

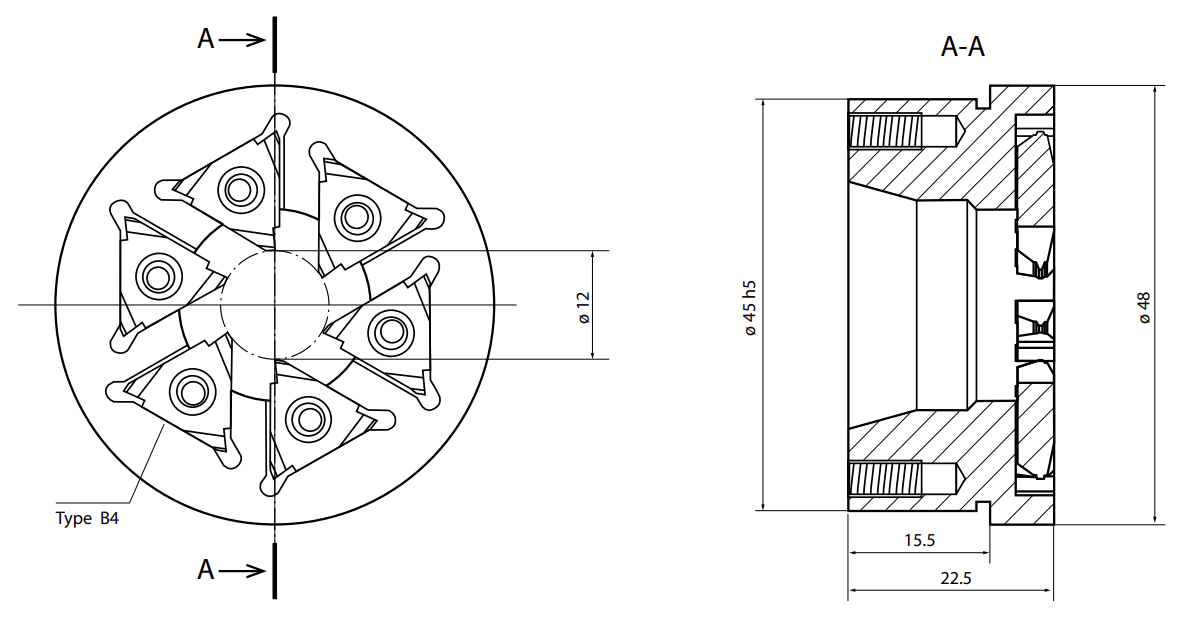

GL501-TSS260100
for threaf whriling unit CTLA545201

TECHNICAL INFORMATION

ORDER-NO.	OPERATION	REF.NO.	TOOLCLAMPING	OUTPUT	RPM MAX	MACHINE	OTHER
CTMC116302	Radial drilling/milling unit	KSC110	ER16A	1:1	5000	M32	_
CTMC111102	Radial drilling/milling unit	MSC107BT	ER11A	1:1	6000	M16	_
CTLA2B3302	3 spindle double axial drilling/milling unit	BSE507/ BSE707	ER11A	1:1	6000	A20L/ A20R/ L20/ L32	_
CTLA545201	Thread whirling unit	_	GL501-TSS260100	1:1	6000	L20	Adjustment ± 15°
CTLA608202	Gear hobbing unit	_	Ø8xØ25x12	1:1	6000	L20E	Adjustment ± 20°, Min.angle 0.05°
CTLA803202	Boring bar holder	GSD101	Ø19.05	_	_	L20	T10 position
CTLBA25000+ COMBADL550	Turning holder for sub spindle	_	_	_	_	L20E / IX	Insert DC. T11T3 / Tolerance ±1.0mm
CTAA116202	Slotting unit	GSC1310	Ø10.5 / M10x1.5	_	7000	A20 / A32 / L20 / L32	_
CTLB111206	Speeder	_	ER11A	1:4	24000	A20 / L20	_
CTLA2B4301	4 spindle double drilling/milling unit	GSE2010	ER16AM	1:1	6000	L32	_
CTAA803202	Boring bar holder	-	Ø19.05	_	_	A20L / A20R	_
CTLA100001	Idler shaft unit	GSE3210	_	_	_	L20 / L32 / A20	_
CTLB311204	Radial drilling/milling unit for sub spindle	GSC1507	ER11A	1:1	5000	L20-X / L20-XII	_
CTLA2B3303	3 spindle double drilling/milling unit	BSE707 BSE507	ER11A	1:1	6000	A20 / A32 / L20 / L32	_
CTAA116301	Boring bar holder	GSC1310	Ø10.5/M10x1.5		7000	A20 / L20 / L32	_
CTMC120301	Radial drilling/milling unit	KSC213	ER20A	1:1	5000	M32V	_
