STAR

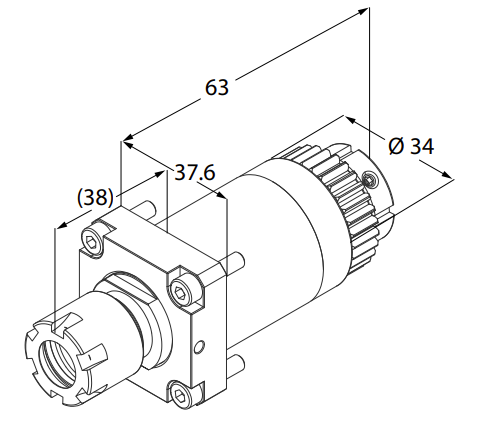

Radial and axial drilling/milling unit
STRA116202
Tool clamping: ER16M
Speed ratio: 1:1

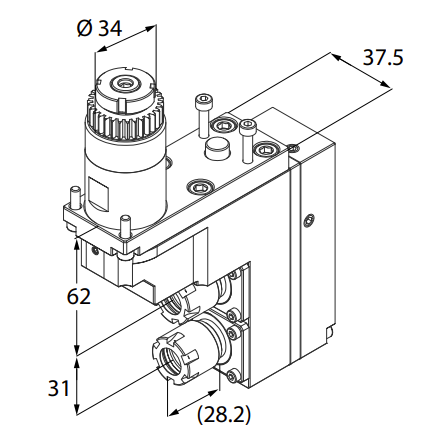

2 spindle axial drilling/milling unit
STRA2A2204
Tool clamping: ER16M
Speed ratio: 1:1

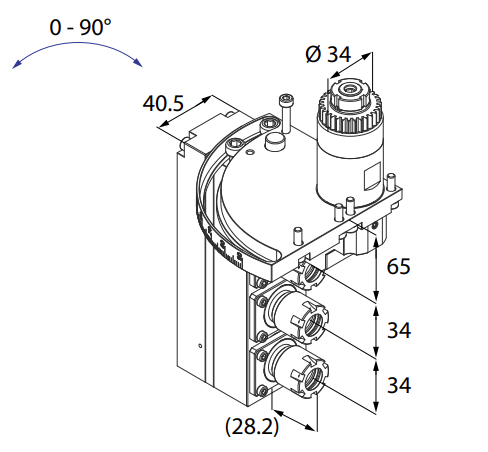

3 spindle axial drilling/miling unit-adjustable
STRA2A3302
Tool clamping: ER16M
Speed ratio: 1:1

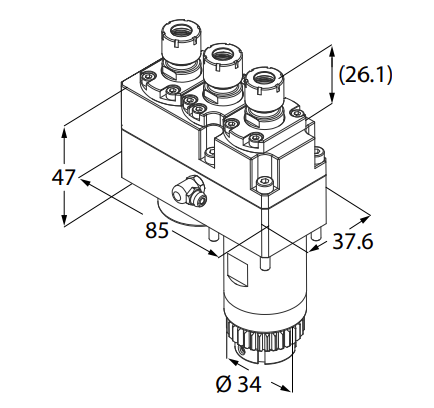

3 spindle radial drilling/miling unit
STAR111201
Tool clamping: ER11M
Speed ratio: 1:1

Slotting unit for sub spindle
STRB705202/706202/708202/710202/712202/713202
Tool holder: : Ø5/6/8/10/12/13xØ50
Speed ratio: 1:0.55

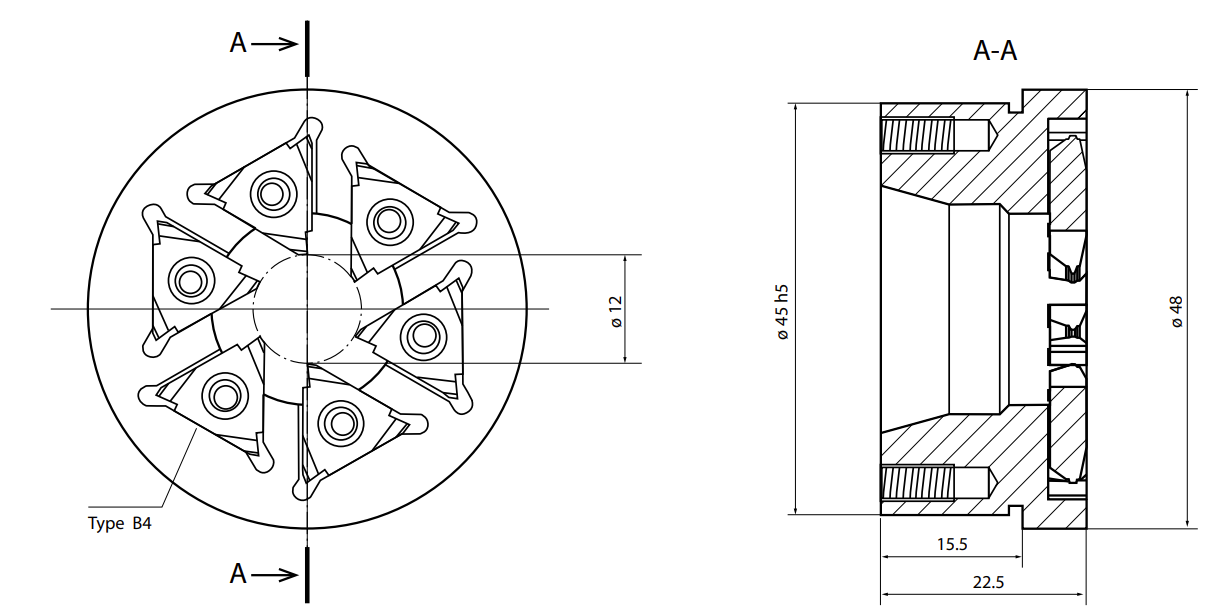

Whirling head_ GL501-TSS260100
for thread whirling unit STRA545203- STVC545201- STVC545301

TECHNICAL INFORMATION

ORDER-NO.	OPERATION	REF.NO.	TOOLCLAMPING	OUTPUT	RPM MAX	MACHINE	OTHER
STRA116202	Radial and axial drilling/milling unit	33150	ER16M	1:1	8000	SR20R-32J	_
STRA111202	Radial and axial drilling/milling unit	_	ER11A	1:3	18000	SR20R-32J	_
STRA100000	Idler shaft	57189	_	_	_	_	_
STRA2A2204	2 spindle axial drilling/milling unit	54151	ER16M	1:1	6000	SR20R	_
STRA2B2202	2 spindle axial drilling/milling unit	66159	ER16M/ER11M	1:1	6000	SR20R	_
STRA2A3201	3 spindle axial drilling/milling unit	66151	ER16M	1:1	6000	SR20R	_
STRB705202	Slotting unit for sub spindle	OR165	Ø05xØ50	1:0.55	4000	SR20R IV
STRB708202	Slotting unit for sub spindle	OR165	Ø08xØ50	1:0.55	4000	SR20R IV	_
STRB700201	Slotting unit for sub spindle	69166	Ø05xØ50	1:0.55	4000	SR20R/SR10J	_
STRB311203	Radial drilling/milling unit	_	ER11M	1:1	8000	SR20JC/FANUCC31i
STVC545201	Thread whirling unit	_	GL501-TSS260100	1:1	6000	SV32J-32J II-12-20/ECAS20T	Thread max.M10 Adjustment ±20°
STVC916202	Turning holder	_	16x16	_	_	SV32J	Adjustment ±1mm
STVC801204	Boirng bar holder	_	Ø32	_	_	SV32J	_
STRB81D303	Drill holder with internal coolant	_	ER20M	_	_	SR20R-32J	IC: 25bar
STRBA22000 +COMBAB000	Boring bar holder	_	Ø2/4/5/6/8/9/10/12/16	_	_	SR10J-20R-20J-32J	Tolerance ±1.0mm
STRB116205	Cutter holder	_	M6x1	1:1	8000	SR 20R-10J-20J	_
STVC801207	Boring bar holder	22110	Ø22	_	_	SV32J	_
