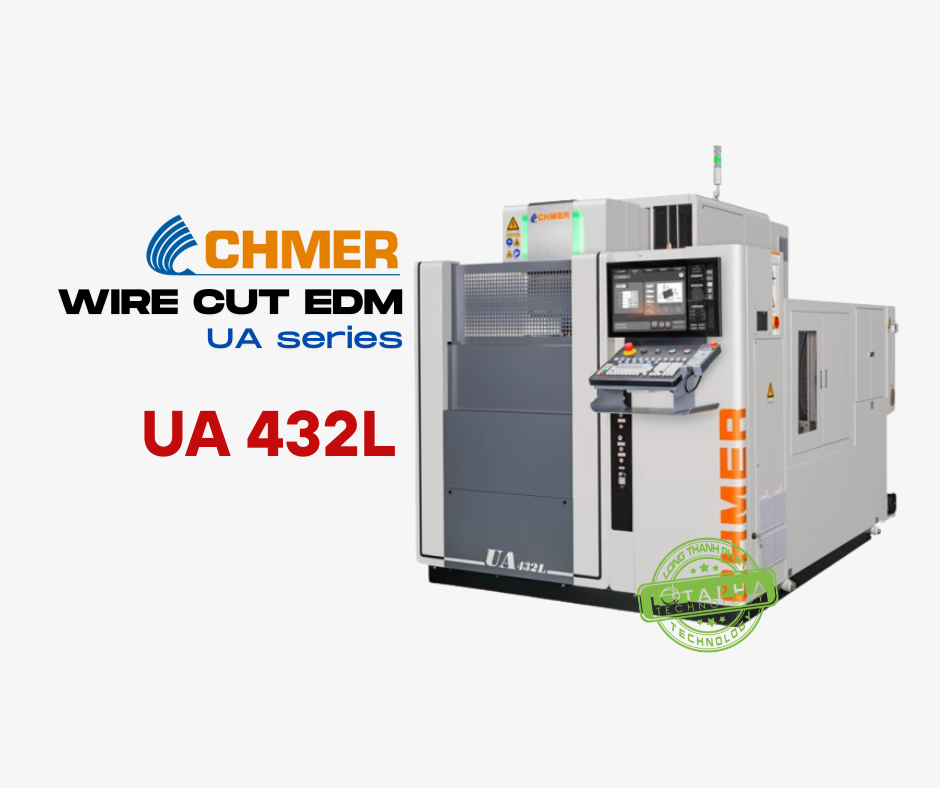

6th Gen AWT
5th vs. 6th Gen AWT System
| Item |
Unit |
AWT 5.5 |
AWT 6th |
Diff.% |
| Threading Time |
sec |
12 |
9 |
-25% |
| Wire Cutting Time |
sec |
4.5 |
2.5 |
-44% |
| Heater Lifetime |
mo |
4 |
8 |
100% |
| Heater Power Consumtion |
W |
5.5 |
4.5 |
-18% |
| Circuit Board Count |
pcs |
7 |
5 |
-28% |
| AWT System Power Usage |
W |
320 |
165 |
-48% |
Linear Motor

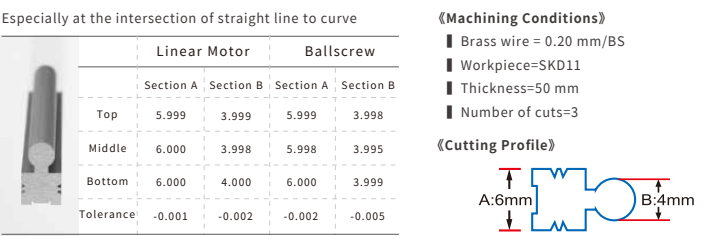

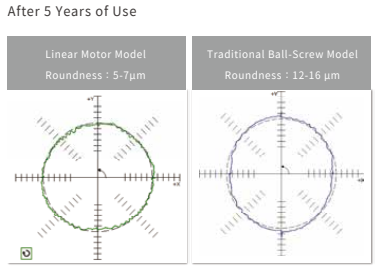

Ballbar Testing

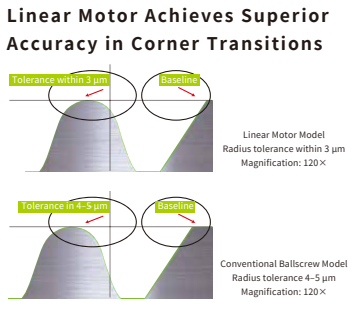

Recution of the tolerance on shape accuracy
AC - μ Super Fine Finish Circuit (Opt.)
AC-μ Super Fine Finish Circuit enables high-frequency discharge and precise energy control for superior surface quality：

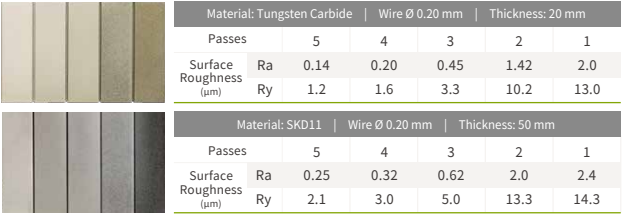

▍ Best surface roughness: Ra 0.14 μm (Tungsten Carbide).
▍ Best surface roughness: Ra 0.25 μm (SKD11 Steel).
i8+ Power Supply
The intelligent i8+ power system boosts cutting speed by 15% while achieving 28% energy savings.
It also features automatic discharge path optimization to enhance machining stability and reduce power loss.
Standard/ Optional
Standard l Optional Not Avaiable —
| Features & Item |
Specification |
Unit |
UA432L |
| Power Supply & Controll System |
| i8+ Power Supply |
|
1 set |
l |
| AC/DC Power |
|
1 set |
l |
| Intelligent Stepless Control Power |
ISC |
|
|
| Super Fine Finish Circuit |
AC-μ |
1 set |
|
| Touch Screen |
24 " |
1 set |
l |
| Interrupted Power Recovery |
|
1 set |
l |
| USB |
|
1 set |
l |
| Internet Data Transfer |
|
1 set |
l |
| DXF Transferring Function |
|
1 set |
l |
| Remote Monitoring & Internet Connection |
|
1 set |
|
| Mechanism & Machining System |
| Linear Motor Drive System |
|
1 set |
l |
| Absolute Linear Scale |
0.1 μm resolution |
1 set |
l |
| Automatic Wire Threading System |
AWT 6.0 |
1 set |
l |
| Wire Diameter Machining |
Φ 0.15‒0.30mm |
1 set |
l |
| Wire Threading Assistant Device |
|
1 set |
l |
| Z-Axis Travel Extension |
300 mm |
1 set |
|
| Z-Axis Travel Extension |
400 mm |
1 set |
— |
| Automatic Rise-and-Fall Door |
|
1 set |
l |
| Intelligent Water Level Control System |
|
1 set |
l |
| High Efficiency Water Circulation System |
|
1 set |
l |
| Energy Saving Inverter Chiller |
20,000 BTU |
1 set |
l |
| Additional Functions |
| Temperature Monitoring Device |
|
1 set |
|
| Digital Water Pressure Adjustment |
|
1 set |
l |
| CE Conformity |
CE circuit + EMC shielding |
1 set |
l |
| 6th Axis Machining |
|
1 set |
|
| Jumbo Wire Feeder |
30kg |
1 set |
|
| Auto Wire Chopper |
Ø ≤ 0.1 mm Not Usable |
1 set |
|
| 2 in 1 Transformer and AVR |
|
1 set |
|
| Waste Adhesion Prevention |
|
1 set |
|
| Sleep Mode & Wake-up |
|
1 set |
l |
| Wire Overflow Protection |
|
1 set |
l |
| QR Code Program Input |
|
1 set |
|
| Taper Compensation System |
|
1 set |
l |
| POS- Plane Offset System |
|
1 set |
|
| CAD/CAM |
|
1 set |
|
TECHNICAL SPECIFICATIONS
| MACHINE SPECIFICATIONS |
Unit |
UA643L |
| X, Y, Z Axis Travel |
mm |
600x400x300 |
| U, V Axis Travel |
mm |
120x120 |
| Max.Workpiece Dimensions |
mm |
W900xD650xH395 |
| Max.Weight of Workpiece |
kg |
700 |
| X, Y Axis Feed Rate |
mm/min |
1800 |
| Driving System |
|
XX, Y Linear Motors
Z, U, V AC Servo Motors |
| Wire Diameters ( Standard) |
mm |
ɸ0.15~ɸ0.3 (ɸ0.25) |
| Wire Tension |
gf |
300~2500 |
| Maximum Wire Speed |
mm/sec |
300 |
| Wire Load Capacity |
kg |
8 |
| Maximum Taper Angle |
°/mm |
±21◦/100 (DA+DB=15mm) |
| Machine Dimensions |
mm |
W2430xD3800xH2440 |
| Machine Weight |
kg |
3900 |
| Electric Filtration System |
| Dielectric Tank Capacity |
L |
1080L |
| Filtration |
Type |
Paper filters |
| Ion Exchange Resin Filter |
L |
14L |
| Dielectric Quality Control |
|
Auto |
| Dielectric Temperature Control |
|
Auto |
| CNC Unit |
| Controller Version |
N-Type Controller |
Compensation Functions |
Linear / Circular |
| Operating System |
GenOS (LINUX) |
Position Command |
Absolute / Incremental |
| Processor |
33 bit |
Command Unit |
Metric / Inch |
| CPU Core Count |
Quad-core |
Machining Speed Control |
Servo / Fixed |
| RAM |
4 GB |
Interpolation Rate |
0.001‒9999.999 |
| Storage |
32 GB |
Program Storage Capacity |
1,000‒9999 |
| Display |
24" Color Touch Screen |
Power Input |
3 Phase 220 V ± 5% |
| Servo Control |
EtherCAT ‒ Semi-closed Loop, Fully-closed Loop (Optical Encoder) |
Max Input Power |
8 kVA |
| Controlled Axes |
5 / 7 Axes: X, Y, U, V, Z (Optional Rotary Axis) |
Input Method |
Industrial Keyboard, RS232C, RS422, RS485, USB, LAN |
| Resolution Unit |
0.00001 mm |
|
|
| Max Display Value |
±9999.9999 mm |
|
|
