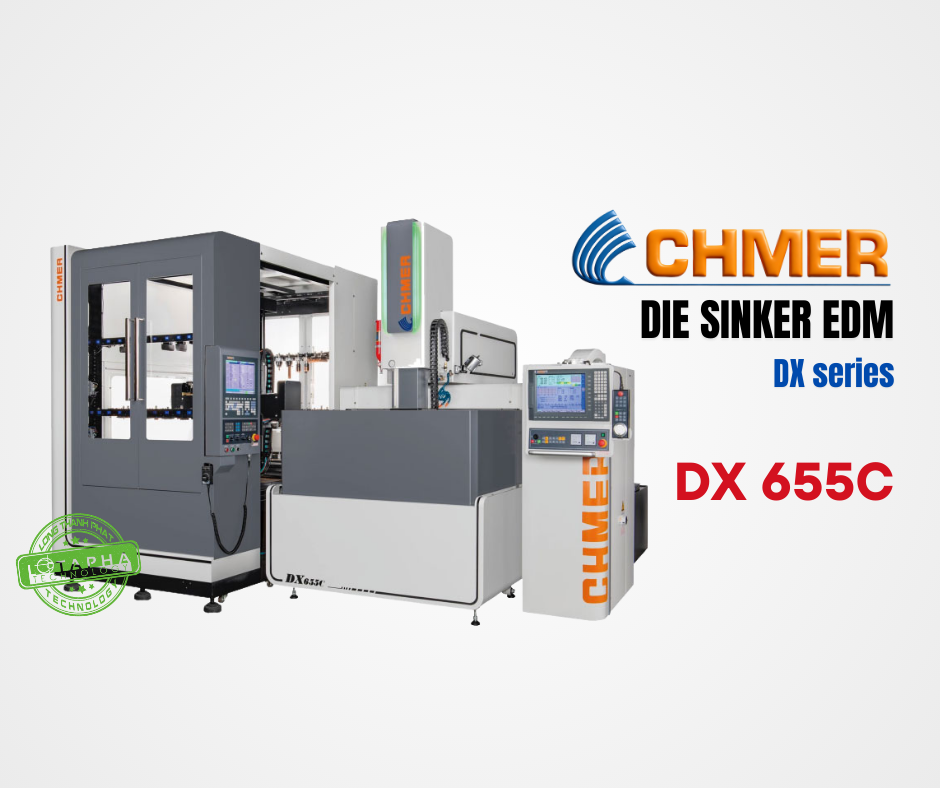

CHMER DX655C | DÒNG DX | MÁY XUNG ĐIỆN EDM

The new moving column structure avoids para-curve movement and provides better straight motion on Y axis.

CHMER automatic tool changer system is available for 48 electrodes and 8 workpieces changes.

The dropping tank is equipped with programmable automatic positioning.

Machine Specifications	Unit	DX655C
X, Y, Z Axis Travel	mm	600x500x500
Work Table Dimensions	mm	900x600
Work Tank Dimensions	mm	W1500xD1000xH560
Max.Workpiece Dimensions	mm	W1350xD900xH450
X, Y, Z Driving System		X, Y, Z-axis Ballscrews
X, Y Axis Feed Rate	mm/min	Max.6000
Z-Axis Jump Rate	mm/min	Max.8000
Distance form Ram Platen to Work Table	mm	300~800
Max.Weight of Electrode	kg	300
Max, Weight of Workpiece	kg	3000
Machine DImensions	mm	W1740xD2400xH2800
Machine Weight	kg	3500
Specifications of Power Supplier Unit
Max. Working Current	A	60
Max.Input Power	KVA	5
Electrode Consumption Rate	%	0.2
Best Surface Finish	µm/Ra	0.1
Dimensions of Power Supply Unit	mm	700x1530x1850
Weight of Power Supply Unit	kg	180
Specifications of Dielectric Tank
Dielectric Fluid Capacity	L	1300
Filtration	method	Paper Filter
Pump Power	HP	0.5x1 & 1x1
Weight	kg	290
Dimensions of Dielectric Tank	mm	1750x800x610 +1020x550x610
