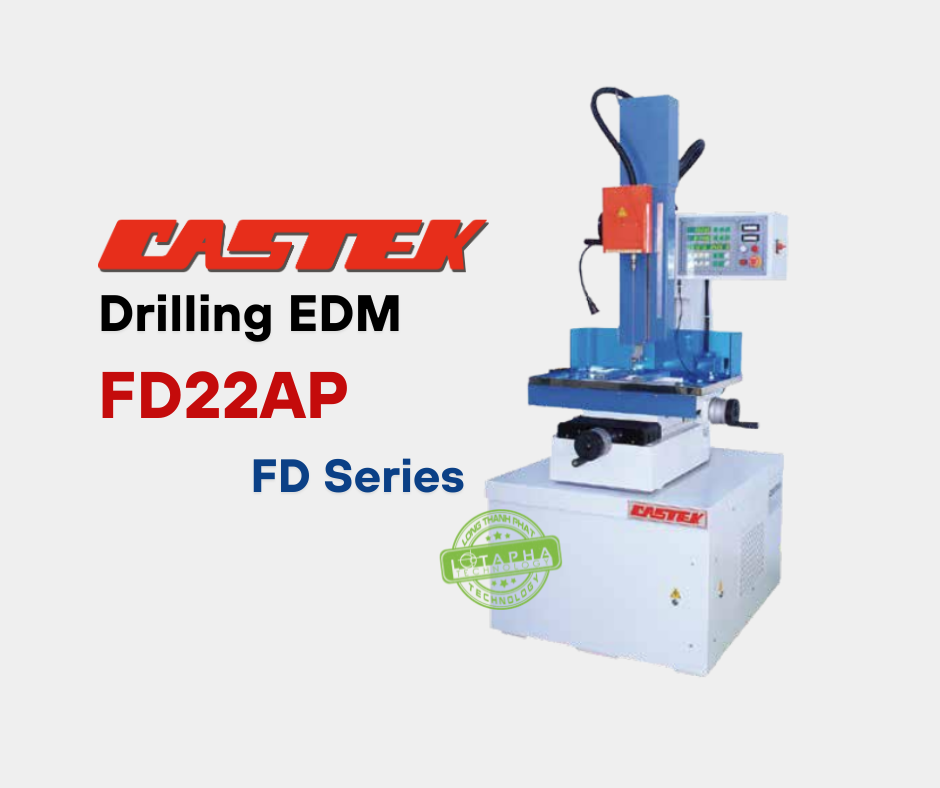

CASTEK | FD22AP CNC | MÁY XUNG LỖ EDM

SPECIFICATIONS
ITEM		UNIT	FD22AP
X, Y Axis Travel		mm	300x200
Z Axis Travel (electrode length)		mm	400
W Axis Travel (guide to table)		mm	25-300
Table Size		mm	400x240 BAR type
Max.Workpiece Size		mm	640x500x300
Max.Workpiece Weight		KGW	250
Linear System of X, Y			dovetail and ballscrew
Machine Size		mm	1200x1200
Net Weight		KGW	650
Input Voltage			Local voltage, 3 phases with PE, 50~60Hz
Max. Power consumption			6KVA
Max.Machining Current			HCD 50A
Port
Drill capability	<ɸ0.1		---
	ɸ0.1-ɸ0.2
	ɸ0.2-ɸ1.5
	ɸ1.5-ɸ3.0
	ɸ3.0-ɸ6.0
	M2-M8		---
Standard Accessories
1. Guide, ɸ1.0mm		6. Workpiece JIG
2. Electrode holder, 0.3-3.0mm		7. Magnetic pad
3. Brass tube, ɸ1.0mm 400Lx20 pcs		8. Tool box
4. Working light		9. Filtration system, FLT45
5. Linear scaler
Standard fuction
1. XYZ display		6. Dual IP control
2. Built-in parameters
3. EDGE fuction
4. inch/mm function
5. ADC, auto depth control
Options
1. EXTRA height + 100mm
2. CAT circuit
3. Carbide circuit & device
4. WFLT 50
