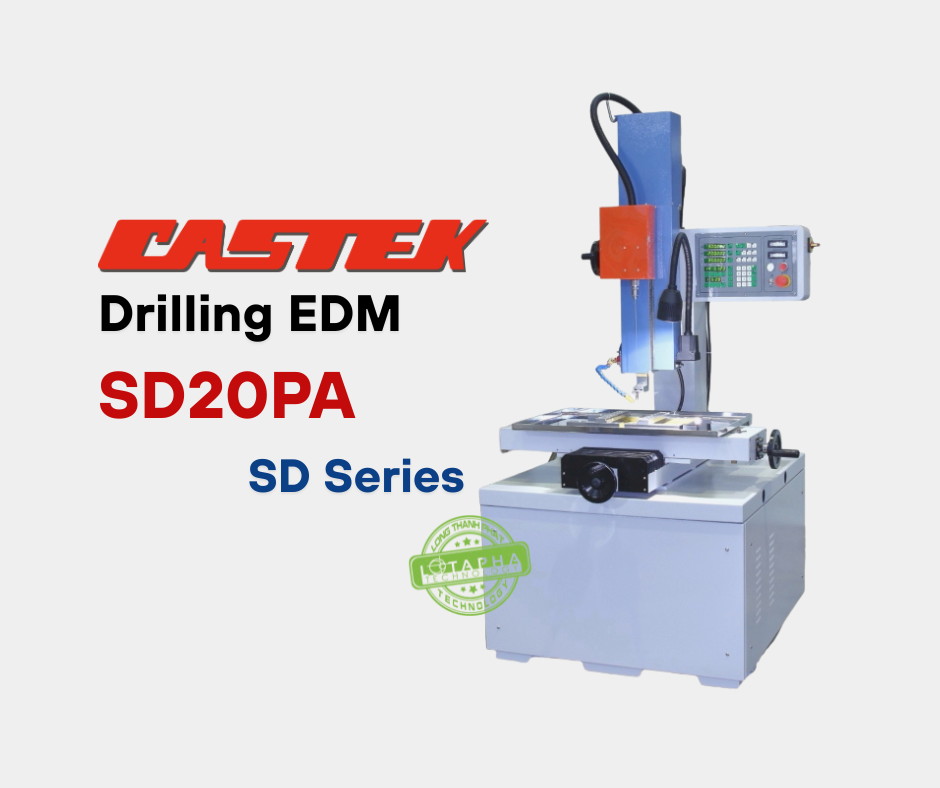

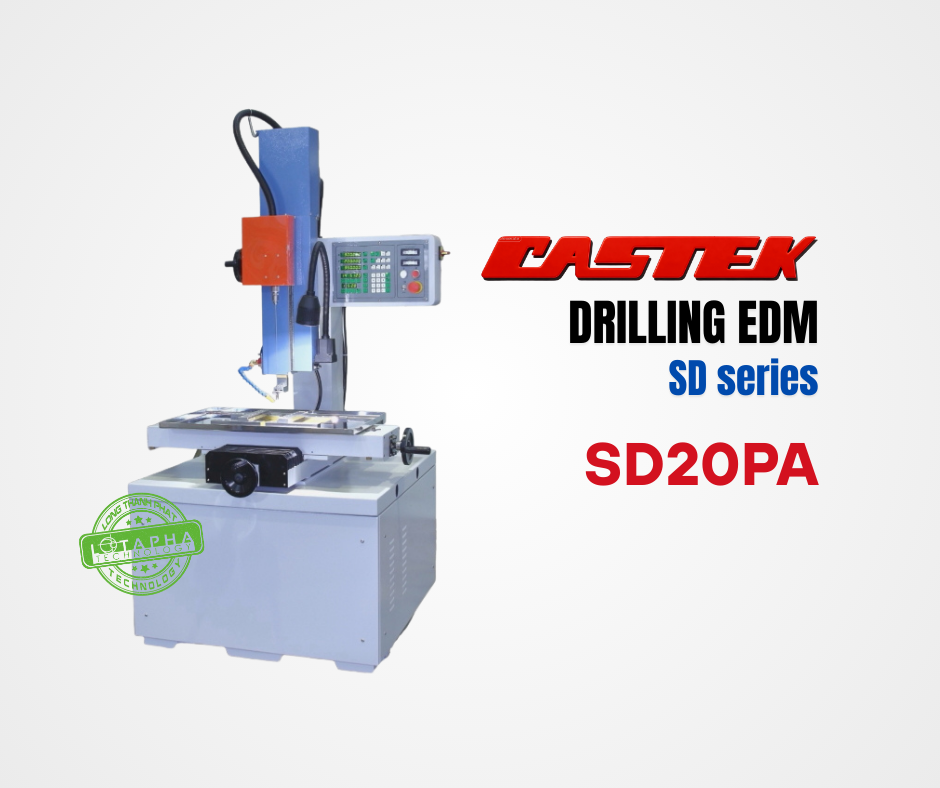

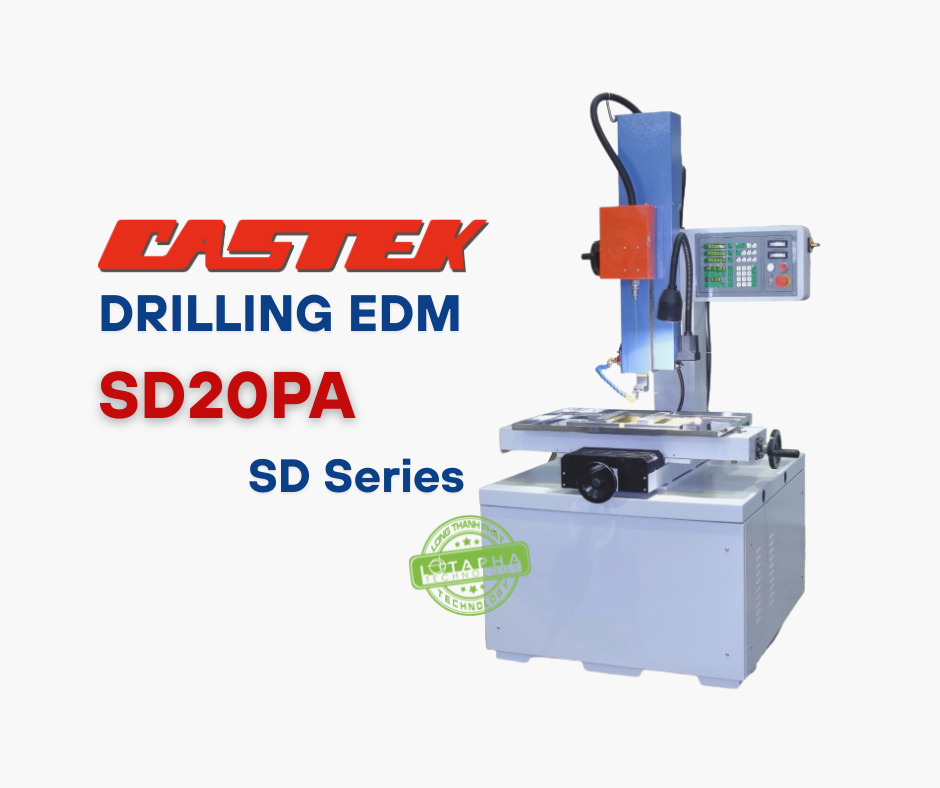

CASTEK | SD20PA CNC | MÁY XUNG LỖ NHỎ EDM

Mô tả

Wire-cut mate.
Simple machine for start hole purpose.
Material: harden steel, stainless steel, aluminum, titanium alloy, soft material.
Hole type: Φ0.2-Φ1.5、Φ1.5-Φ3.0.

Chi tiết

SPECIFICATION
ITEM		UNIT	SD20PA
X, Y Axis Travel		mm	300x200
Z Axis Travel (electrode length)		mm	400
W Axis Travel (guide to table)		mm	15-200
Table Size		mm	385x207 BAR
Max.Workpiece Size		mm	670x420x200
Max.Workpiece Weight		KGW	100
Linear System of X, Y			cross roller and ballscrew
Machine Size		mm	1300x1100
Net Weight		KGW	400
Input Voltage			200VAC, 3 phases with PE, 50~60HZ
Max.Power Consumption			3KVA
Max.Machining Current			SD 25A
Port
Drill Capacibilty	<Φ0.1		---
	Φ0.1-Φ0.2		---
	Φ0.2-Φ1.5		O
	Φ1.5-Φ3.0
	Φ3.0-Φ6.0		---
	M2-M8		---
Standard Accessories
1. Guide, Φ1.0mm x 1pc		6. Magnetic pad
2. Electrode holder, 0.3-3.0 x 1pc		7. Tool box
3. Brass tube, Φ1.0mm 400L x 20pcs		8. Electrical pump
4. Working light		9. FOOT PAD x3
5. Linear scaler XY, 5μm
Options
NO OPTION
