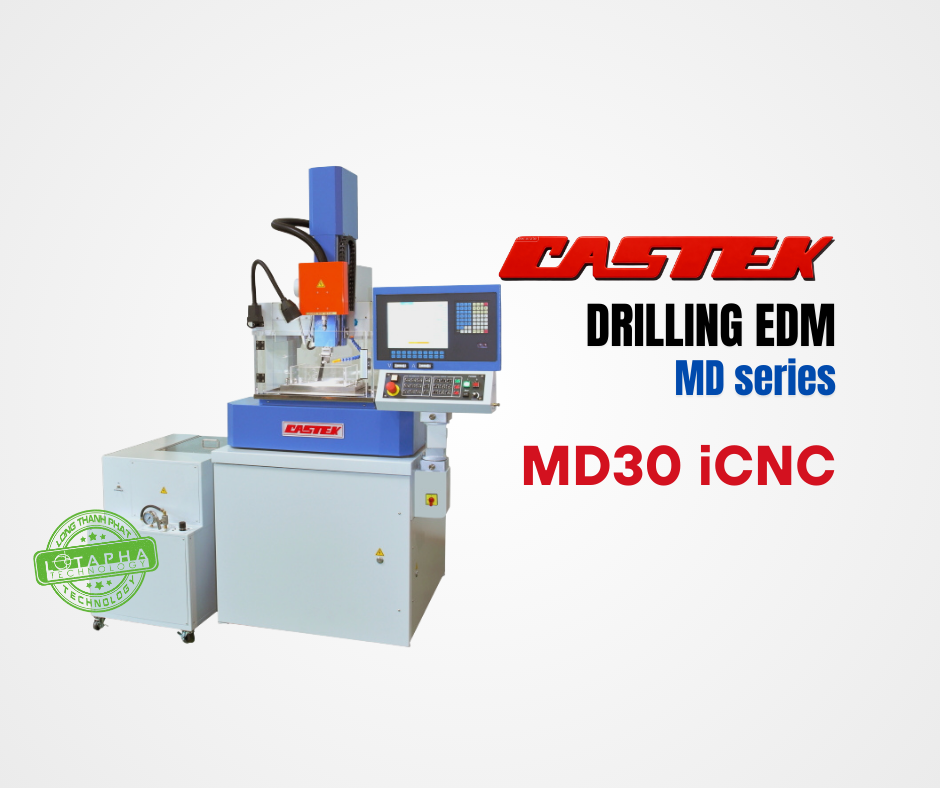

CASTEK | MD30 iCNC | MÁY XUNG LỖ EDM

CASTEK | MD30 iCNC | MÁY XUNG LỖ EDM

Mô tả

Features
  • High position accuracy
  • Small EDM gap
  • Auto electrode wear compensation
  • Accurate hole size drill (both size and depth)

Chi tiết

SPECIFICATIONS
ITEM   UNIT MD30 iCNC
X, Y Axis Travel manual mm 300x200
W Travel manual mm 15-200
Z Travel NC mm 360
Electrode Length   mm 400
Table Type   mm Flat Table
Table Size   mm 350x225
Max Workpiece Size   mm 450x500x200
Max Workpiece Weight   kg 50
Machine Size   mm 1410x1070x2200
Net Weight   kg 750

Standard Accessories
Panel Touch Panel
Depth Control Accurate blind hole, size and depth
EDGE Auto edge
Generator MD15A, dual IP control
Guide  SD0.2x1, GD 1.0x1
ATC20 Tool changer 20 PCS
Holder EH0115
Electrode BR 0.2x200mm x 20 PCS
BR 1x400mm x 20 PCS
Filtration WFLT50
Linear Scaler 1µm
