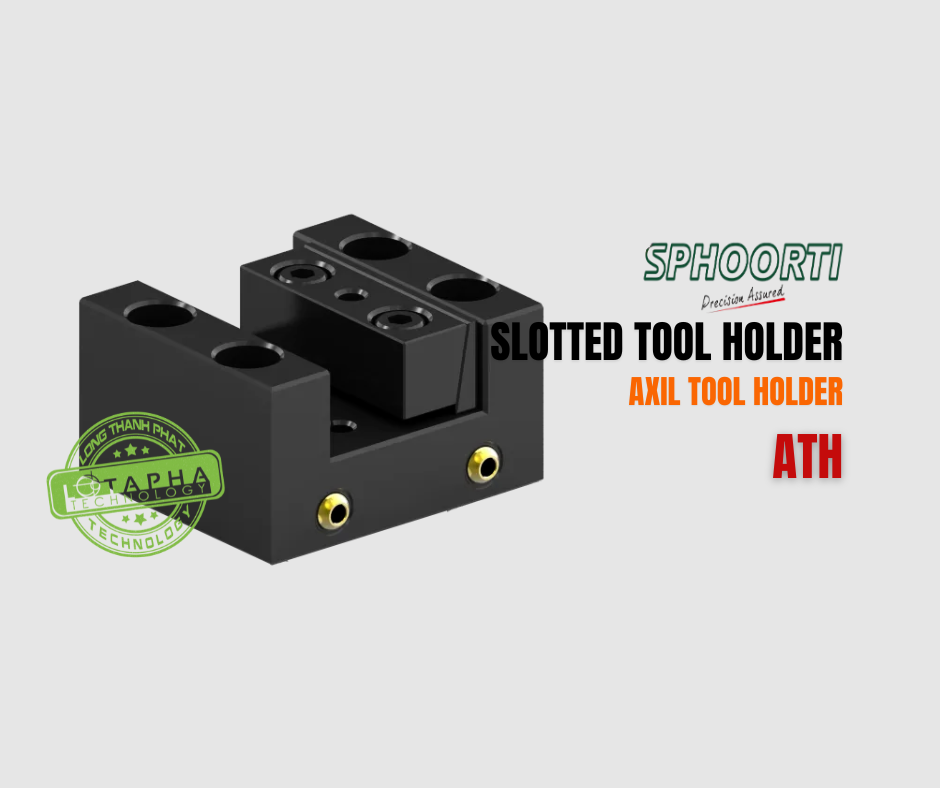

SPHOORTI | AXIAL TOOL HOLDER | ATH

Tải xuống Catalogue

Mô tả

Sphoorti is one of the trusted manufacturer and supplier to many industries (machine tool) in the whole world. Wherein, company is gradually growing, by providing superb quality products and also assists in improving the latest technology. Also, company expert team checks the production capacity, as well as tests these products thoroughly to make it suitable to sell to the final customers. They have separate Lab for Quality Checking, and the products we manufacture are usually scheduled as well as inspected randomly.

Chi tiết

Expert team of Sphoorti, are able to manufacture the superb quality VDI Tool Holder which uses high standard materials acquired from the certified vendors, and the whole holder is checked perfectly to find out the high quality.
Some of the useful features that make this tool holder unique are the corrosion-free, as well as the long-lasting service. While, the tool holder has been formed to work under higher pressure at less time period.

SPECIFICATIONS

Axial Tool Holder - ATH
CODE	A	B	C	D	E	F	G	H	J	TOOL DISC TYPE
ATH 12-12	12	12	24	12	56	31	43	4	12	TD 50-8-12
ATH 16-16	16	16	32	16	66	37	51	5	16	TD 50-8-16	TD 63-12-16
										TD 63-8-16	TD 63-12-16
ATH 20-20	20	20	40	16	76	45	60	5	20	TD 50-8-20	TD 80-12-20 HTD 80-12-20
										TD 63-8-20
										TD 80-8-20
										HTD 63-8-20
										HTD 80-8-20
ATH 25-25 L60	25	25	50	25	90	55	60	5	25	TD 63-8-25
ATH 25-25	25	25	50	25	92	55	80	5	25	TD 80-8-25	TD 100-12-25 TD 125-12-25 HTD 100-12-25 HTD 125-12-25
										TD 100-8-25
										HTD 80-8-25
										HTD 100-8-25
										HTD 125-8-25
ATH 32-32	32	32	64	25	114	65	95	5	32	TD 100-8-32	TD 125-12-32 TD 160-12-32 HTD 125-12-32
										TD 125-8-32
										TD 160-8-32
										HTD 125-8-32
ATH 40-40	40	40	80	25	142	75	95	5	40	TD 125-12-40
ATH 160-40	40	40	80	40	142	74	124	5	40	TD 160-8-40 TD 160-12-40

* Made out of Medium Carbon Steel, Forged & Toughened to 20 +- 2 HRC
* Customised design can be given upon request
* Inch series Axial Tool Holders are also available upon request
