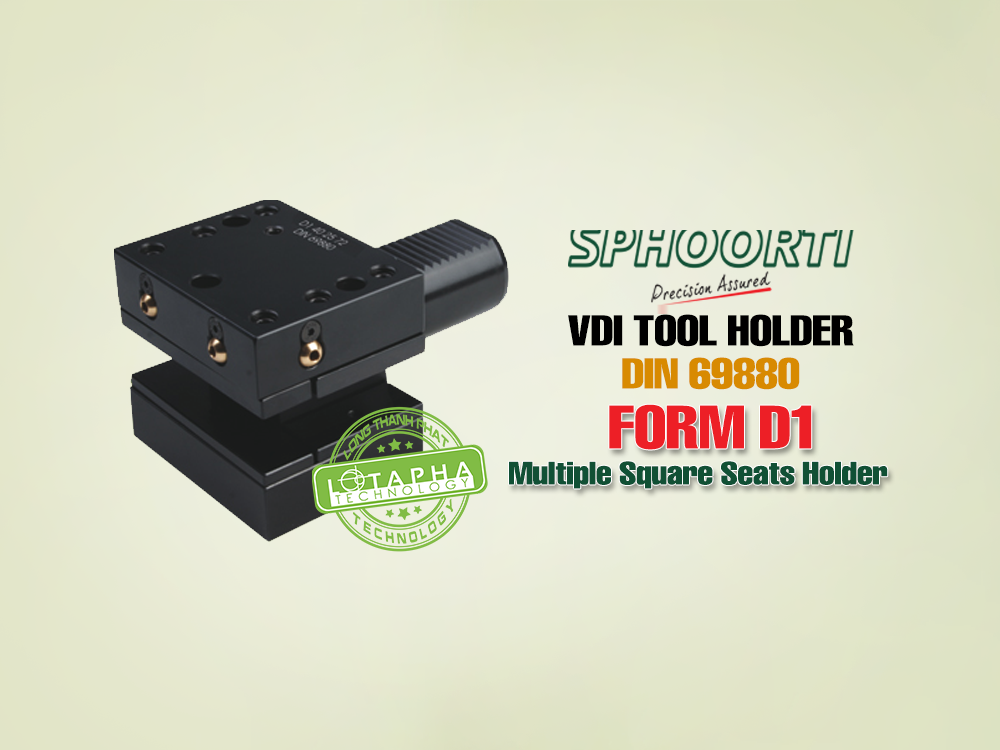

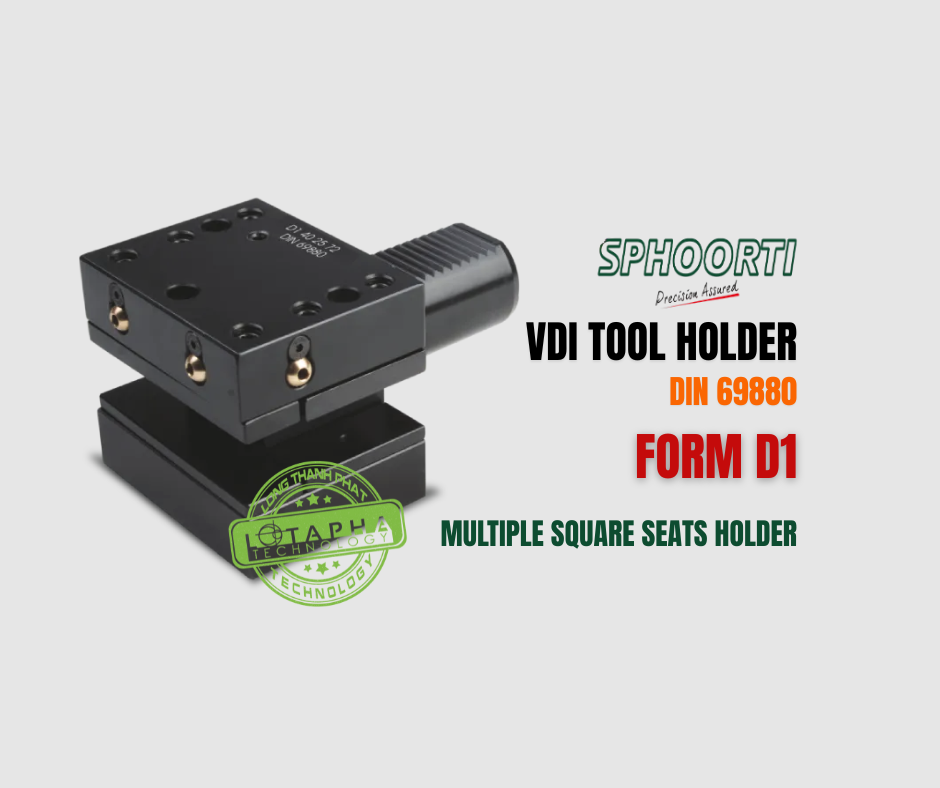

SPHOORTI | VDI TOOL HOLDER | MULTIPLE SQUARE SEATS HOLDER | FORM D1

Mô tả

FOR CNC TURNING CENTER & TURN MILL CENTER

Chi tiết

VDI TECHNOLOGY
  • The VDI system is a quick change clamping systems for each tool holder within the tool dics.
  • Tool changes can therefore be performed within seconds, rather than minutes as with the traditional block system.


FEATURES
  • VDI tool holders are made as per DIN 69880.
  • Tool holders are made by toughened steel C-45 as well as case hardned steel 20MnCr5.
  • Our standard supply will be in toughened steel C-45 for form A, B, C, D, E1, E2 & Z varieties.
  • Case hardened steel 20MnCr5 for form E4 & F varieties.
  • Our standard tool holder are fully blackened.
  • Shank white, teeth white, tool holder seating surface white will be given on request.
  • The tool holder shank portion are heat treated to 58+-2 HRC, and the teeths are ground.

SELECT OF VDI TOOL HOLDER


  • Spindle Rotation clockwise application of OD Turn and Face

  • Spindle Rotation clockwise application of Face and ID Bore




  • Spindle Rotation Anticlockwise application of OD Turn and Face

  • Spindle Rotation Anticlockwise application of Face and ID Bore




SPECIFICATIONS



MULTIPLE SQUARE SEATS HOLDER
CODE d1 b1 b2 b3 b4 h1 h3 h4 h6 l1 l2 α
D1 25 16 48 25 33 19 33 19 16/12 25 30 25 34 48 30°
D1 30 20 60 30 35 17 41 23 20/16 28 38 30 42 60 25°
D1 40 25 72 40 43 21 48 26 25/20 33 48 50 72
D1 50 32 85 50 50 26 55 31 32/25 35 60 60 85
D1 60 32 110 60 58 33 58 33 32/25 43 63 85 110
