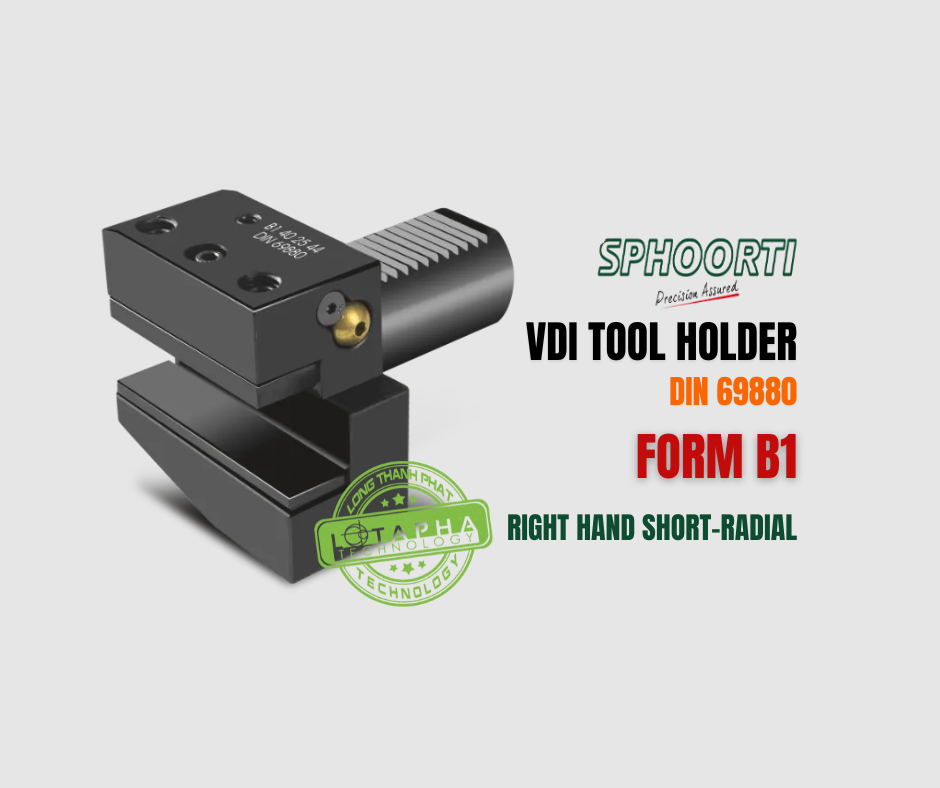

SPHOORTI | VDI TOOL HOLDER | RIGHT HAND SHORT-RADIAL | FORM B1

Mô tả

FOR CNC TURNING CENTER & TURN MILL CENTER

Chi tiết

VDI TECHNOLOGY
  • The VDI system is a quick change clamping systems for each tool holder within the tool dics.
  • Tool changes can therefore be performed within seconds, rather than minutes as with the traditional block system.



FEATURES

  • VDI tool holders are made as per DIN 69880
  • Tool holders are made by toughened steel C-45 as well as case hardned steel 20MnCr5.
  • Our standard supply will be in toughened steel C-45 for form A, B, C, D, E1, E2 & Z varieties.
  • Case hardened steel 20MnCr5 for form E4 & F varieties.
  • Our standard tool holder are fully blackened.
  • Shank white, teeth white, tool holder seating surface white will be given on request.
  • The tool holder shank portion are heat treated to 58+-2 HRC, and the teeths are ground.

SELECT OF VDI TOOL HOLDER


  • Spindle Rotation clockwise application of OD Turn and Face

  • Spindle Rotation clockwise application of Face and ID Bore




  • Spindle Rotation Anticlockwise application of OD Turn and Face

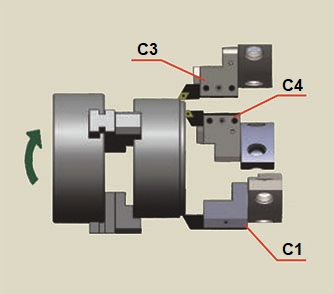

  • Spindle Rotation Anticlockwise application of Face and ID Bore




SPECIFICATIONS


RIGHT HAND SHORT-RADIAL FORM B1
CODE d1 b1 b2 b3 h1 h3 h4 h5 h6 h8 l1 l2 a
B1 16 12 24 16 42 23 5 12 15 15 20 22 19 13 24 30°
B1 20 16 30 20 55 30 7 16/12 19 19 25 30 23 16 30 30°
B1 25 16 30 25 55 30 7 16/12 23 23 25 30 25 16 30 30°
B1 30 20 40 30 70 35 10 20/16 26 22 28 38 30 22 40 25°
B1 40 25 44 40 85 43 13 25/20 35 30 33 48 22 44
B1 50 32 55 50 100 50 16 32/25 42 35 35 60 30 55
B1 60 32 60 60 125 63 16 32/25 46 43 43 63 30 60
