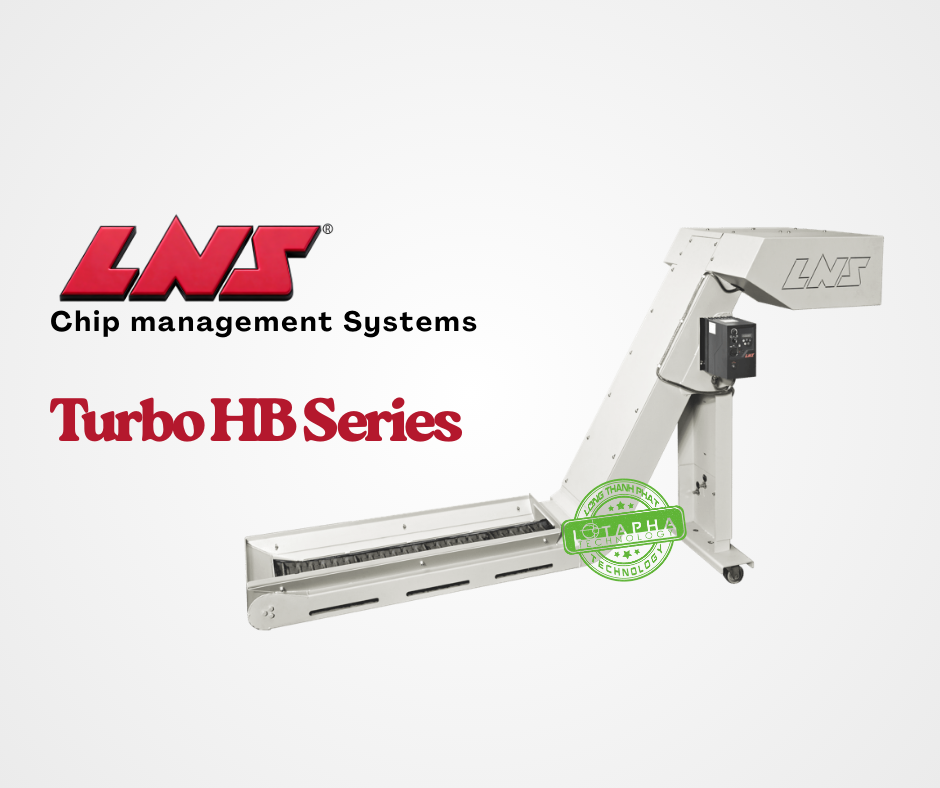

LNS | BĂNG TẢI XỬ LÝ PHÔI | TURBO HB SERIES

THÔNG SỐ KỸ THUẬT

CONVEYOR FRAME DIMENSIONS (INCHES)
TYPE	STANDARD DUTY	HEAVY DUTY		SUPER HEAVY DUTY		2' HEAVY DUTY OR SUPER HEAVY DUTY
SIDEWING HEIGHT	0.75”	1.0"	1.5"	1.0"	1.5"	1.00"
W - WIDTH	BW + 2” to 2.5”	BW + 3.62”	BW + 3.875”		+ 4.19	BW + 3.875”
T- HEIGHT	4.84”	6.69”	8.31”	7.00"	8.62"	5.91"
L-LEG LOCATION	16.19"	23.25"

VARIABLE	DESCRIPTION	DIMENSION
A	BELT WIDTH
B	DISCHARGE HEIGHT TO FLOOR
C	HORIZONTAL SECTION LENGTH
D	INCLINE ANGLE	60 45
E	HORIZONTAL SECTION BELOW FLOOR
F	HORIZONTAL SECTION ABOVE FLOOR
G	BAFFLE HEIGHT (MAX)
H	BAFFLE WIDTH (MAX)
