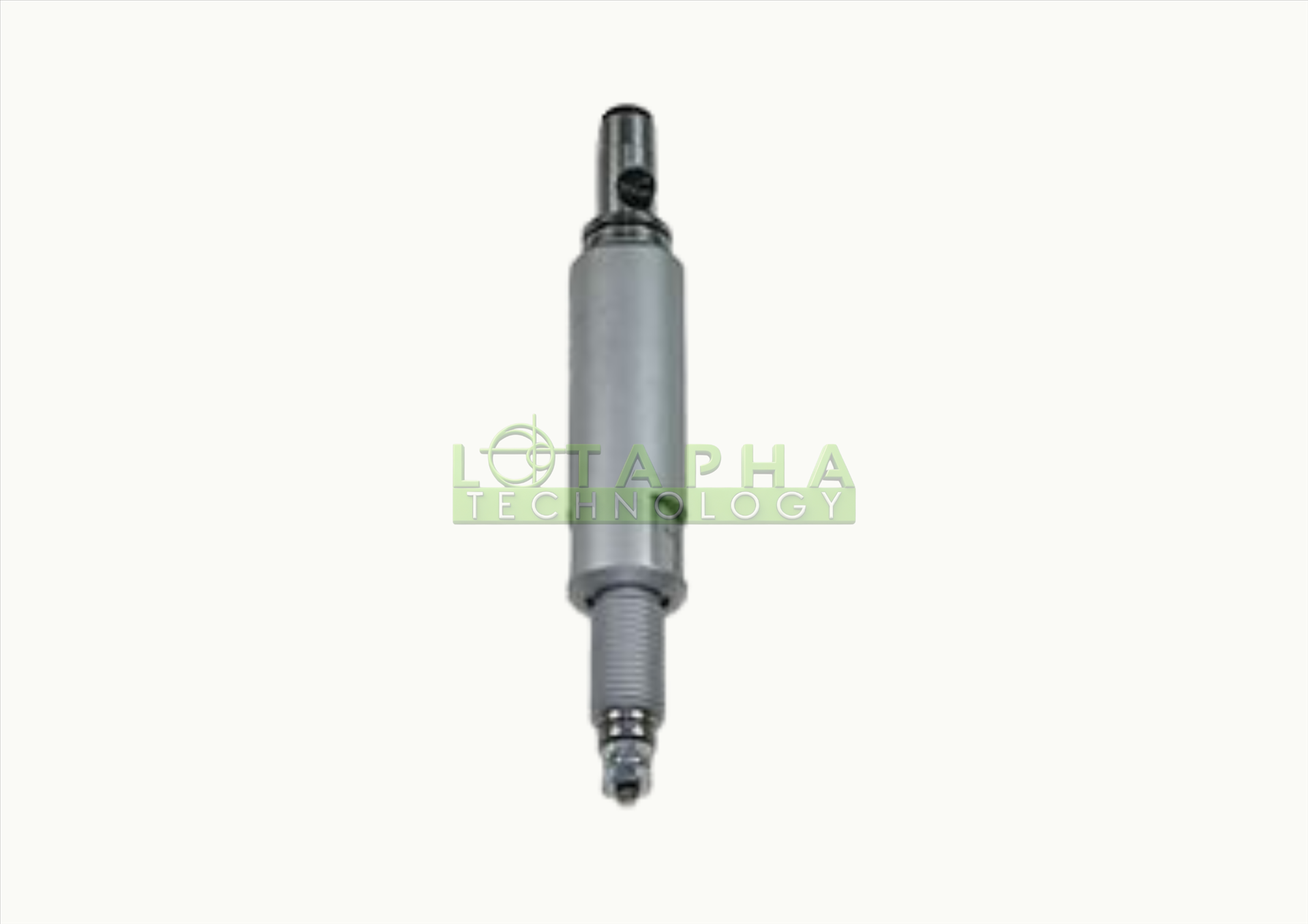

CHUCK JOINT IKURA 15NF

Model: IKURA NF SERIES CHUCK JOINT
Revolvint tip size: ɸ16.3mm ~ɸ21.0mm

SPECIFICATION

Model	Outside DIA	Total Lenght	Finger Chuck Regulatory Teeth	Plusher Regulatory Teeth	Remark
16#NF	16mm	68.0mm	M10P1.0	M14XP1.0
16#	16.3mm	119.5mm	M12P1.25	PIN=6.0mm
17#	17.0mm	119.5mm	M12P1.25	PIN=6.0mm
19#	19.0mm	119.5mm	M12P1.25	PIN=6.0mm
20#	20.0mm	119.5mm	M12P1.25	PIN=6.0mm
21#	20.5mm	119.5mm	M12P1.25	PIN=6.0mm
