KHỚP NỐI

Mô tả

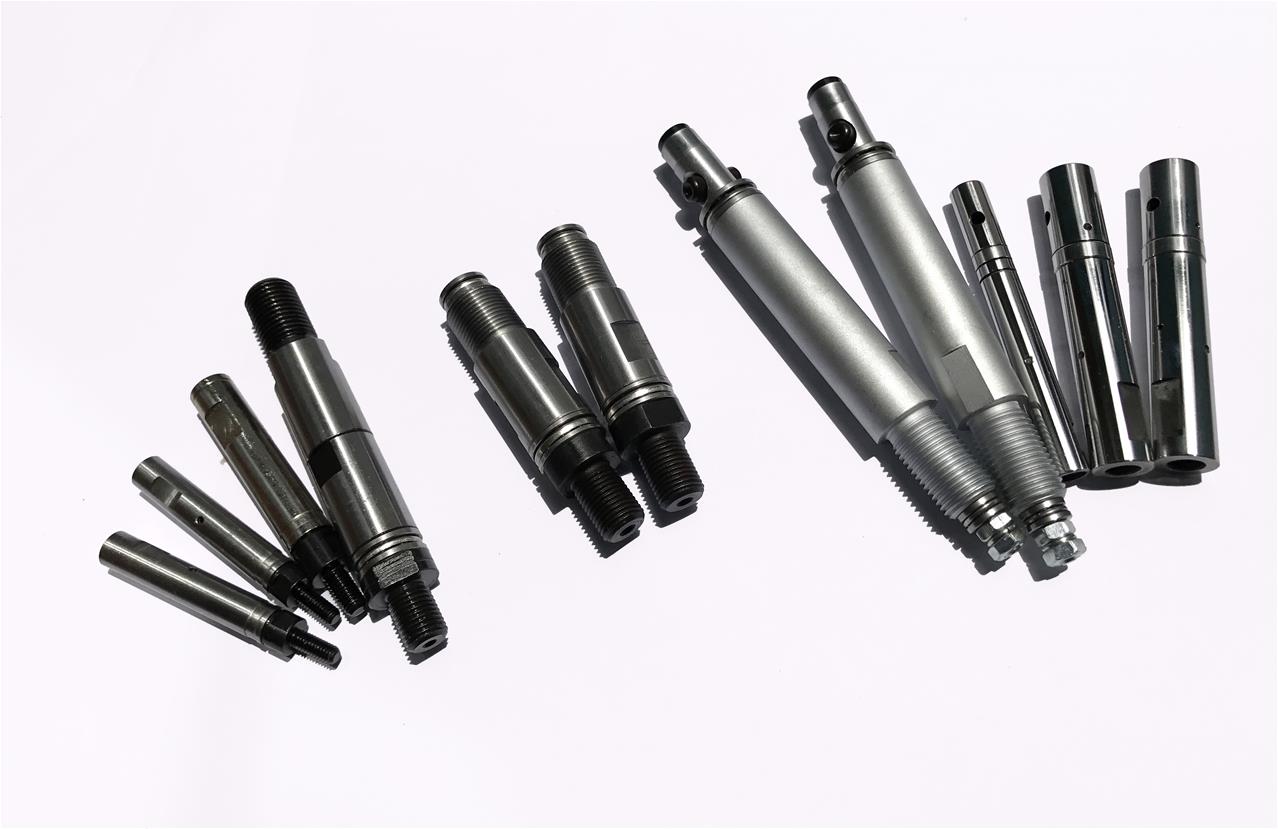

Chúng tôi đang cung cấp tất cả các loại khớp nối chấu kẹp phôi cho tát cả các dòng máy cấp phôi tự đông như Bar feeder, IKURA BRATOP, APLS tools, LNS (FEDEK) Machines, IEMCA, Barload Machines.

Chi tiết

LNS ROTATING JOINT SPECIFICATIONS
STT	LNS No.	MODEL	OD	TOTAL LENGTH	FINGER THREAD	PUSHER THREAD	TYPE
1		7#	7mm	65.3mm	M4P0.7	M6P0.75	1
2		7#	8mm	65.3mm	M4P0.7	M6P0.75	1
3		7#	8mm	61.5mm	M4P0.7	M6P0.75	2
4	FL07850-7#	7#	7mm	57.5mm	M4P0.7	M6P0.75	3
5		7#	8mm	57.5mm	M4P0.7	M6P0.75	3
6		8.5#	9.5mm	59.5mm	M5P0.8	M7P0.75	4
7		8.5#	10mm	59.5mm	M5P0.8	M7P0.75	5
8		8.5#	10mm	61.1mm	M5P0.8	M7P0.75
9	FL07850-8.5#	8.5#	10mm	64.5mm	M5P0.8	M7P0.75	6
10	FL07120	12#	12mm	64.5mm	M5P0.8	M7P0.75	7
11		20#	15mm	92.2mm	M9P1.0	M12P1.0	8
12		20#	15mm	92.2mm	M9P1.0	M12P1.0	9
13	FL15800	20#	15mm	92.2mm	M9P1.0	M12P1.25	10
14		20#	20.5mm	207.5mm	M10P1.0	PIN=4.0mm	11
15		22#	22.5mm	207.5mm	M10P1.0	PIN=4.0mm	11
16		23#	23.5mm	207.5mm	M10P1.0	PIN=4.0mm	11
17	SNF27000	25#	25.5mm	207.5mm	M10P1.0	PIN=5.0mm	12
18	SNF27000	27#	27.5mm	207.5mm	M10P1.0	PIN=5.0mm	12
19		32#	32.5mm	165.0mm	M25P1.5	PIN=5.0mm	13
20		32#	32.5mm	165.0mm	M25P1.5	M27	14
21		35#	35.5mm	165.0mm	M25P1.5	PIN=6.0mm	13
22		35#	35.5mm	165.0mm	M25P1.5	M29	14
23		37#	37.5mm	165.0mm	M25P1.5	PIN=6.0mm	13
24		38#	38.5mm	165.0mm	M25P1.5	PIN=6.0mm	13
25		42#	42.5mm	165.0mm	M25P1.5	PIN=6.0mm	15
26		42#	42.5mm	165.0mm	M25P1.5	M34	16
27		45#	45.5mm	165.0mm	M25P1.5	PIN=6.0mm	15
28		45#	45.5mm	165.0mm	M25P1.5	M38	16
29		51#	51.5mm	165.0mm	M25P1.5	PIN=6.0mm	17
30		51#	51.5mm	165.0mm	M25P1.5	M42	18
