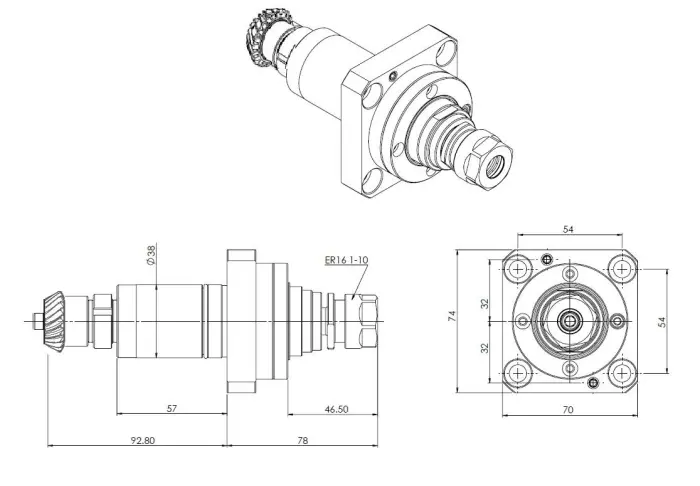

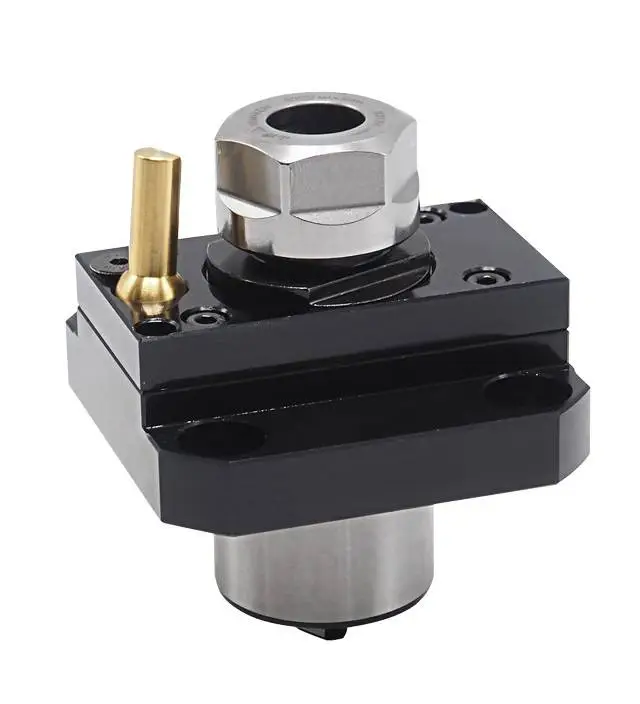

MIYANO BMT38 Axial Tapping unit ER16 for BNE-34S3/BNE-51S
Tapping collet: ER16
Bolt Pattern: 54X54mm

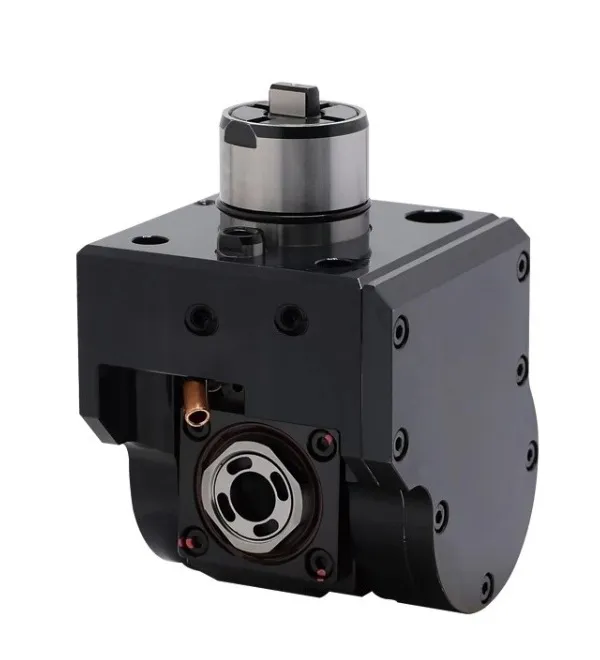

MIYANO BMT38 Radial Drilling-Milling unit ER16 for BNJ DV70A000
Speed ratio: 1:1 / 1:3
Maximum speed: 6000RPM / 9000RPM
Bolt Pattern: 35 x 66mm
Tool clamping: ER16A
Coolant: External
CenterLine: 85mm
Reference code: DV70A000
MIYANO BMT38 Axial Drilling-Milling unit ER16 for BNJ-51/S/SY6
Speed ratio: 1:1 / 1:3
Maximum speed: 6000RPM / 9000RPM
Tool clamping: ER16
Reference code: DV70B001, DV70B000

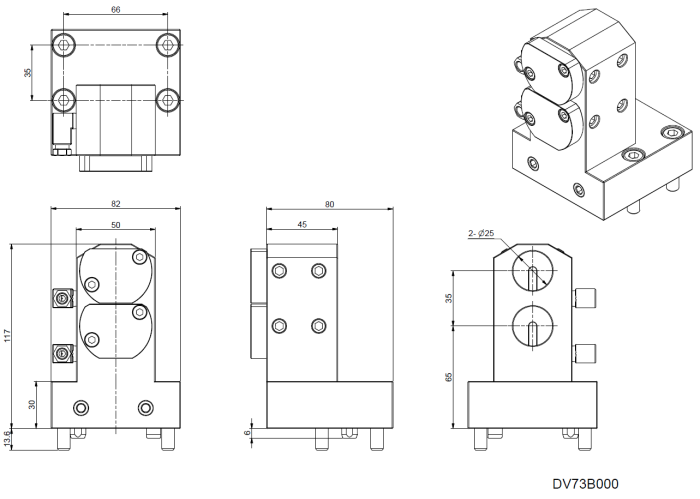

MIYANO BMT38 Boring bar holder Double 25mm for BNJ51 (DV73B000)
Bolt Pattern: 35X66mm
Tool clamping: 2 x Ø25mm
Coolant Through: YES
Reference code: DV73B000

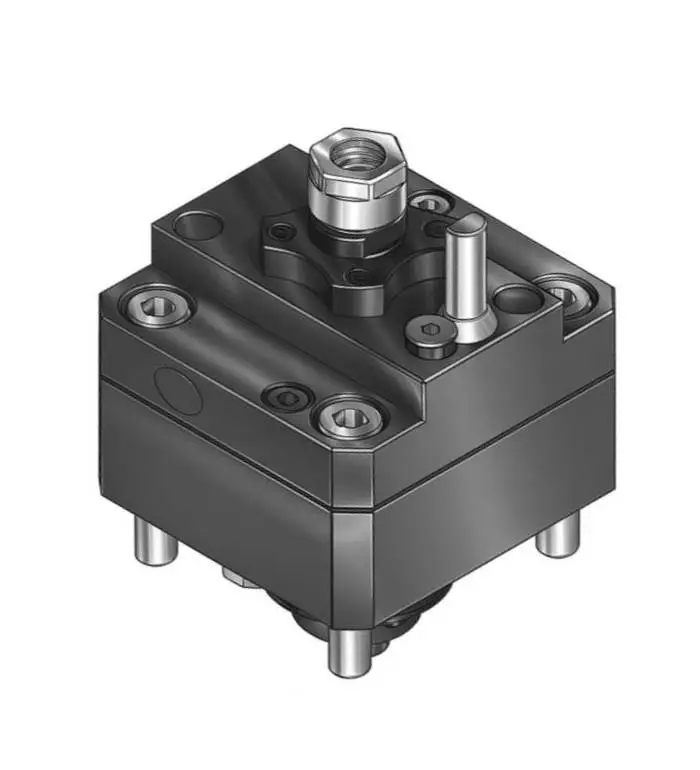

MIYANO BMT38 Axial Drilling-Milling unit ER16A for BNA BNC, CG70J000
Speed ratio: 1:1 / 1:3
Maximum speed: 8000RPM / 18000EPM
Bolt Pattern: 52 x 56mm
Tool clamping: ER11 / ER16 / ER20
Coolant: External
Reference code: CG70J000

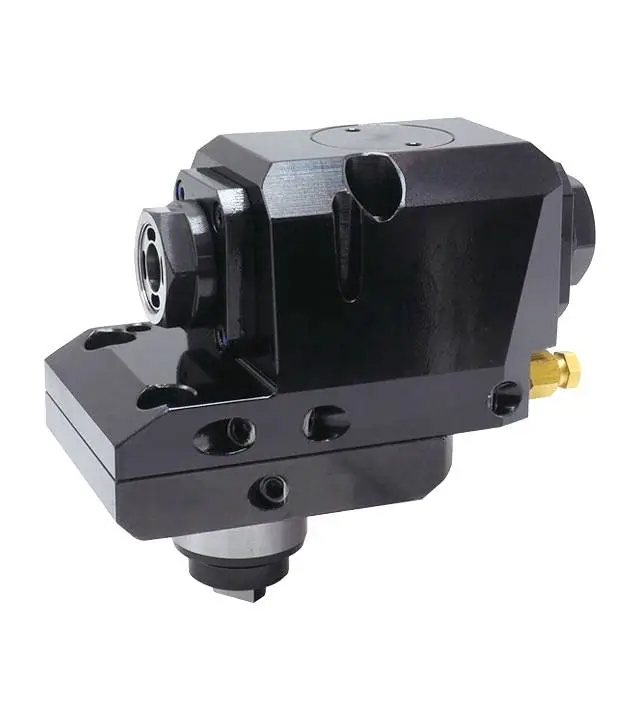

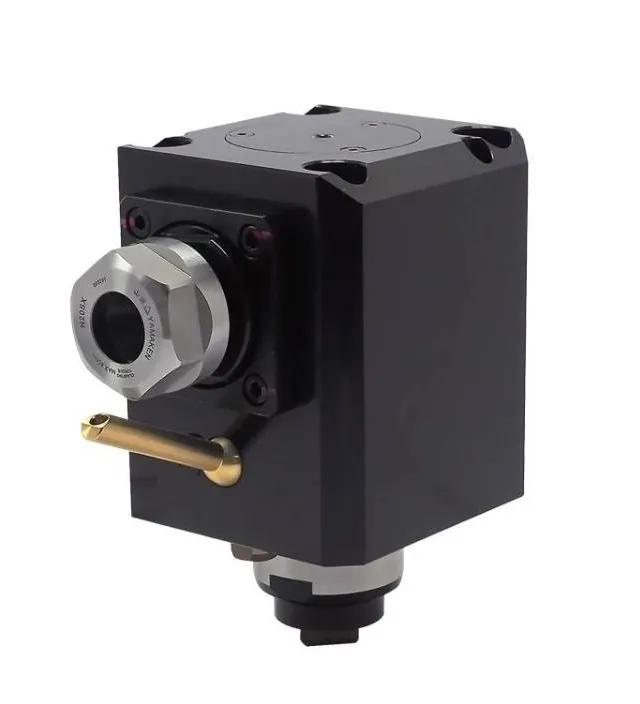

MIYANO BMT38 Radial Drilling-Milling unit ER16 internal coolant (CG70C000)
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 52 x 56mm
Tool clamping: ER16 / ER20 / ER25
Coolant: External / Internal
Reference code: CG70C000, CG70L000

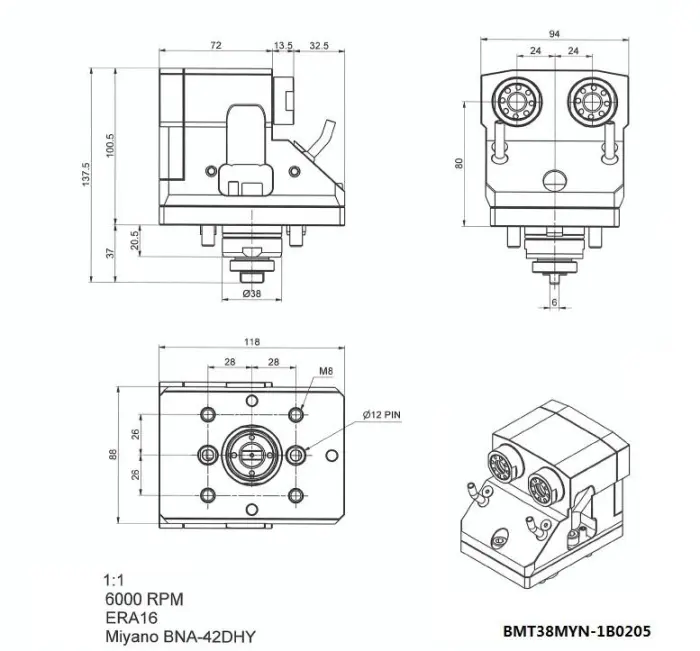

MIYANO BMT38 Radial Drilling-Milling unit Twin ERA16
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 52 x 56mm
Tool clamping: 2 x ERA16
Coolant: External

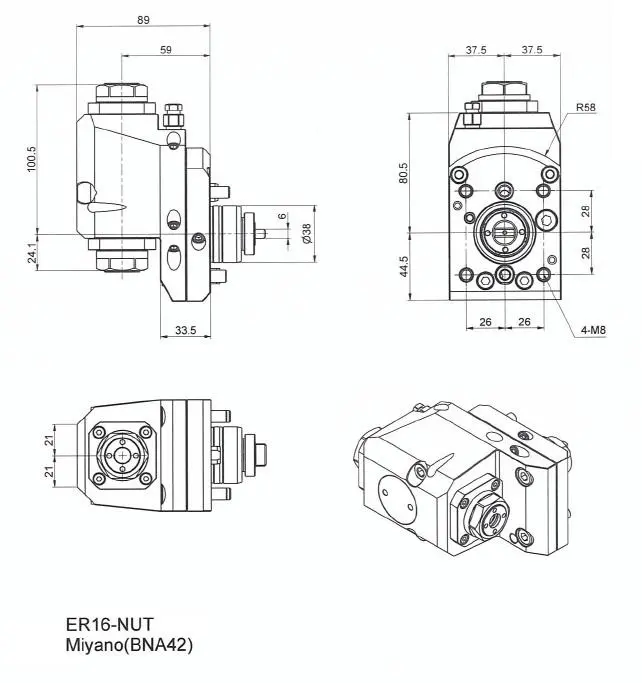

MIYANO BMT38 Radial Drilling-Milling unit ER16-NUT Offset
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 52 x 56mm
Tool clamping: 2 x ER16
Coolant: External
Reference code: CG70E000, 8 039 34 007

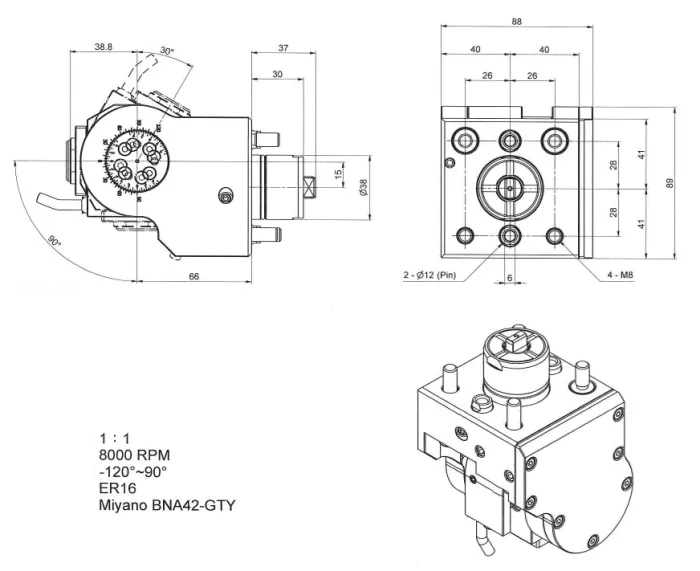

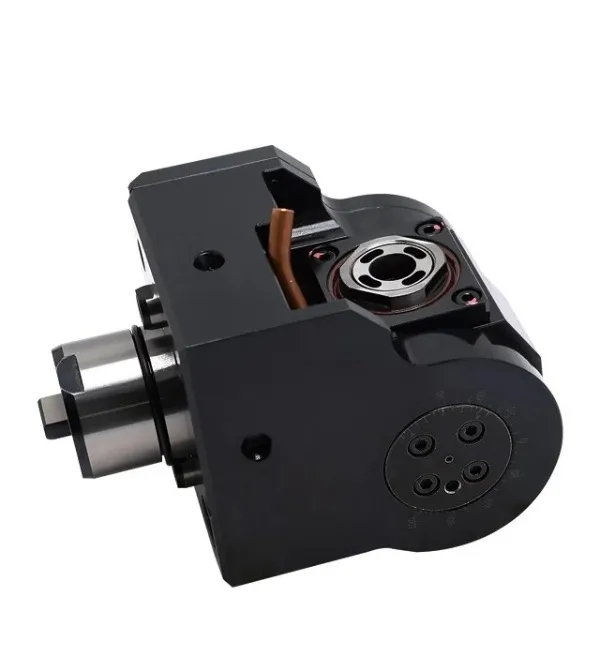

MIYANO BMT38 Radial Drilling-Milling unit ER16A Angle adjustable: -120°~+90°
Speed ratio: 1:1
Maximum speed: 8000RPM
Bolt Pattern: 52 x 56mm
Angle adjustable: -120°~+90°
Tool clamping: ER16
Reference code: 8 043 34 002
Machine: MIYANO BNA-34/42 C/S/MSY/DHY/GTY

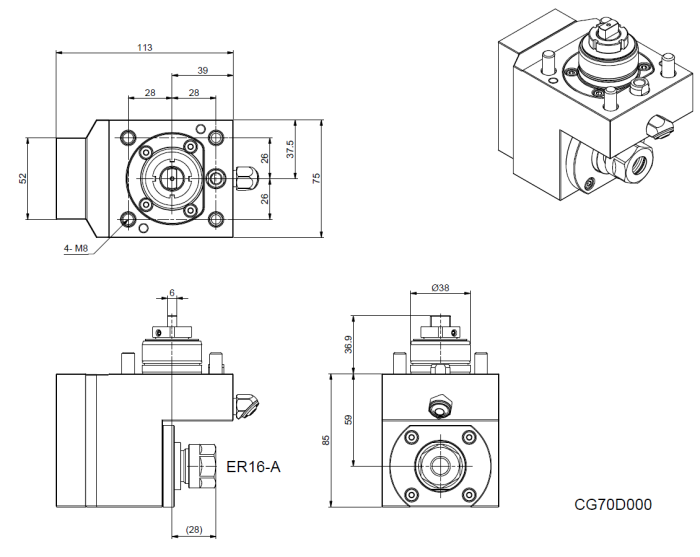

MIYANO BMT38 Radial Drilling-Milling unit ER16 Offset for BNA (CG70D000)
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 52 x 56mm
Tool clamping: ER16
Coolant: External
Reference code: CG70D000

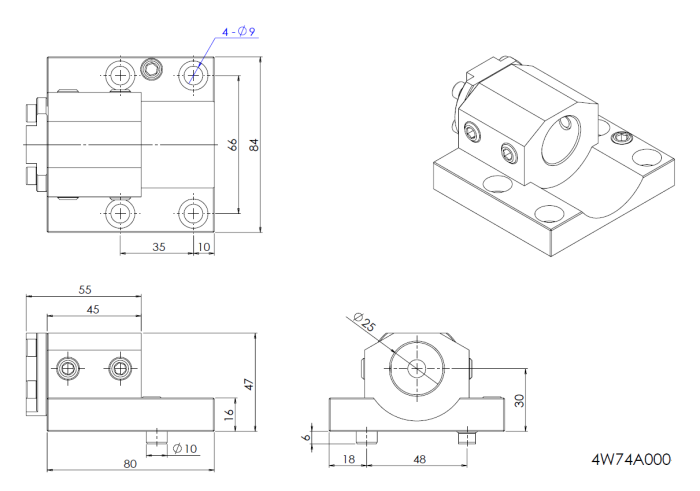

MIYANO BMT38 Boring bar holder 25mm for BNJ51 (4W74A000)
Bolt Pattern: 35 x 66mm
Tool clamping: Ø25mm
Reference code: 4W74A000

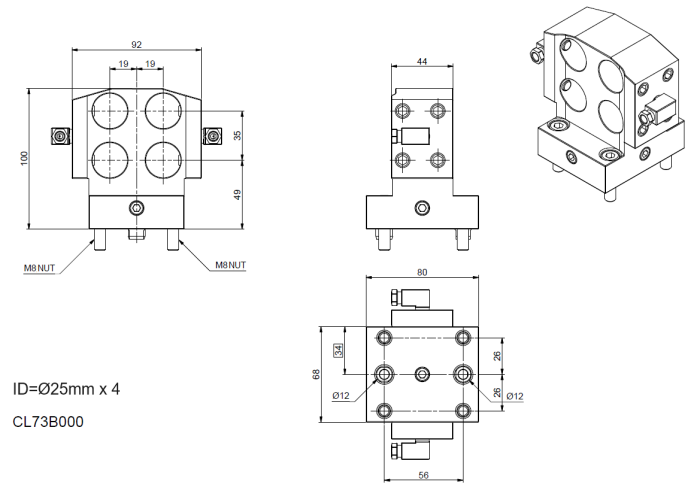

MIYANO BMT38 Boring Bar holder QUADRUPLE 25mm for BNA (CL73B000)
Bolt Pattern: 52 x 56mm
Tool clamping: 4 x Ø25mm
Coolant: External
Reference code: CL73B000

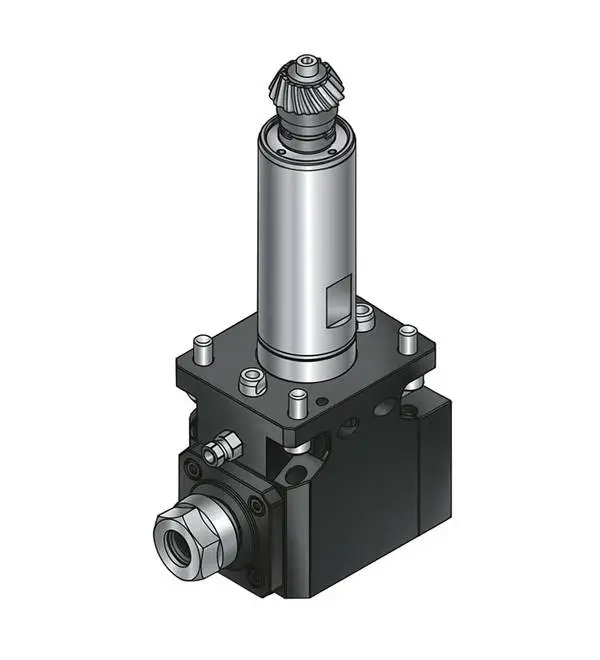

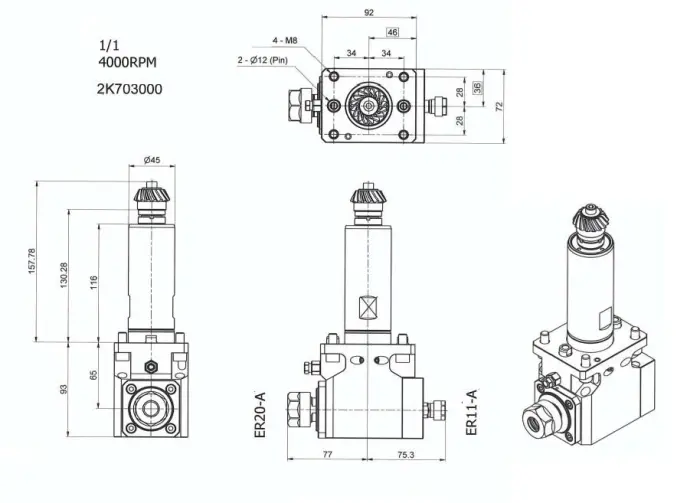

MIYANO BMT45 RADIAL DRILLING MILLING Double ER20/ER11 FOR MIYANO BNJ-34/42SY (2K703000)
Speed ratio: 1:1
Maximum speed: 4000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: ER20A/ER11A
CenterLine height: 65mm
Coolant: External
Reference code: 2K703000

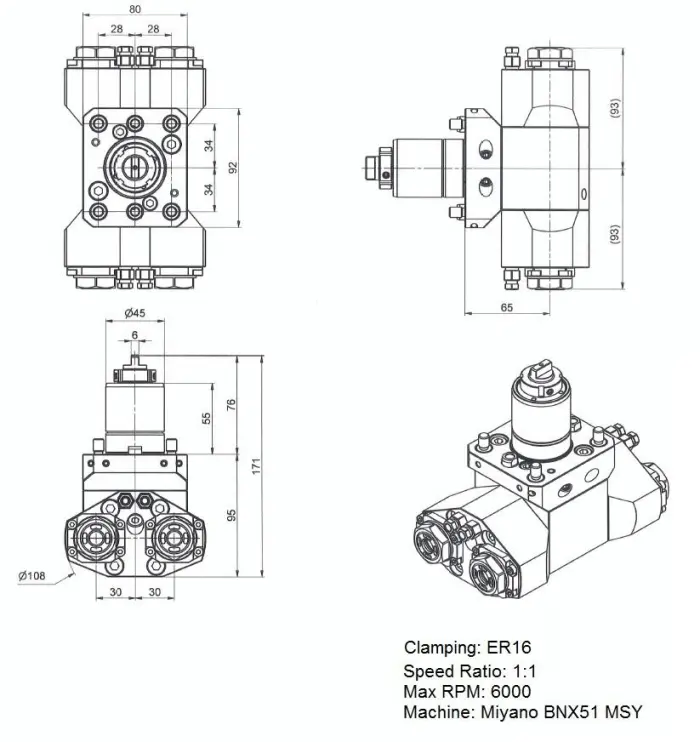

MIYANO BMT45 RADIAL DRILLING MILLING UNIT ER16x4
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: 2xER16 + 2xER16
CenterLine height: 65mm
Coolant: External
MIYANO BMT45 RADIAL DRILLING MILLING DOUBLE ER25 integrated FOR MIYANO ABX/BND/BNE/BNJ
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: ER25
CenterLine height:65mm
Coolant: External
MIYANO BMT45 RADIAL DRILLING MILLING ER25 HEIGHT 65mm for MIYANO ABX/BND/BNE/BNJ
Speed ratio: 1:1 / 1:2
Maximum speed: 6000 / 12000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: ER25
CenterLine height: 65mm
Coolant: External
Reference code: 2X785200, 2W785250

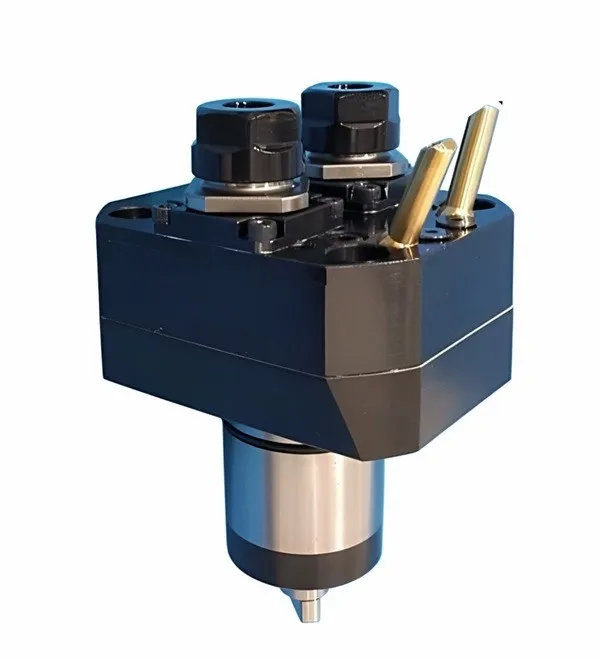

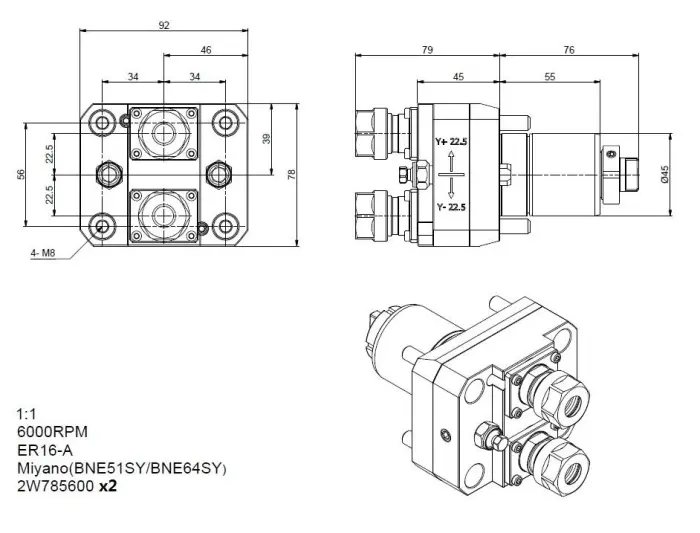

MIYANO BMT45 AXIAL DRILLING MILLING, DOUBLE ER16, Y-OFFSET, FOR MIYANO ABX/BND/BNE/BNJ (2W785600)
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: 2 x ER16
Coolant: External
Reference code: 2W785600 x 2
MIYANO BMT45 ADJUSTABLE AXIAL DRILLING MILLING FOR MIYANO ABX/BND /BNE/BNJ/BNX
Speed ratio: 1:1
Maximum speed: 4000RPM
Angle adjustable: ±90°
Tool clamping: ER16/ER20

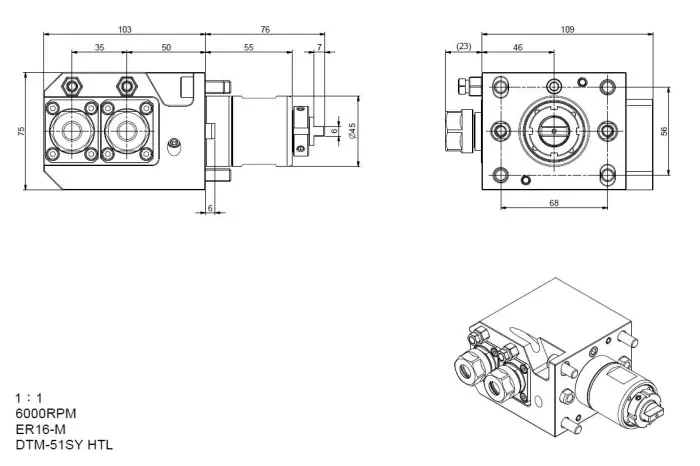

MIYANO RADIAL DRILLING MILLING BMT45 DOUBLE ER16M FOR DTM-51SY HTL
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: ER16
CenterLine height: 50/85mm
Coolant: External / Internal
MIYANO BMT45 RADIAL DRILLING MILLING UNIT ER16x4
Speed ratio: 1:1
Maximum speed: 6000RPM
Bolt Pattern: 56 x 68mm
Tool clamping: 2xER16 + 2xER16
CenterLine height: 65mm
Coolant: External
