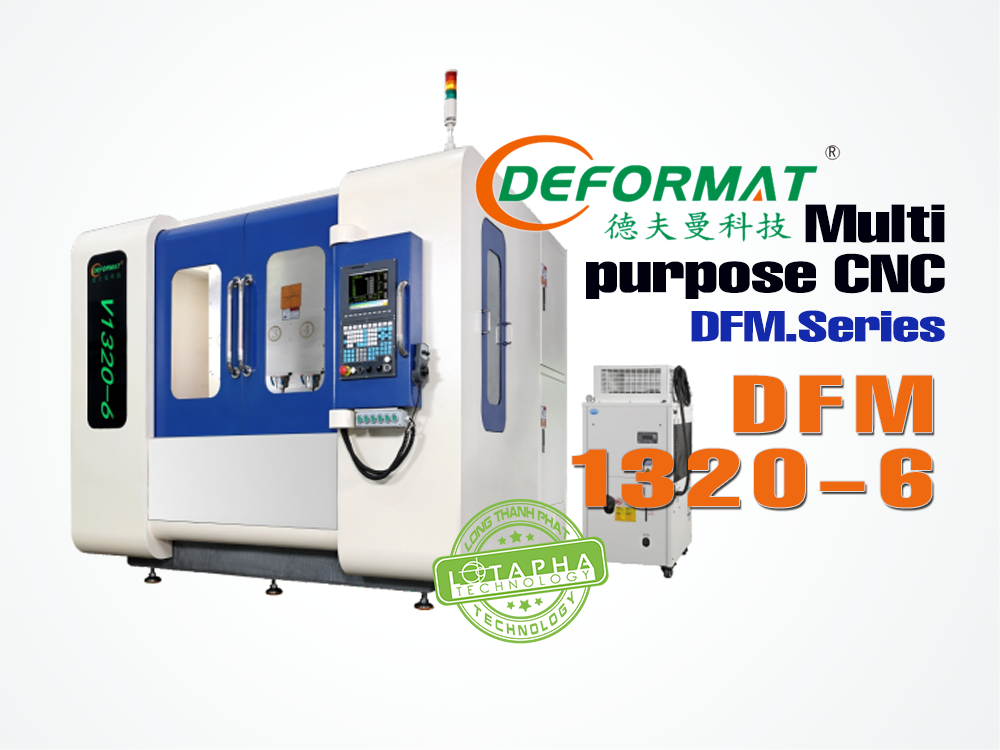

Multi - spindle DFM CNC
DFM - 1320 - 6
Multi - purpose CNC

Main body is combined with natural marble and casted iron part for high stability.

This machine tool has high speed, high precision, high efficiency, and strong comprehensive processing capability and is suitable for high-speed milling processing of ceramics, zirconia, silicon carbide, 3C product and small hardware.

Chi tiết

Table Content
1. Features
  1.1
  1.2
2. Specifications
  2.1
  2.2
3. Accessories
4. Product Media

High speed, High precision, High efficiency

Main body is combined with natural marble and casted iron part for high stability. This machine tool has high speed, high precision, high efficiency, and strong comprehensive processing capability and is suitable for high-speed milling processing of ceramics, zirconia, silicon carbide, 3C product and small hardware.

Features

6 Z-axis independent servo control, separated intelligent correction of workpiece position and dimension deviations, improve the consistency of processing dimensions.
6 Z-axis integrated in a gantry mechanism, good rigidity with high stability.
The hidden mechanism is a fully enclosed chain disk type chain tool magazine, compact and stable. Each tool magazine is equipped with 20 tools.
Integrated high-pressure casting direct-connection spindle sliding table.
Double protection configuration for ball screws and guide rails.
Self-lubricating guide rail ball screw system. Perspective
Perspective door and tempered glass window for double protection. Twin doors with silent guide rail and protective guide rail device.
The electric cabinet is equipped with cool air conversion system.

Standard Specification & Accessories

Specifications
Subject	Unit	DFM - 1320 - 6 Multi-purpose CNC	Accessories
X-axis Travel	mm	220	Independent Intellectual Property
Y-axis Travel	mm	400	Main body structure for 6 spindles
Z1-axis Travel	mm	200	Moving mechanism of X/Y/Z axis for 6 spindles CNC
Z2-axis Travel	mm	200	Double disk magazine for 6 spindles
Z3-axis Travel	mm	200	Chain magazine for 6 spindles
Z4-axis Travel	mm	200	Standard
Z5-axis Travel	mm	200	Magazine
Z6-axis Travel	mm	200	Numerical control system
Table Dimension	mm	1,320 x 500	Spindle cooling system
T-slot spacing	mm	150	Manual pulse generator
T-nut	-	M8	Linear guide & ball screw lubrication system
Maximum table load	kg	200	Cutting fluid circulation tank
Positional accuracy	-	± 0.005mm / 300min	Electric cabinet cooling system
Repeated positional accuracy	-	± 0.005mm / 300min	Tool presetter
Number of axis	-	11 axes (magazine included)	Optional
Spindle taper bore	-	ISO 25	Oil mist collector
Distance between center of spindles	mm	220mm ± 0.05 mm	Increase or decrease tools in magazine
Distance between spindle nose & table	mm	80 - 280	Power/Speed/Torque of spindle on request
Chain magazine	-	6 x 20 (tools)	Filtering system
Maximum tool diameter	mm	10	Chip conveyor
Maximum tool length	mm	50	travel of Z axis can be extended on
Rapid travel speed of 3 axes	mm/min	30000	request
Feeding speed	mm/min	1-15,000	Filtering system
Tool changing	-	Pneumatic	Chip conveyor
Pressure	kgf/cm2	6
Spindle cooling	-	Water
Servo motor X/Y/Z	-	1.8kW/1.8kW/0.75kW
Rated spindle power	kW	4.5 KW
Spindle speed	rpm	30000
Rated spindle torque	Nm	3,7 N.m
Rated voltage	-	AC 380V
Total power	kW	41.0 KW
Total weight	kg	Approx. 6,800
