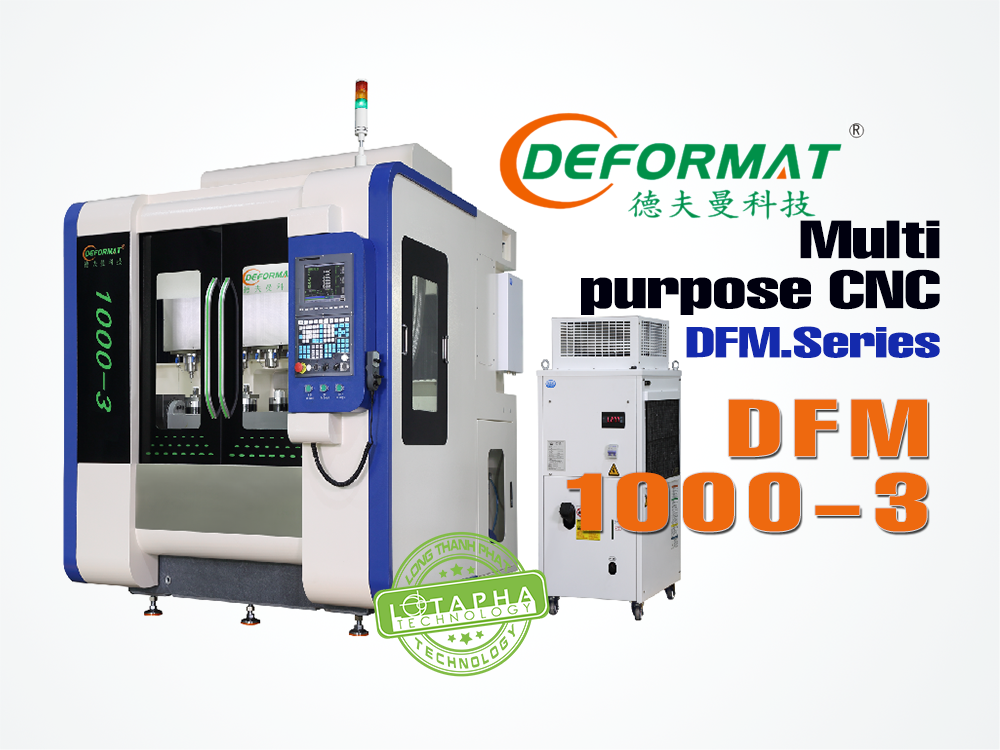

Multi - spindle DFM CNC
DFM - 1000 - 3
Multi - purpose CNC

Main body is combined with natural marble and casted iron part for high stability. 3 Z axes are installed on the same table with independent servo magazine. This machine tool has high speed, high precision, high efficiency, and strong comprehensive processing capability and is suitable for batch production such as high-speed milling, cutting, drilling, threading, etc.

Chi tiết

Table Content
1. Features
  1.1
  1.2
2. Specifications
  2.1
  2.2
3. Accessories
4. Product Media

High speed, High precision, High efficiency

Main body is combined with natural marble and casted iron part for high stability. 3 Z axes are installed on the same table with independent servo magazine. This machine tool has high speed, high precision, high efficiency and strong comprehensive processing capability and is suitable for batch production such as high-speed milling, cutting, drilling, threading, etc.

FEATURES

3 Z-axis independent servo control, separated intelligent correction of tool on Z-axis for deviations of workpiece position and dimension, improve the consistency of processing dimension.
3 Z-axis integrated in a gantry mechanism, good rigidity with high stability. The hidden mechanism is a fully enclosed chain disk type chain tool magazine, compact and stable. Each tool magazine is equipped with 20 tools.
Integrated high-pressure casting direct-connection spindle sliding table.
Double protection configuration for ball screws and guide rails.
Self-lubricating guide rail ball screw system.
Perspective door and tempered glass window for double protection. Twin doors with silent guide rail and protective guide rail device.
The electric cabinet is equipped with cool air conversion system.

STANDARD SPECIFICATION & ACCESSORIES

SPECIFICATIONS
Subject	Unit	DFM - 1000 - 3 Multi-purpose CNC	Accessories
X-axis Travel	mm	350	Independent Intellectual Property
Y-axis Travel	mm	400	Inner support fixtures for 3 spindles
Z1-axis Travel	mm	300	Tool fixture for 3 spindles
Z2-axis Travel	mm	300	Chain magazines for 3 spindles
Z3-axis Travel	mm	300	Standard
Table Dimension	mm	1,000 x 500	Tapping
T-slot spacing	mm	105	Magazine
T-nut	-	M8	Numerical control system
Max. table load	kg	300	Spindle cooling system
Positional accuracy	-	± 0.003mm / 300min	Manual pulse generator
Repeated positional accuracy	-	± 0.003mm / 300min	Linear guide & ball screw lubrication system
Number of axis	-	7 axes (magazine included)	Cutting fluid circulation tank
Spindle taper bore	-	ISO 25	Electric cabinet cooling system
Distance between center of spindles	mm	350mm ± 0.05 mm	Tool presetter
Distance between spindle nose & table	mm	85 - 385	Optional
Tapping Aluminum parts	-	Max.m6 / Min.m1	4 axes (developed by Deformat)
Tapping steel parts	-	Max.m4, Min.m1	Touch probes
Chain magazine	-	3 x 20 (tools)	Oil mist collector
Maximum tool diameter	mm	ER20-10mm	Increase or decrease tools in magazine
Maximum tool length	mm	75	Power/Speed/Torque of spindle on request
Rapid travel speed of 3 axes	mm/min	30000	Filtering system
Feeding speed	mm/min	1-15,000
Tool changing	-	Pneumatic
Air Pressure	kgf/cm2	6
Spindle cooling	-	Water cooled
Servo motor X/Y/Z	-	1.8kW/1.8kW/ 0.75kW/0.75kW
Total weight	kg	Approx. 4,900
Rated power of spindle	kW	4.5kW
Spindle speed	rpm	30000
Rated spindle torque	Nm	3.7
Rated voltage	-	AC 380V
Total power	kW	24.5kW
