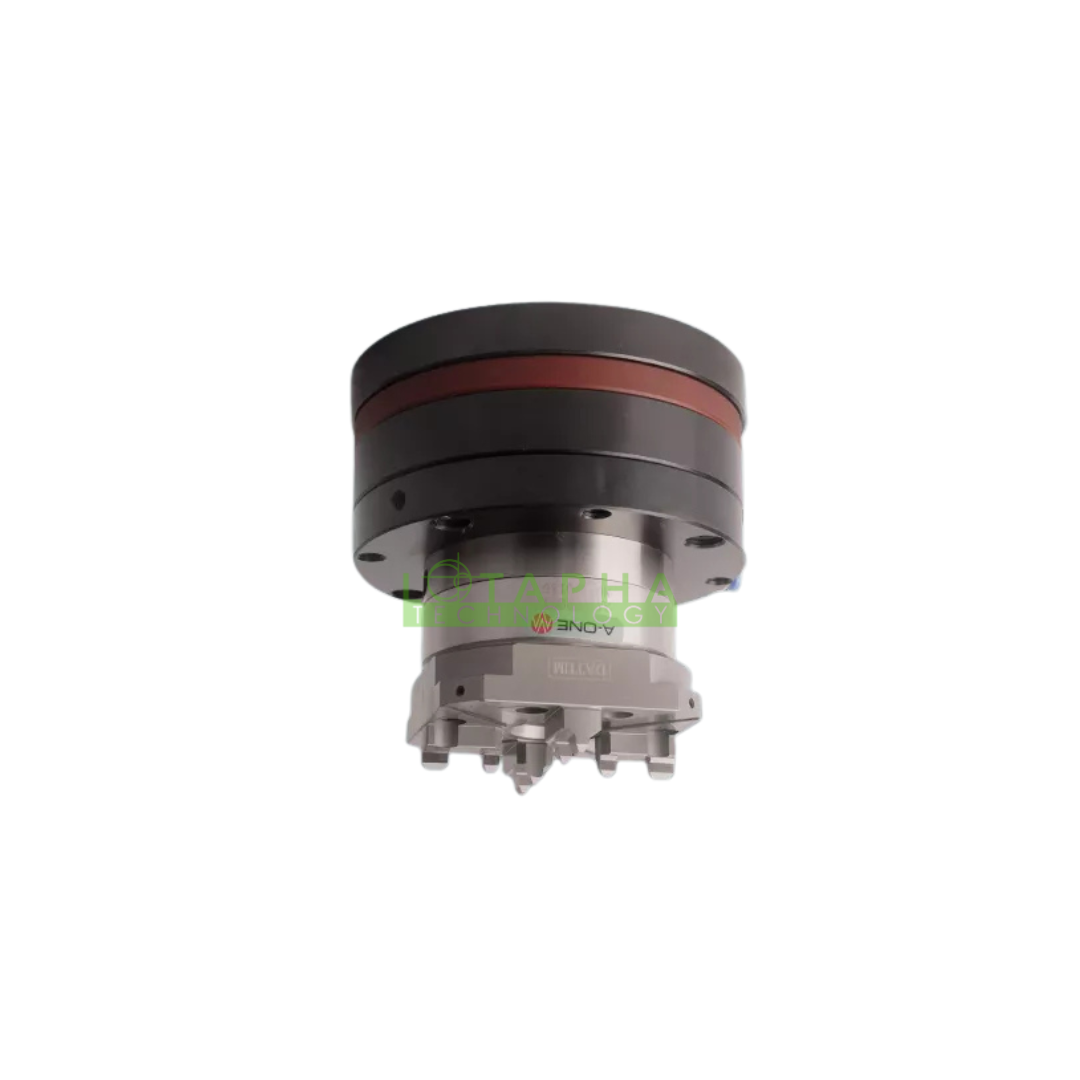

ĐẾ GÁ CHO MÂM CẶP TỰ ĐỘNG | 3A-300016

Mô tả

Chi tiết

Version: To be directly mounted on EDM head.
Application: Customized according to customer's machine. Chuck supplied separately. Choose the chuck according to the table below when ordering.

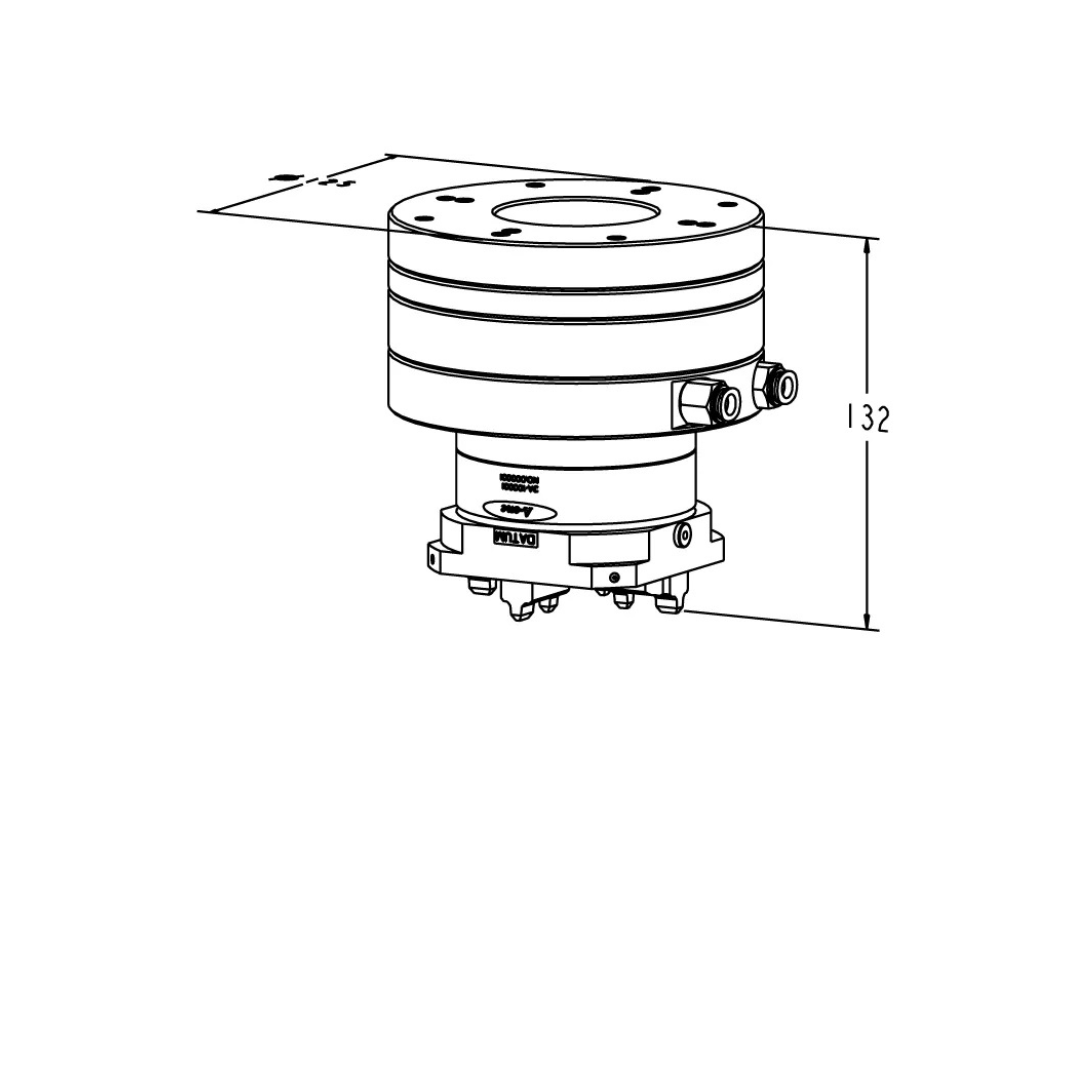

Is customized, refer to drawings and data.
Diameter and number of holes (ɸZ/MZ) on EDM head and their X, Y positions.
Whether insulating plates are needed or not P1, P2, P3.

  Optional chuck         Pneumatic             Manual
E type 3A-100001, 3A-1000901 3A-100003
R type 3a-100061 3A-100903
