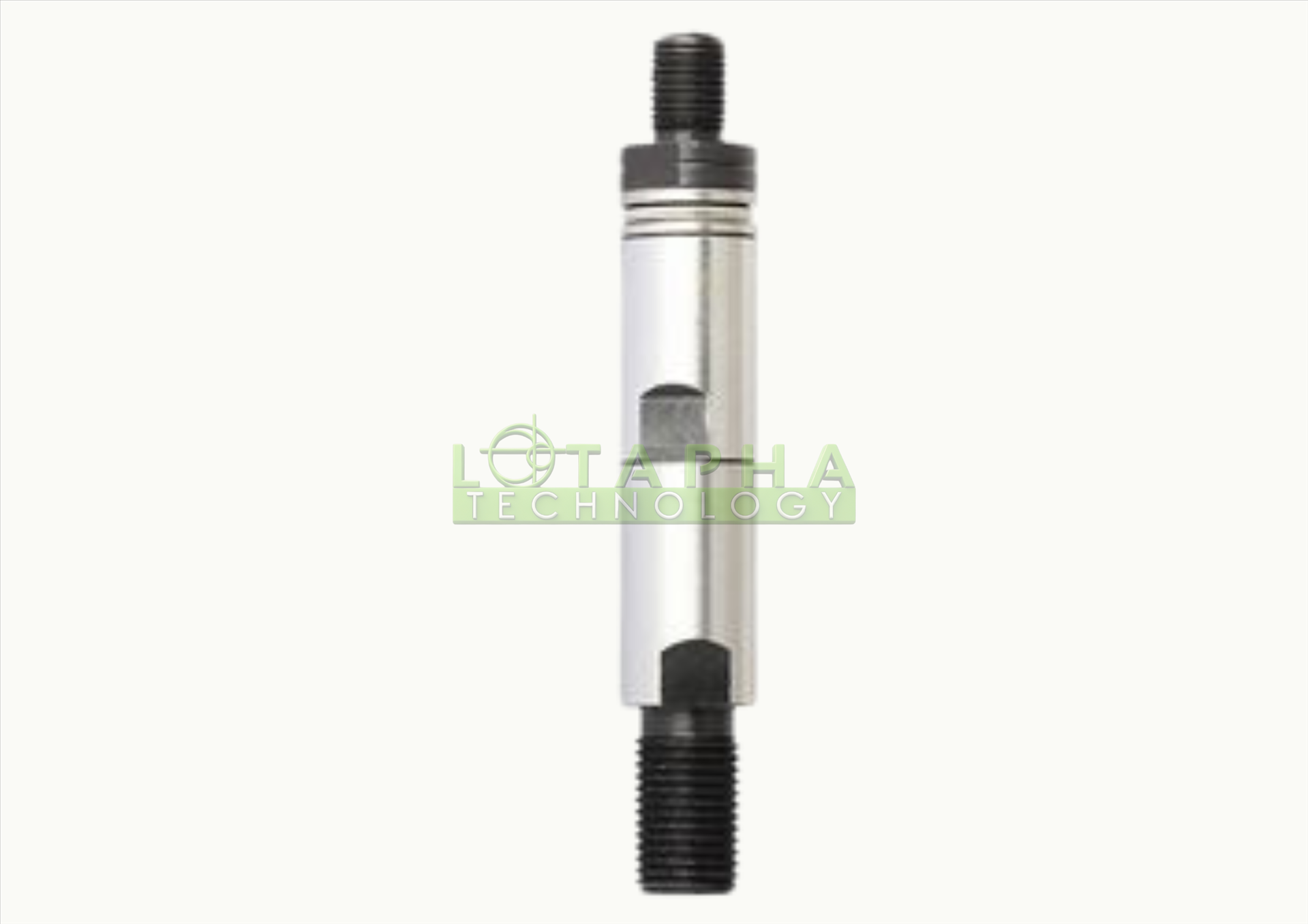

LNS XT320-GT326 CHUCK JOINT

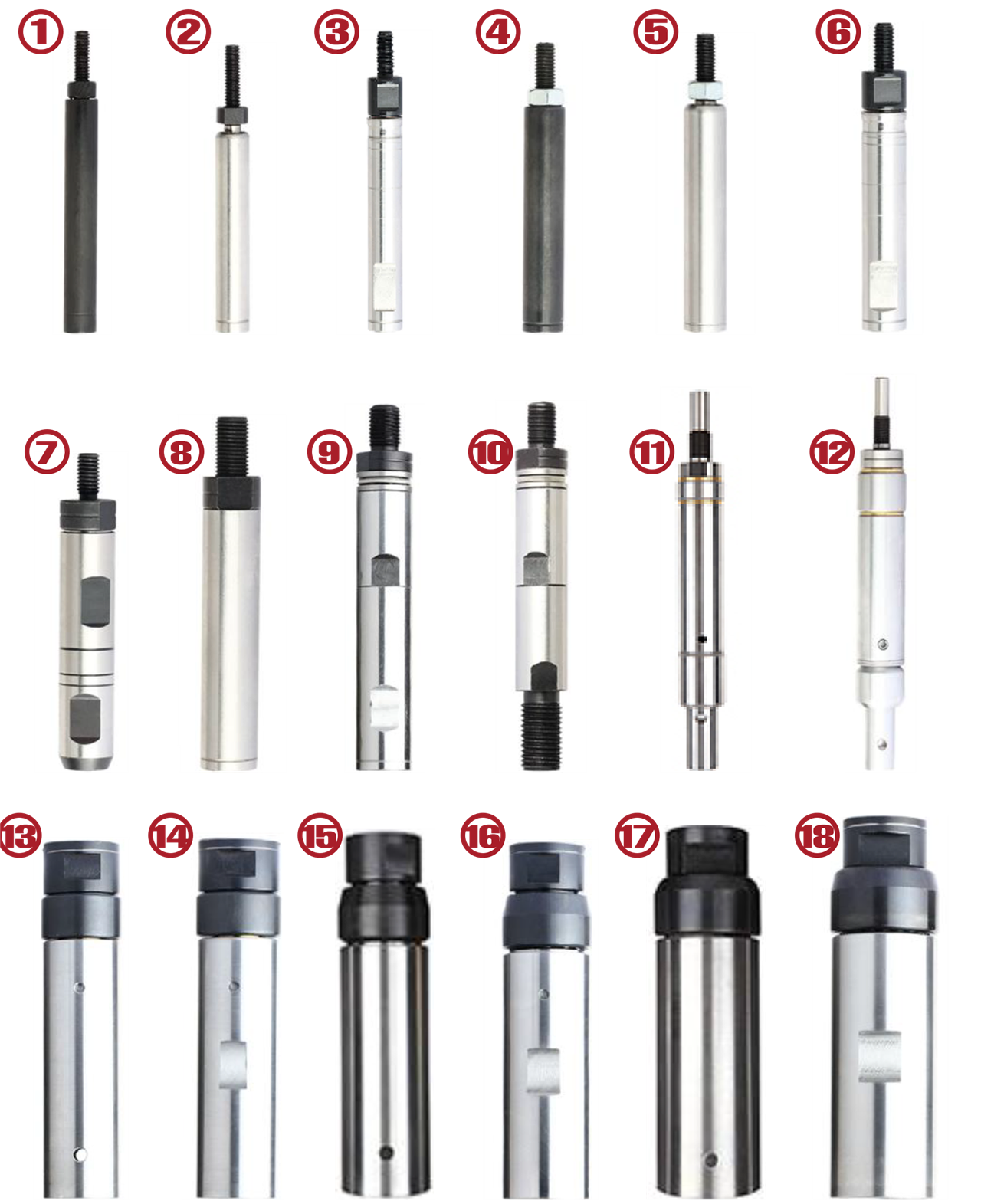

LNS ROTATING JOINT SPECIFICATIONS
STT	LNS No.	MODEL	OD	TOTAL LENGTH	FINGER THREAD	PUSHER THREAD	TYPE
1		7#	7mm	65.3mm	M4P0.7	M6P0.75	1
2		7#	8mm	65.3mm	M4P0.7	M6P0.75	1
3		7#	8mm	61.5mm	M4P0.7	M6P0.75	2
4	FL07850-7#	7#	7mm	57.5mm	M4P0.7	M6P0.75	3
5		7#	8mm	57.5mm	M4P0.7	M6P0.75	3
6		8.5#	9.5mm	59.5mm	M5P0.8	M7P0.75	4
7		8.5#	10mm	59.5mm	M5P0.8	M7P0.75	5
8		8.5#	10mm	61.1mm	M5P0.8	M7P0.75
9	FL07850-8.5#	8.5#	10mm	64.5mm	M5P0.8	M7P0.75	6
10	FL07120	12#	12mm	64.5mm	M5P0.8	M7P0.75	7
11		20#	15mm	92.2mm	M9P1.0	M12P1.0	8
12		20#	15mm	92.2mm	M9P1.0	M12P1.0	9
13	FL15800	20#	15mm	92.2mm	M9P1.0	M12P1.25	10
14		20#	20.5mm	207.5mm	M10P1.0	PIN=4.0mm	11
15		22#	22.5mm	207.5mm	M10P1.0	PIN=4.0mm	11
16		23#	23.5mm	207.5mm	M10P1.0	PIN=4.0mm	11
17	SNF27000	25#	25.5mm	207.5mm	M10P1.0	PIN=5.0mm	12
18	SNF27000	27#	27.5mm	207.5mm	M10P1.0	PIN=5.0mm	12
19		32#	32.5mm	165.0mm	M25P1.5	PIN=5.0mm	13
20		32#	32.5mm	165.0mm	M25P1.5	M27	14
21		35#	35.5mm	165.0mm	M25P1.5	PIN=6.0mm	13
22		35#	35.5mm	165.0mm	M25P1.5	M29	14
23		37#	37.5mm	165.0mm	M25P1.5	PIN=6.0mm	13
24		38#	38.5mm	165.0mm	M25P1.5	PIN=6.0mm	13
25		42#	42.5mm	165.0mm	M25P1.5	PIN=6.0mm	15
26		42#	42.5mm	165.0mm	M25P1.5	M34	16
27		45#	45.5mm	165.0mm	M25P1.5	PIN=6.0mm	15
28		45#	45.5mm	165.0mm	M25P1.5	M38	16
29		51#	51.5mm	165.0mm	M25P1.5	PIN=6.0mm	17
30		51#	51.5mm	165.0mm	M25P1.5	M42	18
