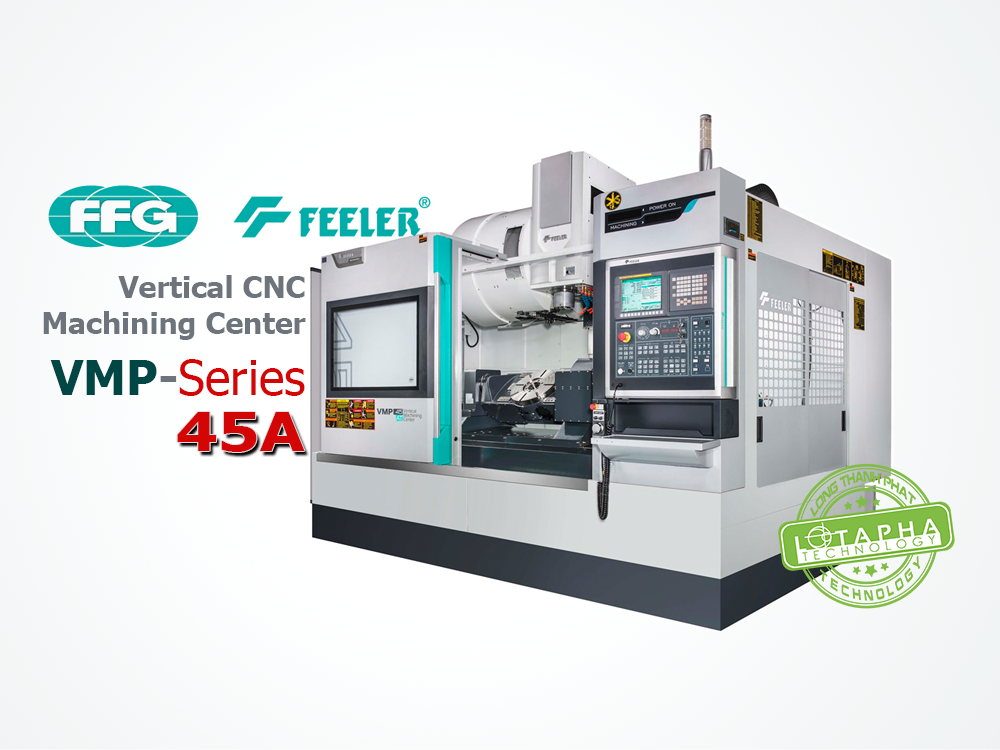

FEELER VMP 45A | Vertical CNC Machining Center

Mô tả

1.The machine structure and major parts are manufactured from Meehanite iron for outstanding material stability and guaranteed long-term deformation-free performance.

2.Servomotor directly drives ballscrew. Ballscrews are pretensioned, enduring rigidity and accuracy required for the feed transmission system.

3.The column bottom is specially deigned with A-shaped structure.

4.Boxways for Z axis are coated with low friction Turcite B, providing increased cutting rigidity.

Chi tiết

   Machine Specifications
X-axis travel 1,100mm
Y-axis travel 610mm
Z-axis travel 600mm
Spindle nose to table surface 137mm-735mm
Spindle center to column surface 660mm
Table surface to floor 960mm
Table center to column surface 355mm-965mm
Spindle speed 10,000rpm(BT40)/4,000rpm(BT50)
Spindle taper 7/24 Taper No.40/7/24 Taper No.50
Spindle power 7.5/11 Kw
X-axis rapid traverse 36m/min
Y-axis rapid traverse 36m/min
Z-axis rapid traverse 24m/min
