Machine Features
FEATURE
HIGH TRANSMISSION PERFORMANCE LINEAR MOTOR
• High transmission performance linear motor with effective servo drive and software control to stabilize the machining feed and get averagely Spark gap voltage for improving the surface roughness to achieve the high speed, high accuracy erosion result.
SUPER PRECISION PROCESSING, MICRO SPARK
• For the super precision processing, micro spark, it can wield small, tiny hole, thin plate and tilt job driven by high speed linear motor Effective flushing by advanced ARC-OFF control function, enhance the high speed machining to upgrade the automation in the production line
FUNCTION INTERFACE
• Friendly conversation window available. Suitable working conditions easily and quickly come up by just input electrode and work piece material, sparking current and desired surface roughness.
• Working depth will be automatically adjusted by controller after changing sparking depth for ideal working condition
• Unique CHMER E code function to achieve 3 axis simultaneous machining without complicated GM codes
• Different E codes available for different working applications
• Friendly E code illustration for operator to understand E-code machining before and during the processing.
MECHANISM FEATURE
• The world leading technology to adopt the sefl-manufacturing linear motor on the developed dis sinker.
• Spindle Ram Z-axis with optimized balance cylinder and brake lock up when stops. This is for a rapid travel movement and accurate positioning; also we developed a gas refilling and recovery device for energy saving and emission reductin.
Machine Specifications
| Specification |
| Model |
Unit |
D322CL |
D433CL |
| WORK TABLE SIZE(WXD) |
mm |
500X350 |
650X400 |
| WORK TANK SIZE(WXDXH) |
mm |
770x500x300 |
900X600X300 |
| WORK PIECE SIZE(WXDXH) |
mm |
720x450x190 |
850X550X250 |
| Table travel (X,Y) |
mm |
300x200 |
400X300 |
| Table travel (Z) |
mm |
250 |
300 |
| X,Y,Z AXIS DRIVE |
mm |
X,Y AXIS BY AC SERVO MOTOR,Z AXIS BY LINEAR MOTOR |
| DISTANCE FROM RAM PLATEN TO WORK TABLE |
mm |
250-550 |
| MAX.ELECTRODE WEIGHT |
kgs |
20 |
30 |
| MAX.WORK-PIECE WEIGHT |
kgs |
300 |
350 |
| Outside dimensions (WxDxH) |
mm |
1040X1470X200 |

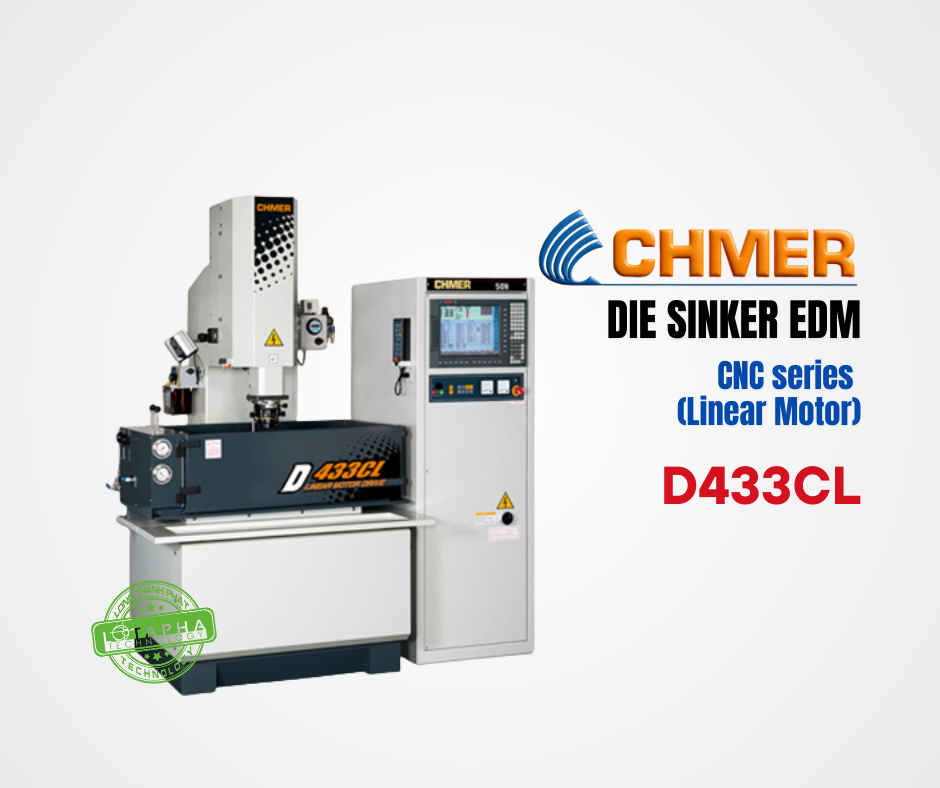

1260X2025X2315 |
| Net weight |
kgs |
1000 |
1400 |
| PNEUMATIC REQUIREMENT |
kgf/cm2 |
6 |
6 |
| FOR DIELECTRIC TANK |
-- |
D322L |
D433L |
| Power Supply |
| Model |
Unit |
50N |
75N |
| MAX.MACHINING CURRENT |
A |
50 |
75 |
| MAX.POWER INPUT |
KVA |
4 |
5 |
| ELECTRODE WEAR RATE |
% |
0.2 |
0.2 |
| Best surface roughness |
μm/Ra |
0.25 |
0.25 |
| Outside dimensions (WxDxH) |
mm |
620x850x1860 |
620x850x1860 |
| Weight |
kgs |
180 |
220 |
| Dielectric |
| Model |
Unit |
D322L |
D433L |
| Volume |
L |
280 |
320 |
| FILTER |
method |
PAPER FILTER |
PAPER FILTER |
| POWER |
HP |
0.5 |
0.5 |
| Weight |
kgs |
80 |
| Outside dimensions (WxDxH) |
mm |
1400x800x430 |
