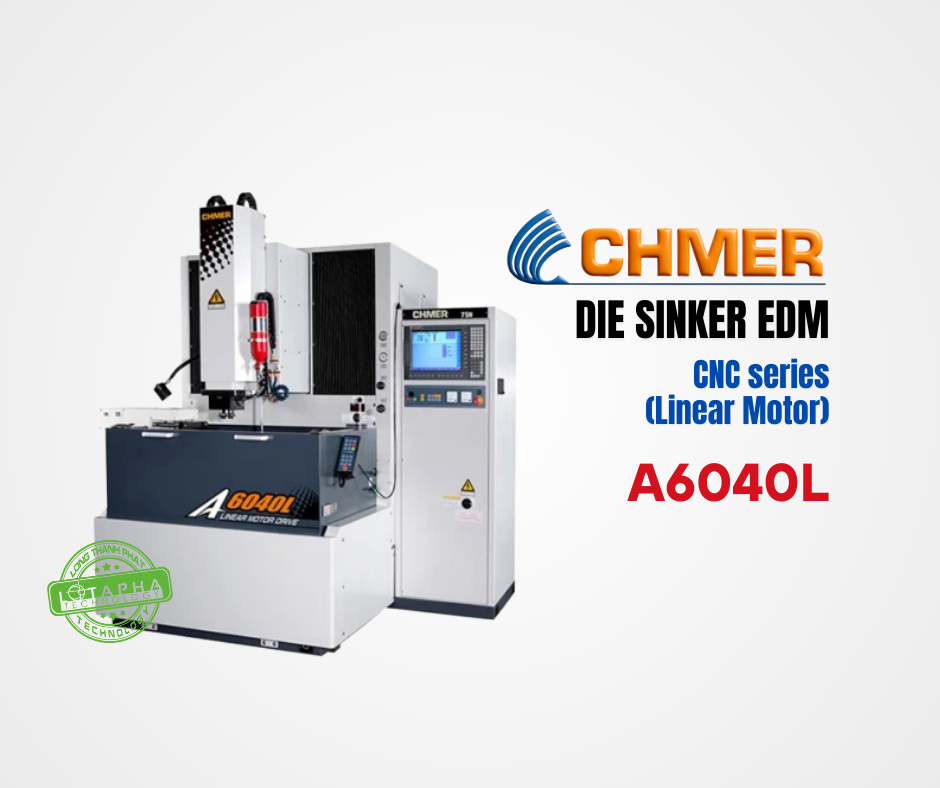

Machine Features
FEATURE
Compact Floor Layout
All-in-one design to save occupied space by 10%
X, Y, Z Axis Linear Drive
Hight rigid column moving structure design attached with X, Y, Z axis Linear Motors to gain high speed, backlash-free, high precision machining.
Air Balance Spindle
Cutting speed can be increased up to 4 times and high responsiveness possible by Linear Motor and air balance system. It can have good machining result on tiny and deep hole, also rib job.
User Friendly
Friendly conversation window is available. Suitable working condition easily and quickly come up by just select the type of E-code.
High Speed+Energy Saving
Revolutionary Energy Saving HSC and ESC. Machining speed is enhanced by over 30% under identical low wear rate through controllable discharge wave.
Machine Specifications
| Specification |
| Model |
Unit |
A5030L |
A6040L |
| Work Table Size (WxD) |
mm |
650x400 |
800x500 |
| Work Tank Size (WxDxH) |
mm |
1100x640x400 |
1200x740x450 |
| Max. Job Load Size (WxDxH) |
mm |
850x550x300 |
1050x700x300 |
| Table Travel (X,Y) |
mm |
500x350 |
600x400 |
| Table Travel (Z) |
mm |
300 |
350 |
| X,Y,Z Axis Drive |
mm |
X,Y,Z Axis By Linear Motor |
| Distance from Ram platen to work table |
mm |
300~600 |
| Max. Electrode Weight |
kg |
30 |
50 |
| Max. Work-piece Weight |
kg |
1000 |
1500 |
| Outside Dimensions (WxDxH) |
mm |
1860x1650x2220 |
2100x2150x2260 |
| Net Weight |
kg |
2230 |
3000 |
| Pneumatic Requirement |
kgf/cm2 |
6 |
6 |
| For Dielectric Tank |
-- |
DA53 |
DA64 |
| Power Supply |
| Model |
Unit |
50N |
75N |
| Max. Machining Current |
A |
50 |
75 |
| Max. Power Input |
KVA |
5 |
6 |
| Electrode Wear Rate |
% |
0.2 |
0.2 |
| Bset Surface Roughness |
μm/Ra |
0.25 |
0.25 |
| Outside Dimensions (WxDxH) |
mm |
Built in |
Built in |
| Weight |
kg |
Built in |
Built in |
| Dielectric |
| Model |
Unit |
DA53 |
DA64 |
| Volume |
L |
480 |
635 |
| Filter |
method |
Paper Filter |
Paper Filter |
| Power |
HP |
0.5 |
0.5 |
| Weight |
kg |
Built in |
| Outside Dimensions |
mm |
Built in |
