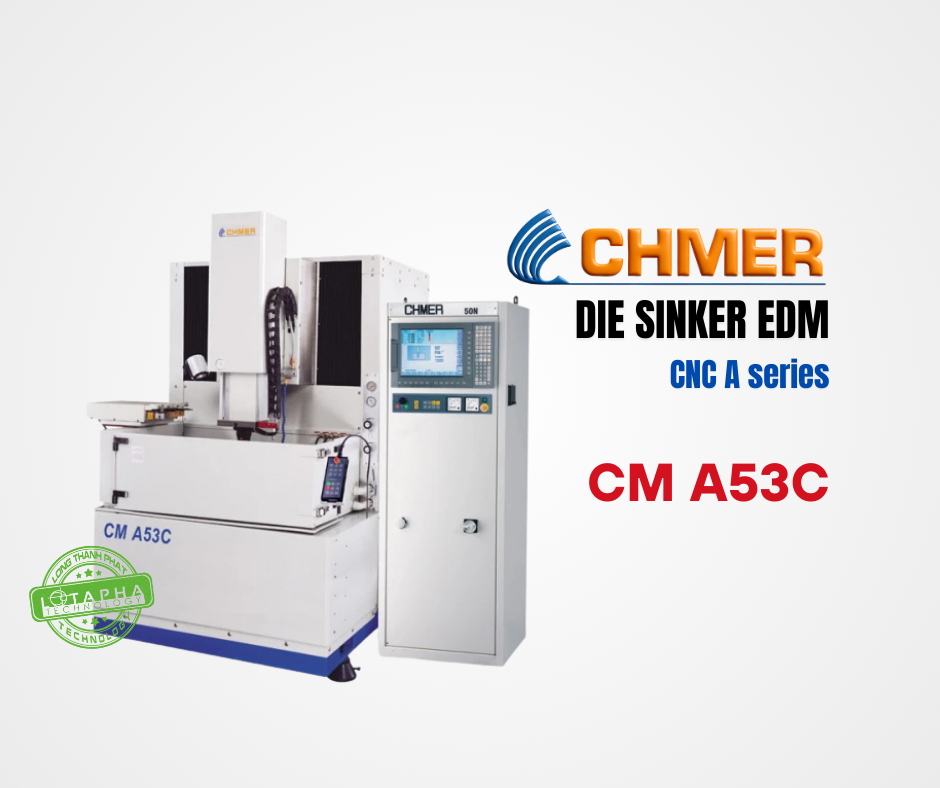

CHMER | CNC.A - SERIES | MÁY XUNG ĐIỆN EDM

Mô tả


• Pass muster with CE conformity, ideal bridge design (column move) can bear heavy duty workpiece above on the compact basement.
• Linear glass scale with close-loop control system for consistent precision over time.
• Friendly dialogue PC BASED CNC controller for easy operation.
• Intelligent CNC editing, working program is made automatically after inputting electrode and workpiece materials and size of electrode. Prevent arcing from finish machining, a better solution with APC protection circuit.



Chi tiết


1. Features
     1.1 Features
     1.2 User friendly interface function
     1.3 S-code function

     1.4 Auto edit function
     1.5 E-code function
2. Specifications
     2.1 CM A43C
     2.2 CM A53C
     2.3 CM A64C
3. Accessories
4. Product media

Machine Features

FEATURES
• Rigid and stable casting construction.
• Dialogue box operating system.
• High precision ball screws on X. Y. Z
• Linear guideways X. Y. Z
• DC-Arc proof circuit (APC)

USER FRIENDLY INTERFACE FUNCTION
• Erosion data On-Time (TON:0.5-24004 s) and Of-Time (0.5-24004 s) fine tuning (0.54 s, 14 s, 2 u 5,54 5,104 s), for coping with special alloy machining.
• Closed-loop linear scales feedback on X, Y and Z axes for precise positioning and cutting accuracy.
• Optional C-Axis and ATC (3R or Erowa) enables fully automated machining from rough erosion to fine finishing.
• Dialog programming helps with selecting optimum machining conditions based on electrode size and material, work piece type, depth of erosion and target surface finish.
• E-codes (canned cycles) commonly used as: side machining, square, vectoring, and circular orbiting, tapering, etc., substituting the complicated G-code programming.
• Automatic edge, center find, and Z reference location find.
• 3-axis linear, 2-axis arc, 3-axis spiral and 4-axis contouring offset movement.
• 15" TFT with graphics, 3 1/2" FDD, RS232, Ethernet.
• Sub-routine programming.
• Automatic programming for depth of skimming discharge to maximum 999 blocks.
• 99 sets of working parameters available from database operator changeable.
• Logic ARC-OFF and APC effectively prevent DC-Arcing from damaging your parts.

S CODE FUNCTION
• Built-in working conditions applicable for different workpieces and electrodes for most efficient machining.
• 1000 sets of working conditions edition and memory storage. It's convenient to call spark data during processing.
• Working conditions can be changed and saved in memory during processing.

AUTO EDIT FUNCTION
• Friendly conversation window available. Suitable working conditions easily and quickly come up by just input electrode and work piece material, sparking current and desired surface roughness.
• Working depth will be automatically adjusted by controller after changing sparking depth for ideal working condition.

E CODE FUNCTION
• Unique CHMER E code function to achieve 3 axis simultaneous machining without complicated G M codes.
• Different E codes available for different working applications.
• Friendly E code illustration for operator to understand E code machining before and during the processing.

Machine Specifications

Specifications
Model Unit CM A43C CM A53C CM A64C
Table size (WxD) mm 650x400 800x500
Work tank size (WxDxH) mm 1100x640x400 1350x740x450
Table trave (X,Y) mm 400x300 500x350 600x400
Ram travel (Z1) mm 300 350 350
Distance from RAM platen to work table mm 320~620/12.5~24.4 300~650/11.8~25.6 300~650/11.8~25.6
Max. electrode weight kg 60 100 100
Max. workpiece weight kg 1000 1500
Outside dimensions mm 1910x1800x2280 2185x1950x2370
Weight kg 2150 2230 3000
For Dielectric - DA43 DA53 DA64
Power Supply
Model Unit 50N 75N
Max. machining current A 50 75
Max. power input KVA 4 5
Electrode wear rate % 0.2
Best surface roughness μm/Ra 0.25
Outside dimensions mm Built in
Weight kg Built in
Dielectric
Model Unit DA43 DA53 DA64
Volume L 480 480 850
Filter method Paper filter
Pump Power HPxset 0.5 0.5 x 2
Weight kg Buit in
Outside dimensions mm Buit in

Standard / Option Accessories

Standard/Optional Accessories
Item QTY CM A43C CM A53C CM A64C
Paper Filter x1SET 1 SET
Clamping Kit x1SET 1 SET
Tool Box x1SET 1 SET
Flushing nozzle  2 SET
Machine stand  1 SET
Drill Chuck  1 SET
Electrode holder 1 SET
Halogen work lamp 1 SET
Fire extinguisher
Magnetic base
Tool changer
C axis
CE conformity
